ATR Mechanical Overview | Wheeled Robots
Wheeled ATR

SB (Single Bearing) and SB Enclosed ATR Support

Overview

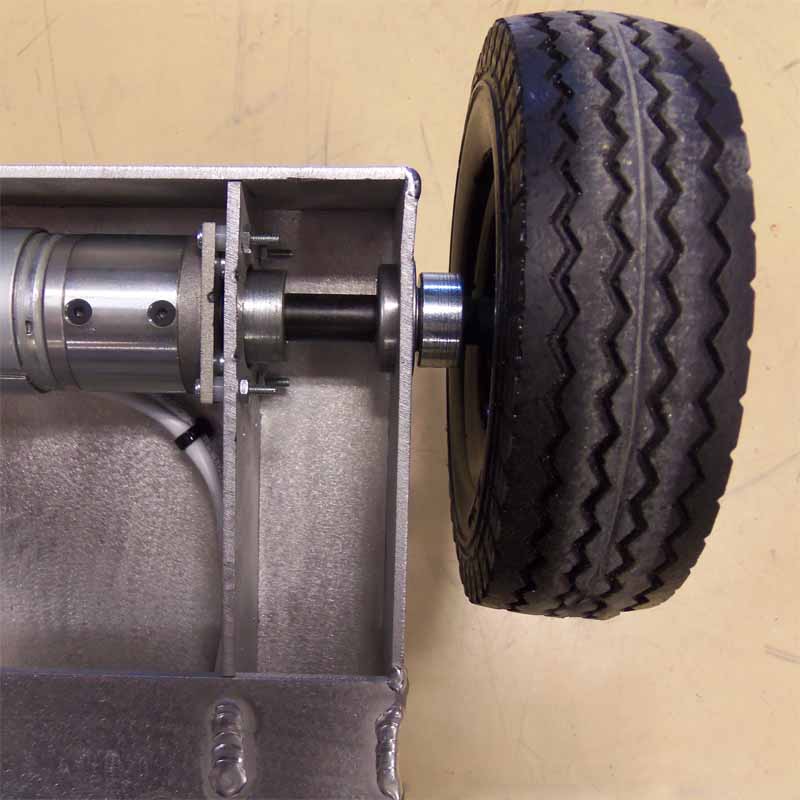

These robots are our medium duty platforms that are supported at each axle by one sealed ball bearing. This takes most of the load off of the motor shafts and puts it on the chassis allowing the robot to carry more weight than if the axle was directly mounted to the motor. See the chart below for approximate maximum loading. These robots work on any indoor surface and most outdoor surfaces. Below are the links to different parts you can add onto the robot platform to customize it to your needs.

Keep in mind when building this kit, that the wheels protrude past the front part of the chassis and with enough power, the robot will climb a wall. This gives it he ability to climb curbs and rough terrain, however if the obstacle is high enough the robot will likely flip over. So you want to make sure you have all your components on the top protected and secured for such an event.

SDR Wheeled Robot Categories
Wheel/Axle
Mount Method
IG32
(32mm Motors)
IG42
(42mm Motors)
IG52
(52mm Motors)
DM (Direct Mount) 10 lbs. - -
SB (Single Bearing) 75 lbs. 100 lbs. 125 lbs.
DB (Dual Bearings) - 200 lbs. 250 lbs.
*This is the maximum weight that the robot can handle. Please note that this weight varies widely upon the robot's configuration and the surface on which it is driven. Read below for more information.

Click on pictures for larger views

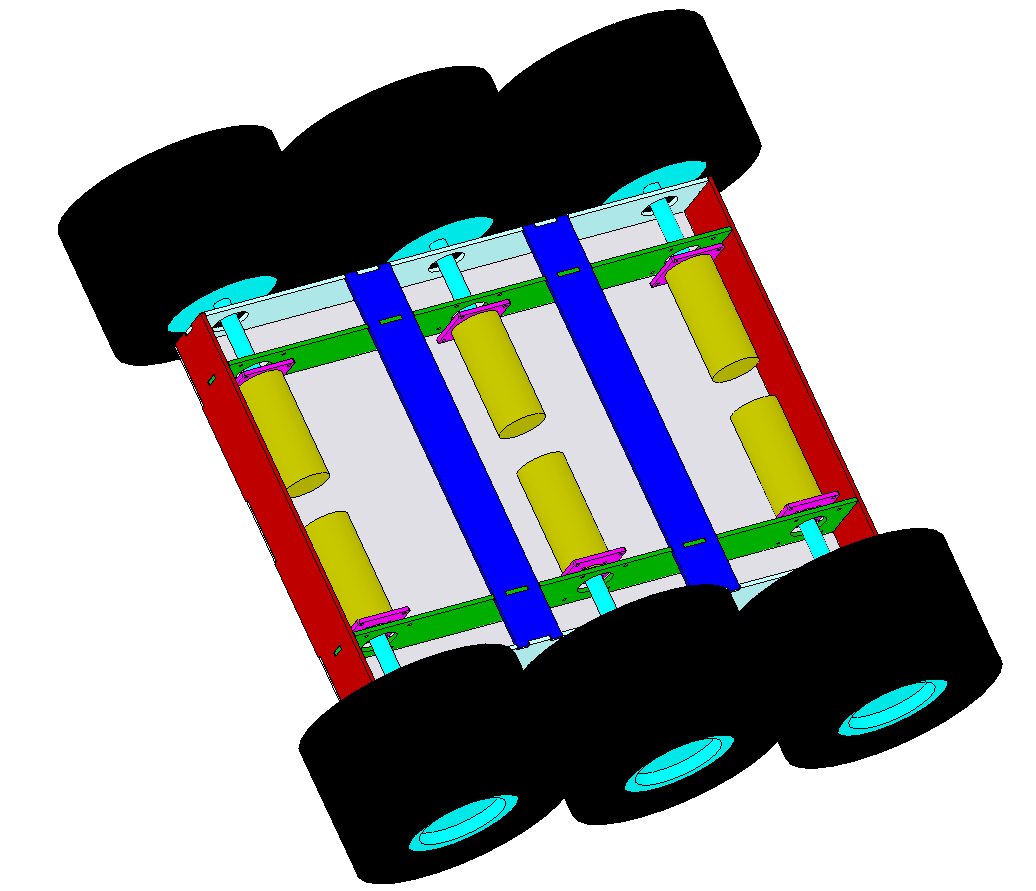

Standard ATR Top Isometric View Bottom Isometric View

View a SolidWorks EDrawing to see a 3D image of the robot. You can manipulate the model and see all the pieces from every orientation. A simple way to see all the views is to hit play and it will automatically rotate the robot around for you so you can see all the views. Please note our models are done to a level of completion to get the parts made and metal cut.

Back to Top

Platforms

We offer several different platforms of ATR SBs. One for the IG32 motors, another for the IG42 motors. The same chassis is used for 4WD or 6WD, on the 4WD version, the middle wheels are just omitted and can be added later. The platform made of .125" aluminum, which we cut with our high definition plasma cutter, which is welded together for a solid chassis.

The platform for the 32mm motors is 12.25" wide x 17.25" long. The sides are 2.125" high (bottom edge to top surface). Note, these dimensions do not include weld filler, which adds a little to the overall dimensions. With the 6.75" tires it has a ground clearance of about 2 5/16". The width with the wheels is about 23" and the length is about 21.5". The overall height is just the wheel diameter of 6.75". The aluminum platform weighs about 5.4 lbs with no wheels, motors, batteries, etc. The platform for the 42mm motors is 14.25" wide x 17.25" long. The sides are 2.125" high (bottom edge to top surface). Note, these dimensions do not include weld filler, which adds a little to the overall dimensions. With the 6.75" tires it has a ground clearance of about 2 5/16". The width with the wheels is about 23" and the length is about 21.5". The overall height is just the wheel diameter of 6.75". The aluminum platform weighs about 5.4 lbs with no wheels, motors, batteries, etc. The weights of the wheels and shafts are as follows: The weights are for one set - 2 wheels, axles, bearings, and hardware.? The ATR wheels are sold in sets, the Omni-wheels are sold individually. The weighs are in sets of 2 for easier comparison.? 2 sets would be required for 4WD and 3 sets for 6WD.

The weights of the batteries are listed on the battery item pages. The weights of the motors are listed on the main motor category page. There will also be some minor weight for the hardware, wires, and electronics.

Back to Top

Motors and Motor Mounts

Many different motor sizes are available for this kit. The IG32P sized motor is recommended for most applications and will drive the robot over any indoor surface and most outdoor surfaces. The IG32 motors will work fine too depending on how much weight you plan on stacking on the robot (if >10 lbs the medium or larger motors should be used). The larger IG42 motors are overkill for indoor stuff, but can be used if you want ultimate power. If you want to climb hills and curbs you should use the large IG42 motors.

We now carry many different gear motors, these are our standard items.

Back to Top

Wheels and Drive Shafts

The ATR wheels and shafts are sold together as one unit and are sold in sets of two. The shaft comes with one bearing and two lock collars, one to secure the axles to the motors and the other to secure the bearing to the chassis. We offer many different types of wheels including 6" solid core tires, 10" pneumatic tires, and many types of omni and mecanum wheels that allow the robot drive on just about any terrain. To turn, the robot uses "skid steering" which means that the motors are turned at different speeds or in different directions. For example, to turn left, the left two wheels will be turned slower than the right two wheels which will let the robot skid to the left. To make a "pivot turn" or a turn in place the wheels are driven in opposite directions which makes the robot spin. Since the wheels have to overcome friction to skid, the robot will perform differently depending on the surface on which it is driven and the components selected. If the robot is heavy and/or driven on a high-friction surface such as carpet, lower RPM motors should be used since they offer more torque. If you are ordering ATR wheels, you only need 2 sets (for a total of 4 wheels and shafts) for a typical 4WD assembly.

Another option is to use omni wheels, which are comprised of rollers that eliminate any skidding during turning. These wheels are the best option for high friction, flat surfaces. The Omni wheels and shafts are also sold together as one unit. The shaft comes with a bearing and lock collar that fit right into/onto the motors and motor mounts. The wheels are 4" in diameter. The traction wheels are made of durable urethane to help grip the floor. These wheels also work outdoors. The wheels are either single row wheels or double row wheels. The double row wheels provide a little smoother operation, but both work great. One thing to note with the omni wheels is if you run sideways to a hill, the wheels will side slip down the hill, but if the robot angles up the hill slightly it can overcome this. If you are ordering omni wheels, you will need 4 individual shaft and wheel sets for a 4WD robot.

Back to Top

Hardware

The final item you need to make you kit complete is a hardware package.

It includes nuts, bolts washers, nylon spacers (for isolating your electronics and controller boards), cable ties, and cable hold downs.

Back to Top

Chain Coupling

One option that is available with the SB ATR is the coupling of the front and rear axles on each side of the robot. In the standard configuration, the left two motors are wired together as are the right two. While driving on rough terrain, turning, etc., if one wheel stalls or starts to spin, the adjacent motor has to do all the work. When the axles are coupled together it provides power from both motors. We use #25 chain and the same size sprockets to couple the axles along with a UHMW block for chain tensioning (see image below).

Back to Top

Picture Gallery


Click on the images above for more detail
