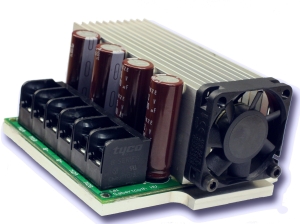

Sabertooth Dual 50A HV Motor Driver Sabertooth Dual 50A HV Motor Driver

The Sabertooth 2X50HV is one of the most versatile, efficient and easy to use dual motor drivers on the market. It is suitable for high powered robots - up to 120lbs in combat or 500lbs for general purpose robotics.
More Detail

Item# TE-091-250
$249.99
In Stock

Item Detail  Item Detail
Name:
MD03 Devantech 20A Motor Driver
Item#:
TE-036-000
Price/ea.
 $136.00
In Stock
 QTY:
MD03 Devantech 20A Motor Driver

The MD03 by Devantech is a robust medium power motor driver.  The driver is designed to supply power for one motor.  It features several control modes. Its physical size is 110mm x 52mm x 25mm.

As supplied it can handle 20A current capacity for 5V to 24V motors and up to 290Amps in very brief repetitive pulses.

For help selecting and wiring a motor speed controller, see our motor controller support page.

Control of the module can be any of the following:

  • I2C bus, up to 8 MD22 modules, switch selectable addresses and 4 modes of operation including steering.
  • 0v-2.5v-5v analog input. 0v full reverse, 2.5v center stop, 5v full forward.
  • RC mode. Motor is controlled directly from the RC receiver output.

For Further Details see our MD03 product support page.
