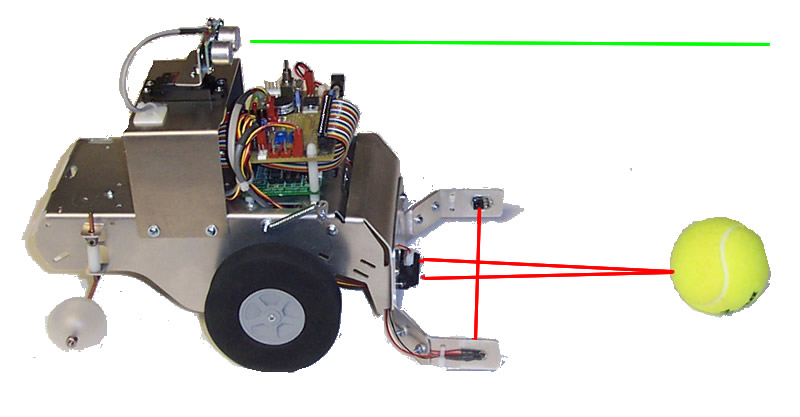

Trekker Ball Fetcher Trekker Ball Fetcher

This Robot Kit will seek out a ball, drive towards it and catch it. The kit includes sensors and a LCD.
More Detail

Item# TP-027-000
$366.25
In Stock

Item Detail  Item Detail
Name:
Trekker Soccer Ball Catching Sensor and Brackets
Item#:
TS-022-000
Base Price/ea.
 $19.95
Your Price with options (see below):
 $19.95
In Stock
 QTY:
Trekker Soccer Ball Catching Sensor and Brackets

This package consists of 2 brackets that mount to the front bumper.  The brackets hold a IR photo reflector, which is also included.  The necessary hardware is included along with the receptacle and wire to attach the OOPic II Expansion Board (v2.x and above only).  The plow of the bumper switch is inverted for this feature as shown in the above figure.  The sensor is used to detect if a ball is caught in the catcher.  This kit is generally used in conjunction with a sweeping ultrasonic sensor and an Sharp GPD12 IR sensor mounted to the front bumper.  These sensors are used to locate and track the ball and the ball catching sensor is used to confirm the ball has been caught.

Example code and the ball catcher assembly instructions are included on our Trekker download page.

Click on image for larger view
Autonomous Robot Kits Autonomous Robot Kits Autonomous Robot Kits
Parts Seek/fetch a ball Catch a ball



Includes:
Qty Item
1  18" WIRE SET (2 BLK, 2 RED, 1 YELLOW)
2  CABLE TIE
4  CRIMP TERMINALS
1  HEAT SHRINK, 1/4" X 1"
3  HEAT SHRINK, 1/8" X 3/4"
1  INFRARED IC @ 38.0 KHZ
1  IR LED
1  HEAT SHRINK, 3/32" X 2"
1  RECEPTACLE, 4 CIRCUIT TERMINAL HOUSING
2  ALUMINUM, BRACKET - SOCCER
1  HARDWARE PACKAGE
Options  Options
Assembly of Trekker Ball Catching Sensor include soldering the wires to the sensors, crimping the wires, assembling sensors to the brackets, and testing the sensor.
