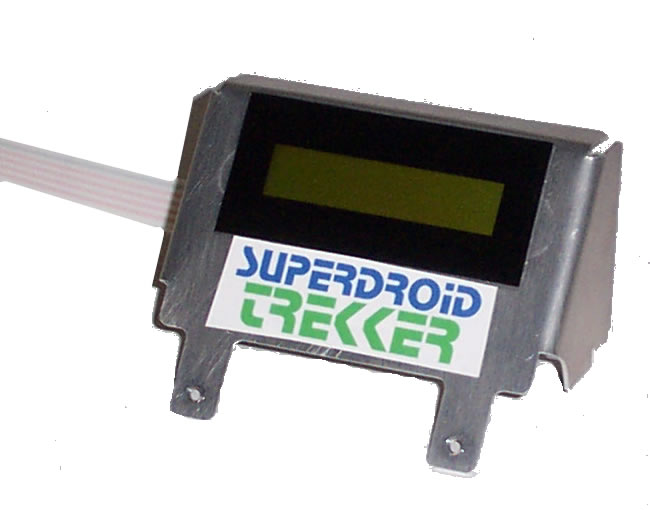

Trekker 2 Line LCD Package Trekker 2 Line LCD Package

The LCD screen is an optional add-on for the SuperDroid Trekker. The LCD is a 2 line x 16 character LCD. The LCD easily interfaces with the OOPic and plugs directly into the OOPic Expansion Boards
More Detail

Item# LCD-001-000
$73.00
In Stock

Item Detail  Item Detail
Name:
2 Line Serial LCD
Item#:
LCD-003-000
Price/ea.
 $45.00
In Stock
 QTY:
2 Line Serial LCD

This is a 2x16 Scott Edwards LCD with Serial Interface.  Click here for the manual and specifications

  • 2400/9600 baud serial input
  • Lowest current draw: 2 - 3mA
  • Simple protocol prints text, passes instructions to LCD
  • Display of choice for BASIC Stamp� applications
  • Interfaces with the OOPic� with oLCDSE object
  • size 80 x 36mm (3.2 x 1.4 in.)
Power requirements 4.8 to 5.5Vdc @ 3mA
User connector 5-pin header; 0.025" posts on 0.10" centers
Connector pinout +5V GND SERIAL GND +5V
Serial Input RS-232 or inverted TTL, 1200-9600, N81
Operating Temperature 0� to 50� C
Initialization switches LCD power; performs soft init
Instruction prefix ASCII 254 (0FE hex)
LCD type Supertwist (STN), yellow-green
Optimum viewing direction 6 o'clock
