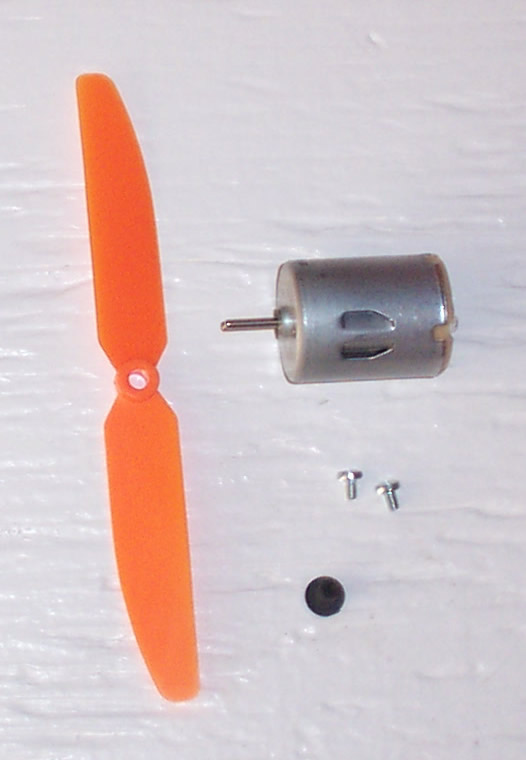

Fire Fighting Fan Fire Fighting Fan

This is a very powerful 7.2V Speed 400 Electric Airplane motor with a 5" propeller that pushes on the motor. A capacitor to put across the motor leads is also included.
More Detail


Item# TD-010-000
$12.95
In Stock
Trekker Fire Fighter Trekker Fire Fighter

This package includes a deluxe flame detector mounted to a sweeping ultrasonic scanner. It will determine if a flame is present and determine its heading. Then put the flame out with a fan. It also includes an encoder package, front bumper, and LCD.
More Detail


Item# TP-026-000
$617.05
In Stock

Item Detail  Item Detail
Name:
Trekker Fire Fighting Fan Kit
Item#:
TD-011-000
Base Price/ea.
$59.95
Your Price with options (see below):
$59.95
In Stock
 QTY:
Trekker Fire Fighting Fan Kit

This system enables the Trekker to blow out a flame in fire fighting contests, such as the one at Trinity College.  It will consist of a Bracket, an electric motor with a fan blade, wire, connector to attach to a servo plug on the OOPic II Expansion Board, and a single relay high current driver to switch the fan on from an OOPic TTL output.  It is recommended that you get the 7.2V battery pack to go with this.

Click on image for larger view
Autonomous Robot Kits Autonomous Robot Kits

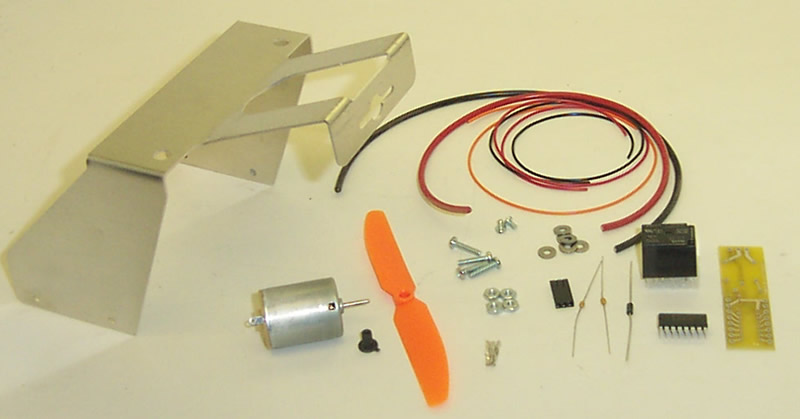

Parts for Fan System Fan System installed on a Trekker

This kit includes the following:

Qty

Item
1 CAPACITOR, 0.1UF
1 MOTOR, 7.2V DC, 280
1 PROPELLER, 5", PUSH ON
1 ALUMINUM, BRACKET - FAN HOLDER
1 PROPELLER INSERTS/FASTENER
3 CRIMP TERMINALS, FEMALE
1 FAN SYS WIRE SET FOR CONTROL AND POWER
1 RECEPTACLE, 3POS
1 7 Channel High Current TTL Driver with 1 Power 5V Relay
Options  Options
Assembly includes soldering all the components together and mounting the fan on the bracket.
