This package takes the intermediate Trekker and adds more scanners and a 2 line LCD. With the dual scanner both IR and Ultrasonics have a 360 viewing angle without having to rotate the Trekker. The LCD allows you to display messages, debug, or state system status.

As with all Trekker Kits with the OOPic II Expansion Card, this one can be expanded later by adding additional sensors, LCDs, etc., which will all plug directly into the OOPic II Expansion Card.

The Robot Kit includes the following:

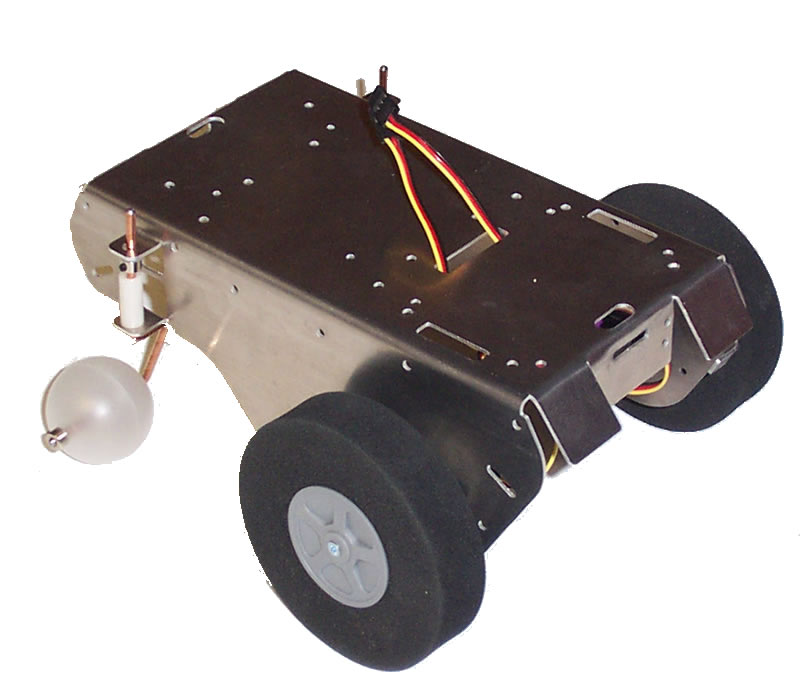

(1) Trekker Chassis - TD-001-000

(1) OOPic II Ready Expansion Card - TE-001-000

(1) Trekker Bumper Switch Package - TS-010-000

(1) Trekker Top Dual Sweeping Scanner Bracket Kit - TS-004-000

(2) Trekker Sweeping SRF04 Ultrasonic & IR Scanner Pkg - TS-007-004

(1) Trekker 2 Line LCD Package - LCD-001-000
(1) 5 pin Ribbon Cable - LCD-007-506

Example code and assembly instructions are included on our Trekker download page. Videos of the Trekker are on our video page.

(Click on the pictures for enlarged clearer view)

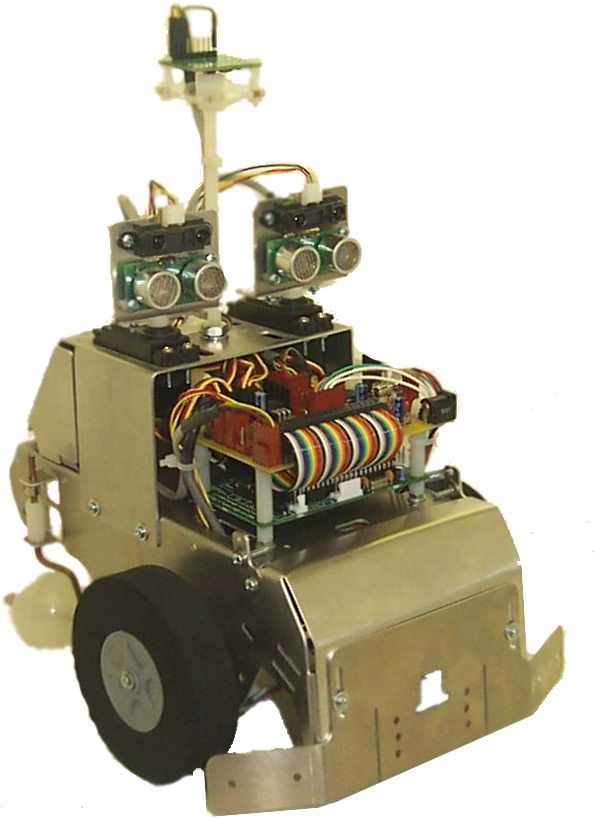

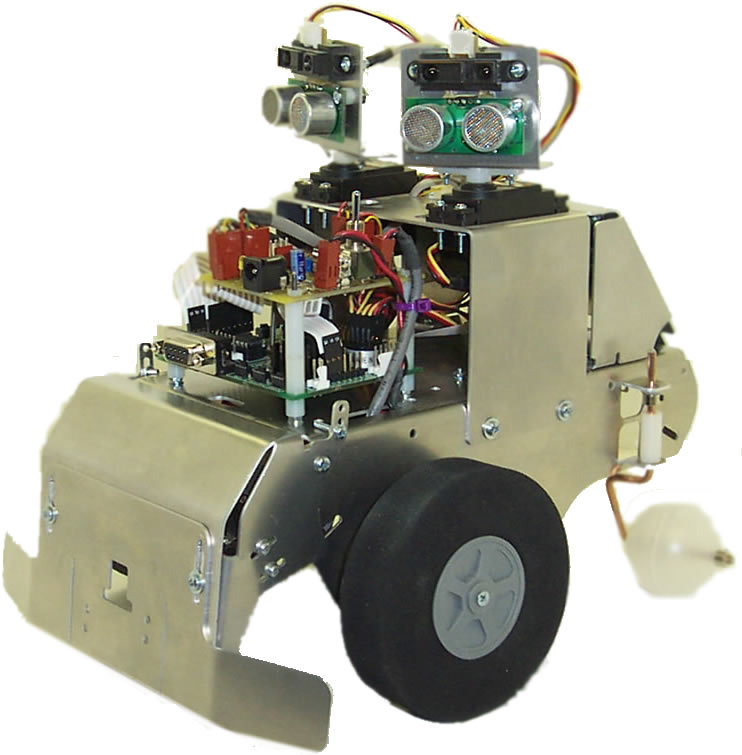

Assembled Advanced Trekker	Assembled Advanced Trekker Back view with optional 4 Line LCD
Assembled Advanced Trekker with enhanced wheels upgrade	Assembled Advanced Trekker with enhanced wheels upgrade

Option Notes:

• As a default no controller is selected.  If you don't have your own OOPic II, II+, III, or III+, select the controller that you want to use in the options.  We offer the OOPic III and III+ for this kit.   If you need the programming cable select a starter package.  See our OOPic Store Category for more details.
• The standard wheels are 3.5" foam wheels with ball casters. The enhanced wheel upgrade replaces the 3.5" wheels with an enhanced wheel set. The ball caster wheels are still included with the upgrade so you can use either rear caster.
• If you select and fully assembled robot kit, you do not need to select modified servos too. Modified servos are part of the assembly. If you select a fully assembled robot kit, it will be completely built, programmed, tested and ready to go out of the box!
