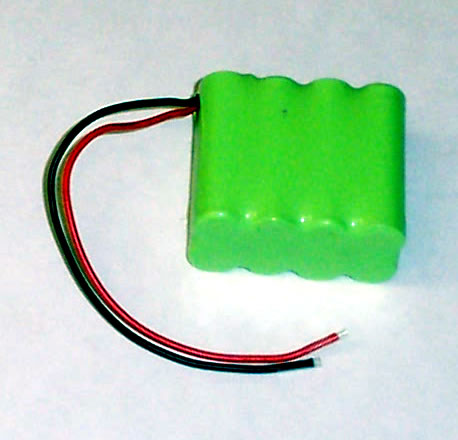

9.6V 1500 mAHr NiMH 2x4 Battery Pack 9.6V 1500 mAHr NiMH 2x4 Battery Pack

This is a 8 cell (9.6VDC) 1500mAhr Rechargeable NiMH battery pack.
More Detail

Item# TE-022-208
$13.90
In Stock

Item Detail  Item Detail
Name:
5V Regulator Board Kit
Item#:
TE-045-005
Base Price/ea.
 $9.90
Your Price with options (see below):
 $9.90
In Stock
 QTY:
5V Regulator Board Kit

This is a regulator board.  It tas a terminal strip with a common ground, input, and 5VDC output.  Includes 1A fuse, filtering capacitors, and power status LED.  Input voltage should be around 7.2VDC-24VDC.

An optional heat sink (as pictured) can be purchased with it too, which is recommended if the load is going to be much greater than 500mA.  The heat sink option includes a machine screw and nut to fasten the heat sink.   If desired you can get better heat transfer with heat sink compound.

We use these in our ATRs to supply a regulated 5V supply from a 9.6V battery to our motor controllers and/or RC receiver.  The board is spaced out on 0.1" or more grid that is easy to solder with no surface mount components.  The board is about 1.25" square.

For Assembly and Operation follow this link.
Options  Options
Select if you want it unassembled or assembled.
If you are going to draw more than 500mA you sould use a heat sink.
