Item Detail  Item Detail
Name:
Standalone 4 Channel DVR System
Item#:
WC-031-000
Price/ea.
 $280.00
$199.00
In Stock
 QTY:

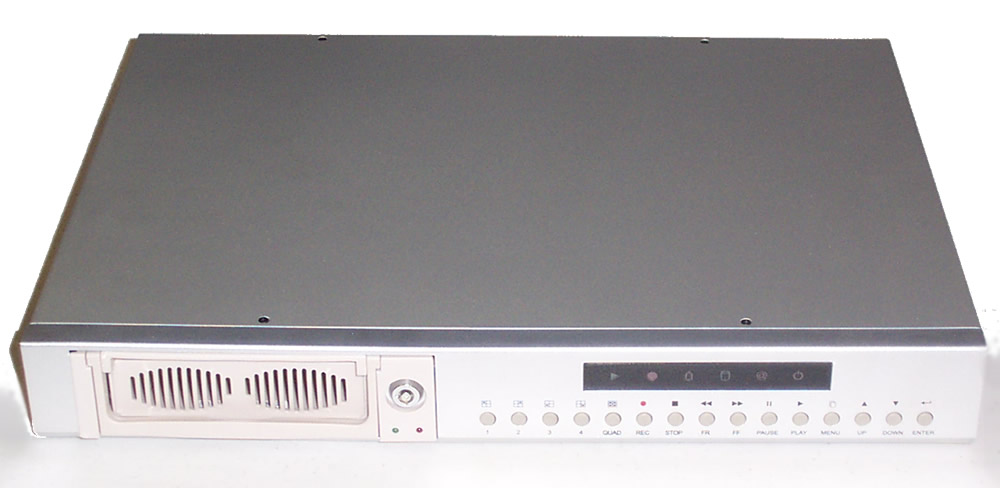

Standalone 4 Channel DVR System

Replace your traditional VCR/multiplexer/Quad combination with our new Digital stand alone DVR, a low-cost, compact, four-channel digital video recorder. The DVR brings all the benefits of digital monitoring to the budget conscious consumer.  We use this DVR to monitor our facility and it works great!   You can download the manual before you buy it here so you can understand all its features.

Main Features

  • Supports quad and multiplexer mode
  • Camera setup individual
  • Real-time display
  • Motion Detection and Alarm
  • Loss of image Alarm
  • Manual/Alarm/Schedule Recording Mode

Technical Specifications:

IMAGE SYSTEM NTSC/PAL
RESOLUTION DISPLAY 720*480/720*576
RECORD 640*244/640*272
VIDEO INPUT BNC*4
VIDEO LOOPING OUTPUT BNC*4
DISPLAY FRAME 4*30FPS Fields/sec or 4*25FPS Fields/sec
RECORDING FRAME RATE QUAD Max 30fps/25fps
RECORDING FRAME RATE MUX Max30/4FPS Max25/4FPS
STORAGE MEDIA Max 2 IDE HDD (not included)
COMPRESS RATE Low: 8k bytes/Fields Medium: 10k bytes/Fields
High: 15k bytes/Fields Best: 20k bytes/Fields
RECORDING MODE Manual/Alarm/Schedule
PLAYBACK SPEED Frame by Frame forward playback fast forwardX2X4X6 Fast Reverse X6
ON SCREEN DISPLAY&SETUP Time/Date/Setup Menu
ALARM INPUT 4-INPUT Programmable
RELAY OUTPUT NO or NC Programmable ContactX1
PASSWORD CONTROL One for HDD
EVENT LIST 63 Event/Each HDD
MOTION DETECTION YES
P/T/Z RS-485
BUZZER YES
VIDEO LOST YES
POWER INPUT 90V-260V INPUT (60/50 Hz)
DIMENSIONS (W*H*D) 420*44*300
WEIGHT 3.5KG
RACK MOUNTABLE EIA 19* 1U
OPERATION TEMPERATURE -10----40'C

Click on images for larger views
Autonomous Robot Kits Autonomous Robot Kits
Quad Parts back of Quad
