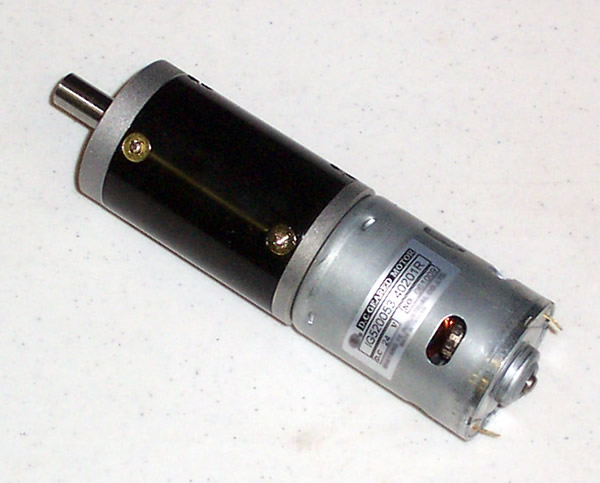

These 24VDC Type 02 52mm diameter gear motors are made with steel gears (not plastic or sintered metal).  They are real stout motors. They weigh about 3.3lbs each. We sampled many other manufactures and the gears would strip or the windings would burn up, we had no failures with these.

We recommend controlling the motors with one of our motor speed controllers. See our motor controller support page for more information. We also recommend you use our wiring kit to wire your motors to control the electronic noise generated from any DC motor. See our motor wiring support page for more information.

The table below lists its characteristics. The datasheet images below show the current and torque curves and the gear motor's dimensions. These motors have a calculated stall torque of >425 kgf-cm! They utilize a 1:676 gear reduction. The gear motor is 24VDC.
