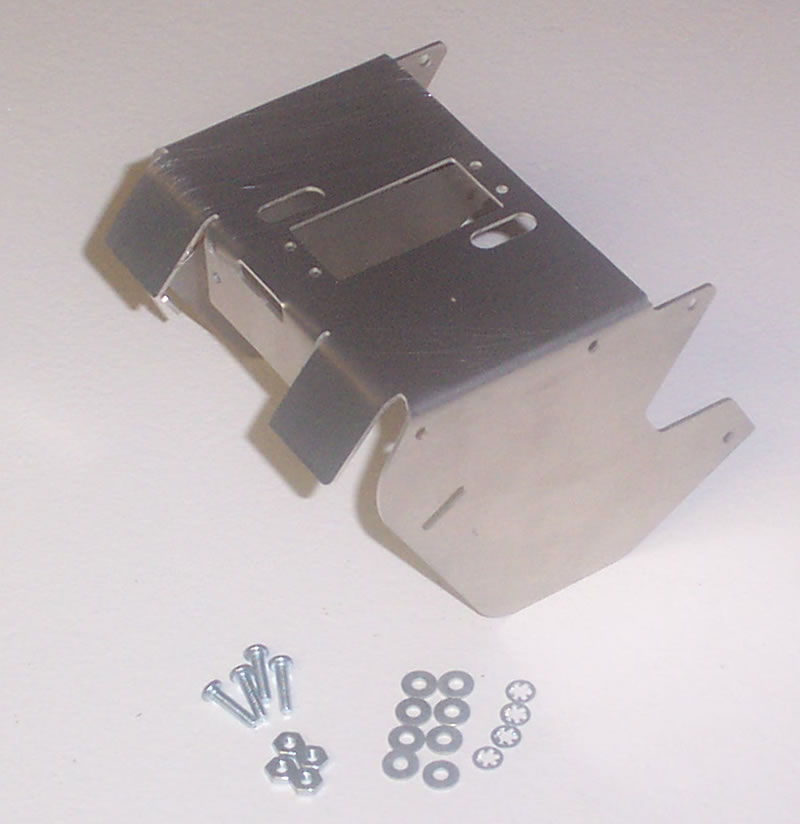

Trekker Single Fwd Sweeping Scanner Bracket Kit Trekker Single Fwd Sweeping Scanner Bracket Kit

This Bracket is to be used to house any of the SuperDroid Trekker sweeping scanners and mounts the front of the Trekker chassis.
More Detail

Item# TS-001-000
$16.50
In Stock
Trekker Sweeping IR Scanner Package Trekker Sweeping IR Scanner Package

Trekker Sweeping IR Scanner Package. The servo can be programmed to scan at any angle from -90 to +90 degrees. This gives the Trekker a set of eyes. The IR detector can detect from 4 inches to 30 inches
More Detail

Item# TS-005-000
$39.95
In Stock

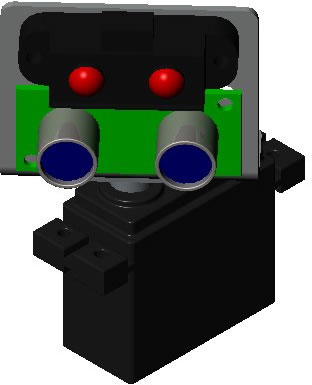

Trekker Sweeping SRF04 Ultrasonic & IR Scanner Pkg Trekker Sweeping SRF04 Ultrasonic & IR Scanner Pkg

SuperDroid Trekker Sweeping Ultrasonic & IR Scanner Package. The servo can be programmed to scan at any angle from -90 to +90 degrees. This gives the Trekker a set of eyes. Both sensors are mounted on a common servo and bracket.
More Detail

Item# TS-007-004
$74.95
In Stock

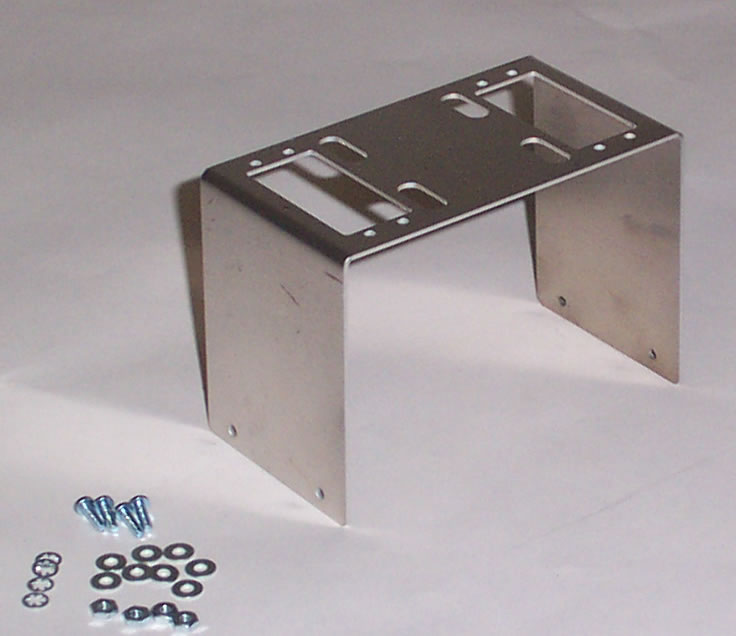

Trekker Top Dual Sweeping Scanner Bracket Kit Trekker Top Dual Sweeping Scanner Bracket Kit

This Bracket is to be used to house any two of the SuperDroid Trekker sweeping scanners and mounts to the top of the Trekker chassis.
More Detail

Item# TS-004-000
$18.50
In Stock

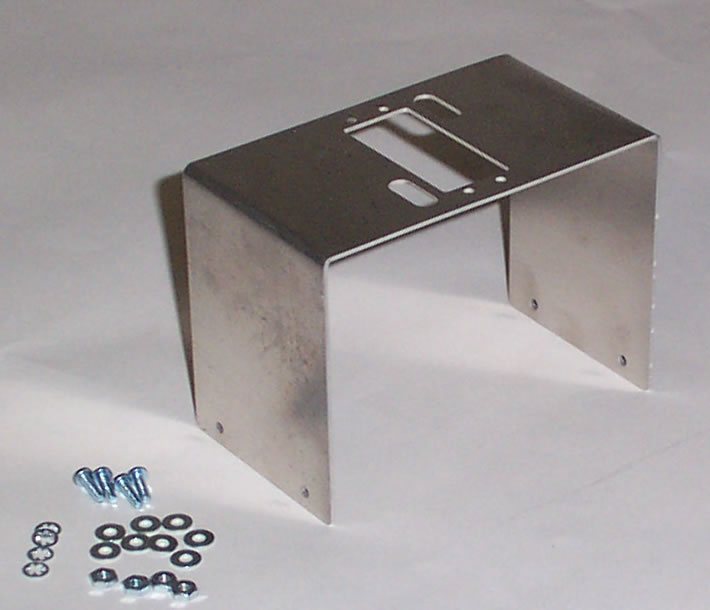

Trekker Top Single Sweeping Scanner Bracket Kit Trekker Top Single Sweeping Scanner Bracket Kit

This Bracket is to be used to house any of the SuperDroid Trekker sweeping scanners and mounts to the top of the Trekker chassis.
More Detail

Item# TS-003-000
$16.50
In Stock

Item Detail  Item Detail
Name:
Trekker Sweeping SRF04 Ultrasonic Scanner Package
Item#:
TS-006-004
Base Price/ea.
 $57.95
Your Price with options (see below):
 $57.95
In Stock
 QTY:

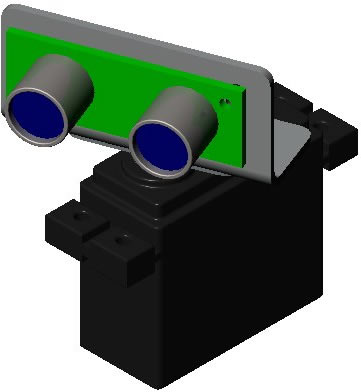

Trekker Sweeping SRF04 Ultrasonic Scanner Package

The Ultrasonic Scanner package is a highly recommended addition to the SuperDroid Trekker or your own personal robot project.  The sweeping Ultrasonic detector is a Devantech SRF04 Ultrasonic ranger mounted to a servo that mounts to the front of the Trekker Chassis with the front scanner bracket. It can also be mounted to the top of the Trekker chassis with the single or dual top scanner bracket.  The servo can be programmed to scan at any angle from �90 to +90 degrees (0 degrees being straight forward).  This gives the Trekker (or your own robot) a set of eyes.  The Ultrasonic detector will detect obstacle and cause the robot to stop, the servo can then look in either direction for a preferred way around the obstacle.

The SRF04 Ultrasonic detector can detect from ~4 inches to ~10 feet.  This sensor package will plug directly into the Trekker OOPic II Expansion Board or the OOPic-R Expansion Board ultrasonic sensor headers.

Click on image for larger view
Autonomous Robot Kits Autonomous Robot Kits Autonomous Robot Kits
CAD Rendering Assembled Loose Parts

Includes:
Qty Item
1  MODIFIED SERVO ARM
4  CRIMP TERMINALS
1  DETECTOR - ULTRASONIC, SRF04 RANGER
2  HEAT SHRINK, 1/4" X 1"
1  SERVO, STANDARD
1  HARDWARE PACKAGE
1  RECEPTACLE, 4 CIRCUIT TERMINAL HOUSING
1  WIRE, 4 CONDUCTOR, STRANDED, ~16" LONG
1 SINGLE SCANNER SERVO ARM BRACKET
Options  Options
Assembly Options for the Sweeping Ultrasonic sensor
