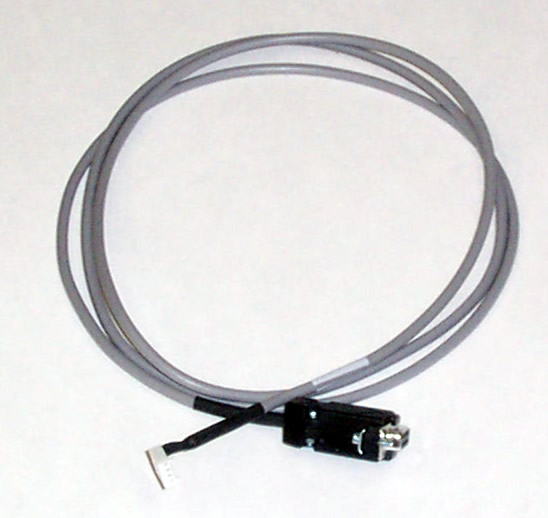

RS232 3-5V TTL Type 1 Serial Converter Cable RS232 3-5V TTL Type 1 Serial Converter Cable

Female RS232 to TTL signal converter serial cable (Tx, Rx, +3V to 5V, GND).
More Detail


Item# MCU-026-172
$29.00
In Stock

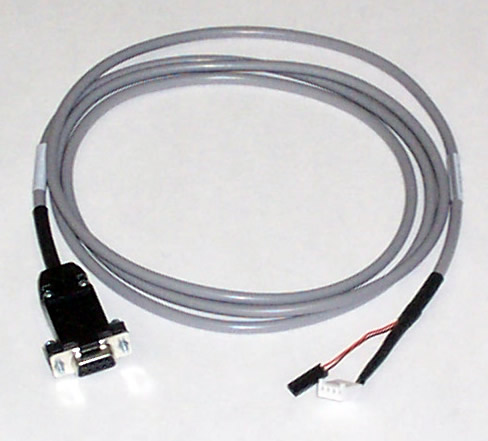

RS232 3-5V TTL Type 3 Serial Converter Cable RS232 3-5V TTL Type 3 Serial Converter Cable

Female RS232 to TTL signal converter serial cable (Tx, Rx, +3V to 5V, GND) with handshaking (CTS, RTS).
More Detail


Item# MCU-026-372
$32.50
In Stock
RS232 5V TTL 72in Type 1 Serial Converter Cable RS232 5V TTL 72in Type 1 Serial Converter Cable

Female RS232 to TTL signal converter serial cable (Tx, Rx, +5, GND).
More Detail


Item# MCU-016-172
$24.50
In Stock

Item Detail  Item Detail
Name:
USB to TTL 72in Serial Converter Cable
Item#:
MCU-036-472
Price/ea.
$34.00
In Stock
 QTY:

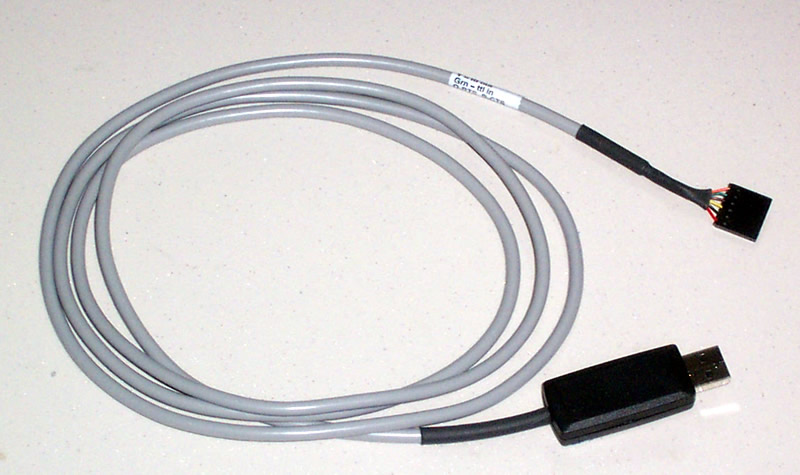

USB to TTL 72in Serial Converter Cable

Our USB to TTL converter provides two way serial communications signal conversion between the TTL (Transistor Transistor Logic) input/output (from an OOPic or other PIC) to and from a personal computer via virtual COM port. The USB cable installs into your PCs USB port and installs as a COM port. Virtual COM port (VCP) drivers cause the USB device to appear as an additional COM port available to the PC. Application software can access the USB device in the same way as it would access a standard COM port. This is ideal for connecting your TTL microcontroller serial communications to the PC. Today�s computers typically do not have RS232 ports on them anymore, this solves that issue by providing you a virtual COM port using the common USB port. The USB end of the cable contains a custom compact circuit board inside the housing.

Easy to install. The drivers can also be downloaded from the FTDI site. http://www.ftdichip.com/Drivers/VCP.htm For first time installs it will install 2 drivers before its ready to operate. You should only need to do this once per PC. Once installed you can remove and reinsert the cable without having to install the drivers each time. Goto to your devise manager to determine what COM port was used. Its typically the next available COM port on your PC.

The wire colors are these cables are NOT the same as our RS232 Cables. Follow this link for a schematic and more detail. All cables are tested prior to shipping.
