Category  Category
Cameras \ Infrared Cameras
... to see category items, click here
These Infrared wireless cameras work in dark areas by emitting IR light to illuminate the area. During normal light situations, the IR lights turn off and the camera transmits a color image.
Cameras \ Wired Cameras
... to see category items, click here
These are wired cameras (ie, the video image is not transmitted wirelessly).
Related Items  Related Items
Multi-Channel 2.4GHz Wireless IR Camera with USB Multi-Channel 2.4GHz Wireless IR Camera with USB

This is a wireless Multi-Channel 2.4 GHz camera with built in transmitter. The package also has RCA cords, battery jacks, transformers, and a USB receiver.
More Detail

Item# WC-040-000
$129.00
In Stock

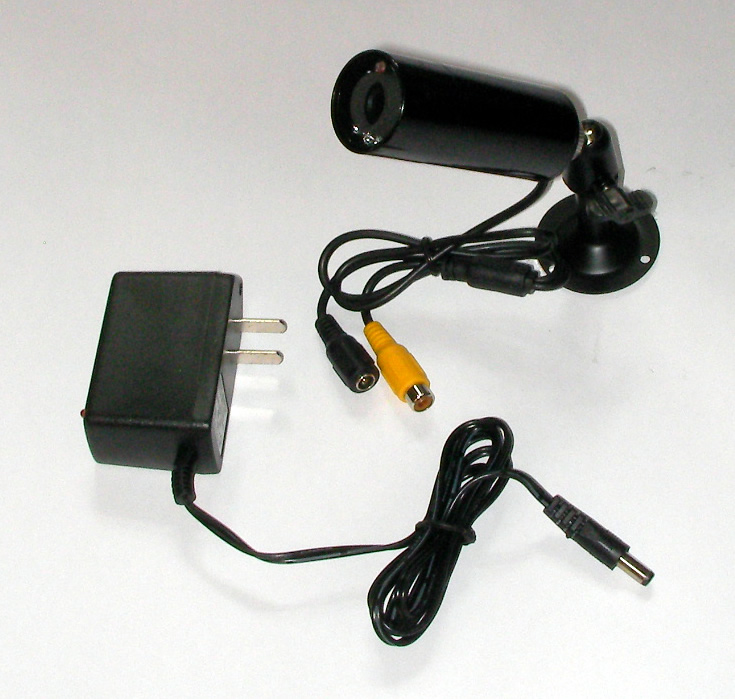

Sharp 1/4 inch CCD 10 LED IR Color Camera Sharp 1/4 inch CCD 10 LED IR Color Camera

This is a high quality compact wired IR Bullet Camera with 10 IR LEDs for illumination up to 10 meters in the dark. The image is color in normal light.
More Detail

Item# WC-044-000
$82.00
In Stock

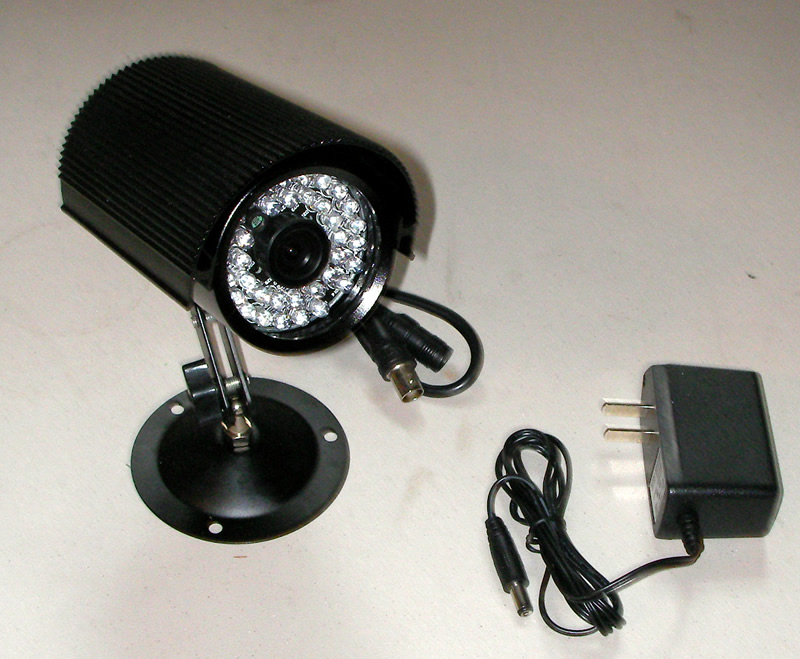

Sony 1/3 inch CCD IR Color Camera Sony 1/3 inch CCD IR Color Camera

This is a high quality wired IR Camera with 36 IR LEDs for illumination up to 30 meters in the dark. The image is color in normal light. The camera automatically detects low light and turns on the LEDs and displays a black and white image.
More Detail

Item# WC-042-000
$99.50
In Stock

Item Detail  Item Detail
Name:
Sharp 1/4 inch CCD IR Color Camera
Item#:
WC-041-000
Price/ea.
 $86.00
In Stock
 QTY:
Sharp 1/4 inch CCD IR Color Camera
This is a high quality wired IR Camera with 36 IR LEDs for illumination up to 30 meters in the dark.  The image is color in normal light.  The camera automatically detects low light and turns on the LEDs and displays a black and white image.   The connection is a BNC style plug.


Camera Specifications:

Image Sensor: 1/4 SHARP CCD

Picture Elements: NTSC: 512(H) x 492(W)

Scanning System : 2 : 1 interlace
Horizontal resolution : 420 TVL
Minimum illumination : 0 LUX / F1.2
Synchronizing System : Internal
Gamma : 0.45
Auto White Balance : On / Off
Auto Gain Control : On / Off
Back Light Compensation : On / Off
Video output : 1.0 Vp-p 75 Ohm
Power Supply : DC 12V/1A
Lighting distance : 15-30 meters

Enclosure: Black anodized

2.375" outside diameter

4.375" Length

Water resistance: IP65

Weight: approx 500g with mounting base
