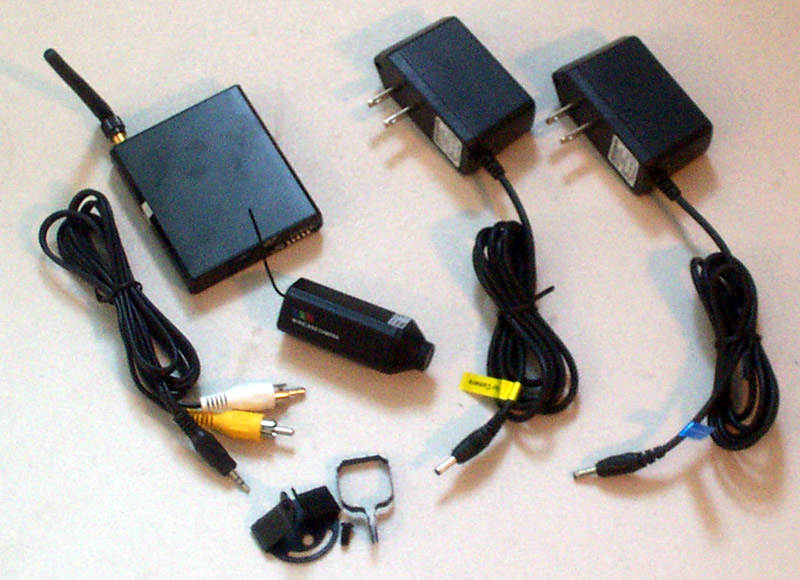

This system includes a Color Camera with Built-in Tiny High Frequency Wireless Transmitter with receiver. The system operates on a single channel 900MHz high frequency range (only one camera can be used at a time in the same area). In an unobstructed site with no other electrical interference you can expect to clearly transmit up to 300 feet. This system can be used with the 2.4Ghz cameras, wireless routers, etc. without interference.
- Color CMOS Wireless Camera with Audio
- Wireless Video and audio Signal
- Single channel 50mW Transmitter
- Small wireless camera (1" wide x 0.8" high x 0.9" deep)
- Receiver uses Fine Tuning Knob to tune in the camera signal

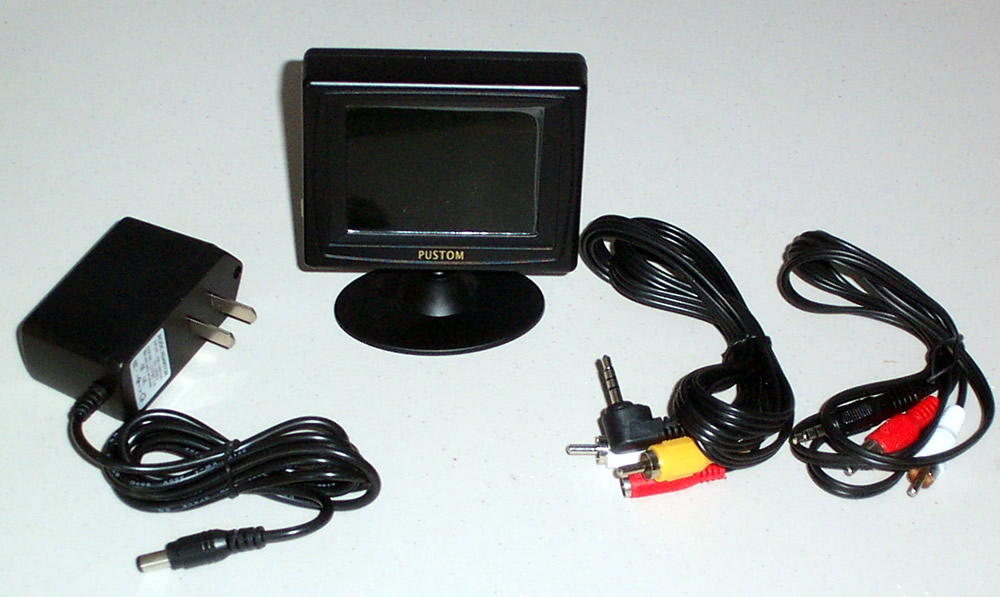

These cameras are NTSC Versions (United States Standards). Installation is simple and will take less than 3 minutes to set up. No wire to run through the house. No special knowledge is required. Anyone can do it with an ordinary television which has a RCA input. If needed, the video can be recorded with an ordinary VCR. The RCA output can also plug into your PC if you have a TV card or a USB video capture feature. We also sell LCD monitors that work great with this system.
This miniature camera has a built-in microphone and wireless Video & Audio transmitter. The highly sensitive microphone can listen in a room over 300 square ft. This miniature camera can send video & audio powered by a 9-volt alkaline battery (Duracell/Energizer) or a AC-DC Adaptor. The power RCA type of plug on the cameras should not be cut off! You should splice the 9V battery plug to your alternate battery to connect to the camera. It is important not to over volt the camera/transmitter for proper performance. We found it works great on anything above 7VDC, but should be less than 10VDC. This miniature camera can send video for a couple of hours non-stop if powered by a 9-volt alkaline battery. It draws about 52mA on a 9V battery.
The receiver will draw about 80mA @ 9V. We include a 115VAC to 12VDC supply now with the kits.
|
Specifications: |
| IMAGE SENSOR: |
COLOR CMOS NTSC |
| DEFINITION: |
380LINES @ CENTER |
| CAMERA POWER: |
8 VDC, 50mW |
| RECEIVER POWER: |
9 VDC |
| RECEPTION FREQUENCY: |
900MHz |
| VIDEO OUTPUT: |
RCA TYPE JACK |
| AUDIO OUTPUT: |
RCA TYPE JACK |
|
The Camera package includes the following: |
|
Qty |
Item |
| 1 |
Wireless Camera With Audio Transmitter, 50mW |
| 1 |
Wireless Camera Receiver |
| 1 |
RCA Cords |
| 1 |
115VAC to 12VDC power supply for receiver |
| 1 |
9V Battery Clip/Plug |
Legal issues:
1) USA: It is illegal to secretly record conversations/daily activities of others without their knowledge or permission and offenders are liable to be punished under Title 18, United States Code Section 2512. Buyer must be responsible for the legality on your countries and all other customs issues with these items. Each camera is sold on the condition that it will not be misused. Thank you.
2) The user is solely responsible for the operation of this equipment in compliance with FCC Rules and Regulations. Please contact FCC at: http://www.FCC.GOV for additional information.
