This is a customized LT-F robot. The standard robot has the upgraded positive traction wheels and treads. the wheels have teeth that pierce holes in the tread for a positive traction that tracks great, does not slip, and reject debris such as snow, sand, dirt, loose gravel, etc. The robot has a IR night vision camera in the front. The robot also has custom rear flipper arms attached to it. The robot also has a custom controller with a 5 inch color LCD for viewing the video images. This robot is very rugged. The wheels are a composite of rubber and ABS plastic. We designed and tested many wheels designs until we were able to get a reliable wheel and track system that tracked easily, was light weight, and robust. We have tested this wheel and tread design by driving it off roof tops of houses. Check out the videos of the robot on our LT-F support page. The robot as shown is less than 35lbs.

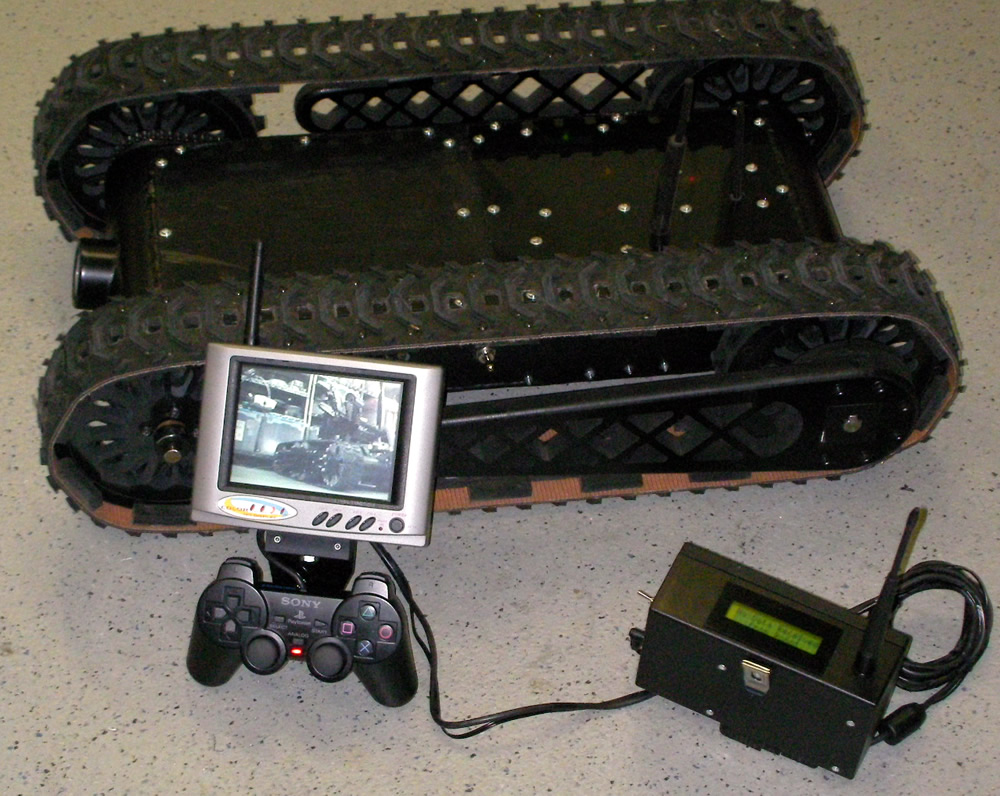

LT-F with custom controller. A 5" color LCD is mounted to a gamepad controller. The black box has a belt clip on it contains the wireless transceiver and LCD for displaying voltages and robot status. The robot is easily controlled with the standard PS2 gamepad controller.

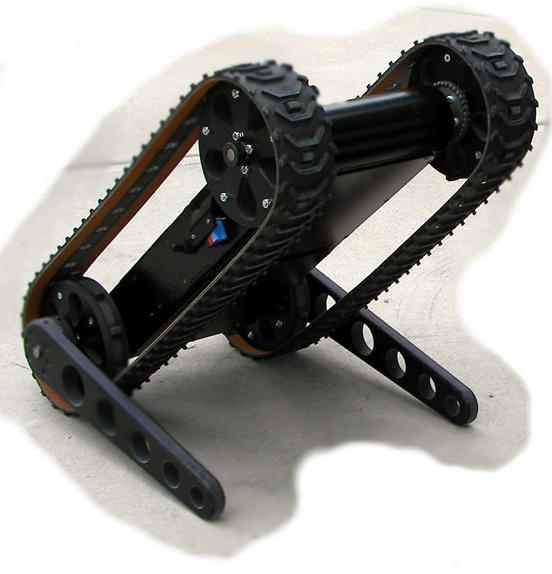

LT-F using its flipper arms to lift the nose of the robot up. Using the flipper arms the robot can easily climb over obstacles that are as high as the robot is long. Check out the videos of the robot on our LT-F support page.

LT-F with the flippers extended out backwards to act as wheelie bars while ascending stairs, etc. The flipper arm can continuously spin, has speed and direction control, and is controlled with the PS2 controller pictured to the left.

This robot is equipped with the following items:

• Welded Aluminum Base for 52mm Motors (qty 1)

• Water Jet cut Polycarbonate covers matched to mount on Aluminum Chassis. (qty 2)

• Two positive traction drive treads with 4 matched ~7" inch custom high impact wheels

• Custom tread tensioning blocks.

• Electric Motor Hookup Kit - TE-024-000 (Qty 2)

• Electric Power Hookup parts (Wire, fuses, switch, connectors, etc.)

• Required hardware, bearings, chains, sprockets, etc.

• Upgraded Type 04 IG52 285 RPM motors (Qty 2)
• 24V 2200mAHr battery packs (Qty 2)
• battery mount (Qty 1)
• Sabertooth Dual 10A Motor Driver (Qty 1)
• Rear Flipper stabilizer arms (Qty 1)
• SyRen 10A motor controller for flipper/stabilizer arm
• Color IR camera mounted in the front of the robot.
• 2.4GHz video transmitter.
• Custom Belt worn 900MHz data Transceiver with PS2 controller and 5" color 2.4GHz LCD Receiver (Qty 1)
• AstroFlight Deluxe Field Charger with 100W power supply (qty 1)
• Full assembly and tested.
