The image gallery displays robots built using this platform.

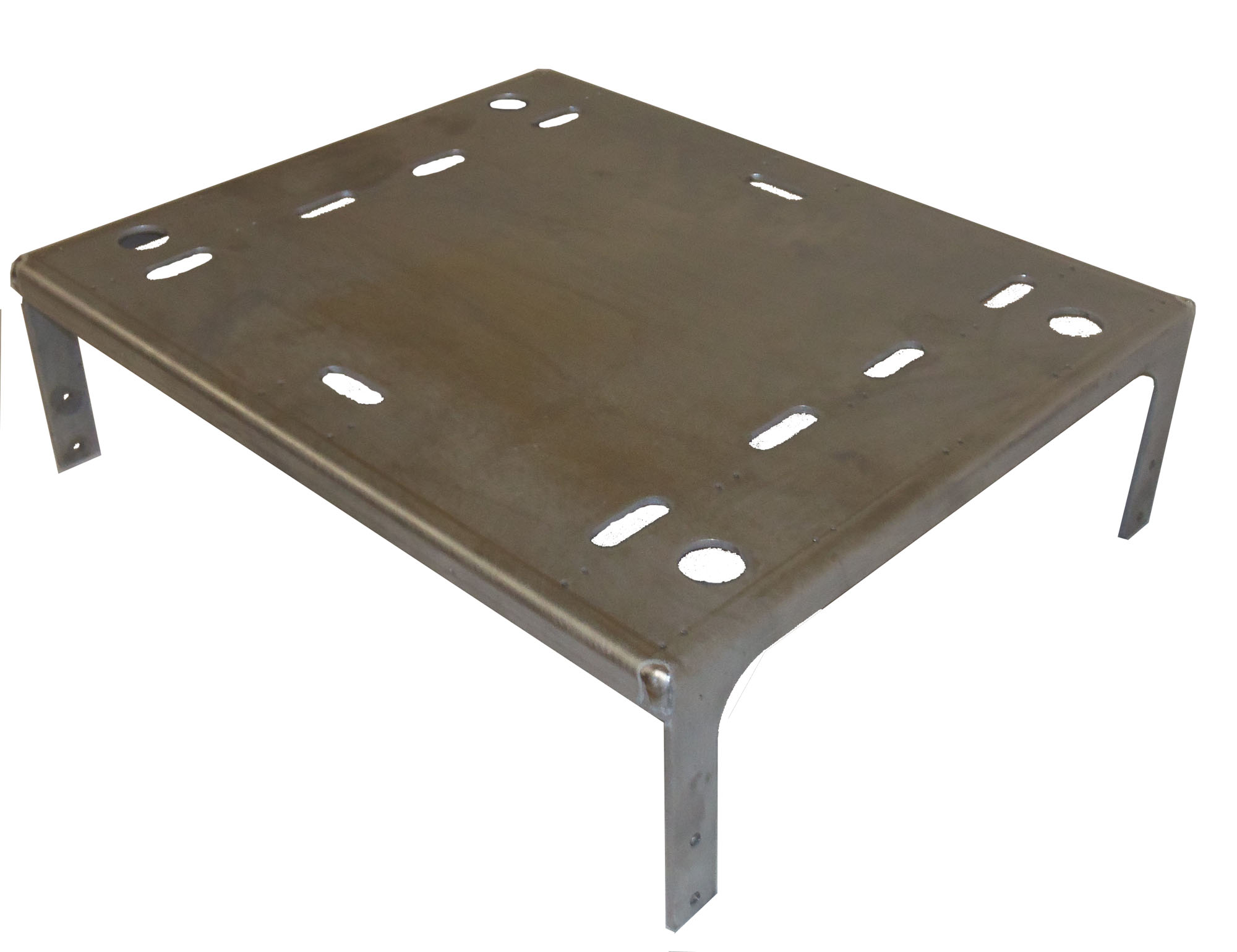

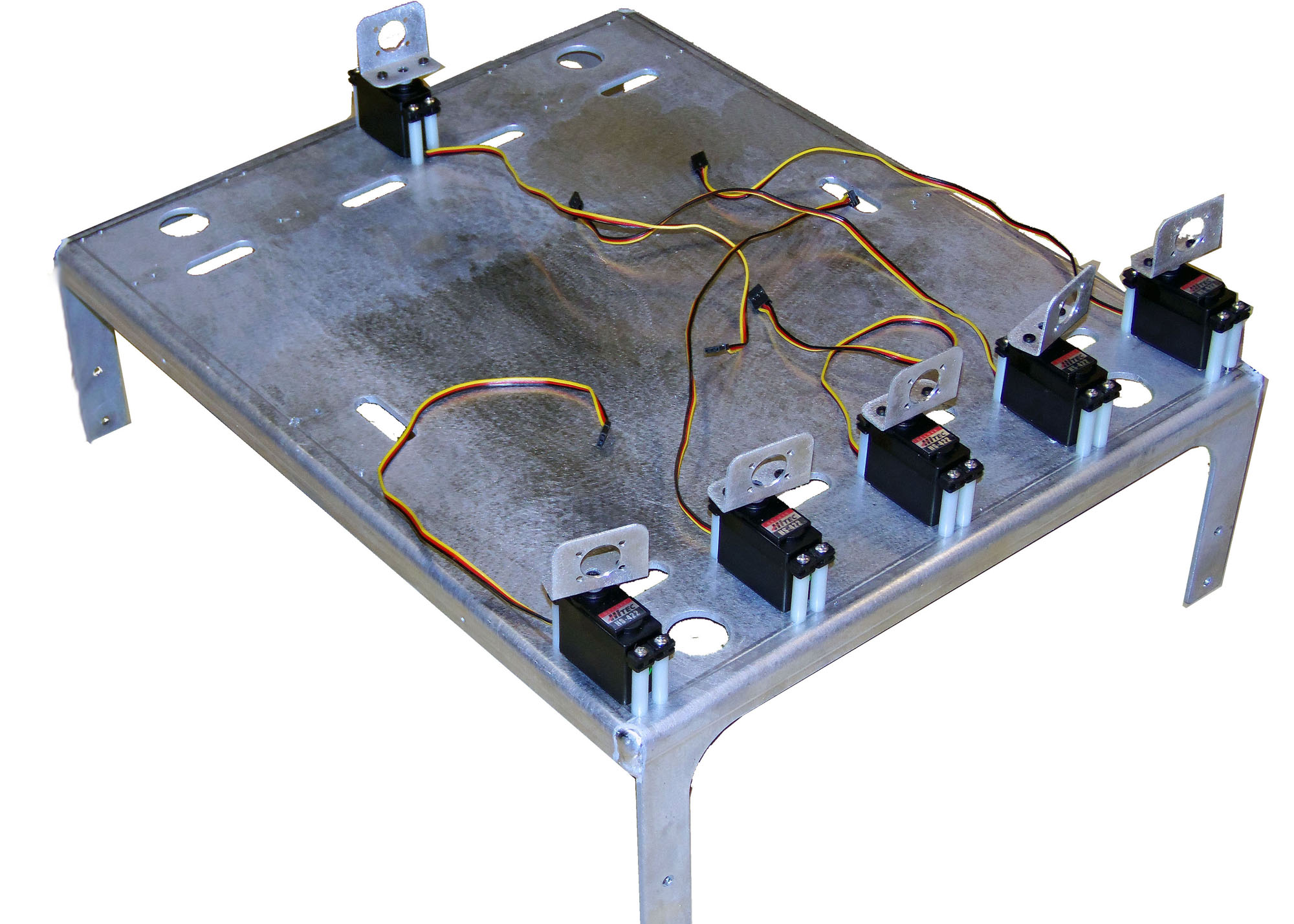

This is a top deck that will mount on most of our All Terrain Wheeled Robots. The upper deck is made of bent and welded aluminum providing a very rigid and sturdy upper deck. It also provides mounts for multiple servos, etc.
The standard items and options are listed below. Since we have many chassis, select the chassis style you are mounting this on and will make the upper deck fit selected chassis. We also offer an option for an upper roll cage that would go on top of deck to protect the front and rear sensors.
Dimensions (LxWxH): 17.5" x 14.5" x 5" (When mounted, the distance between the top of the robot chassis and the bottom of the upper deck is 2.75")
Check out the how we used the upper deck in our autonomous robot build.
This is a roll cage that can be mounted on your ATR frame.
This is a rugged chassis made of 1/8" thick aluminum to accept our IG32 and IG32P gear motors. The aluminum is cut with our CNC plasma cutter for and exact fit-up and welded. The chassis accepts outboard bearings to take the wheel loads.
This chassis plate is used with our custom length robot platform. Mount the tubing frame to this plate and you have a sturdy chassis ready for assembly with room to mount batteries and electronics.
This prebuilt 4WD wheeled robot platform is equipped with 32mm motors, a motor controller, and Spektrum remote control. This pre-built is an customized version of TP-132-032.
