Analog 3-Axis Joystick
Item Details
Analog 3-Axis Joystick
Item Name:
Analog 3-Axis Joystick
Item #:
TE-128-003
Your Price:
$29.99
$28.49/ea. - Qty: 25 - 49
$26.99/ea. - Qty: 50 and above
Availability:
301 Ready to Ship!
Quantity:

Product Image Gallery:

Description:

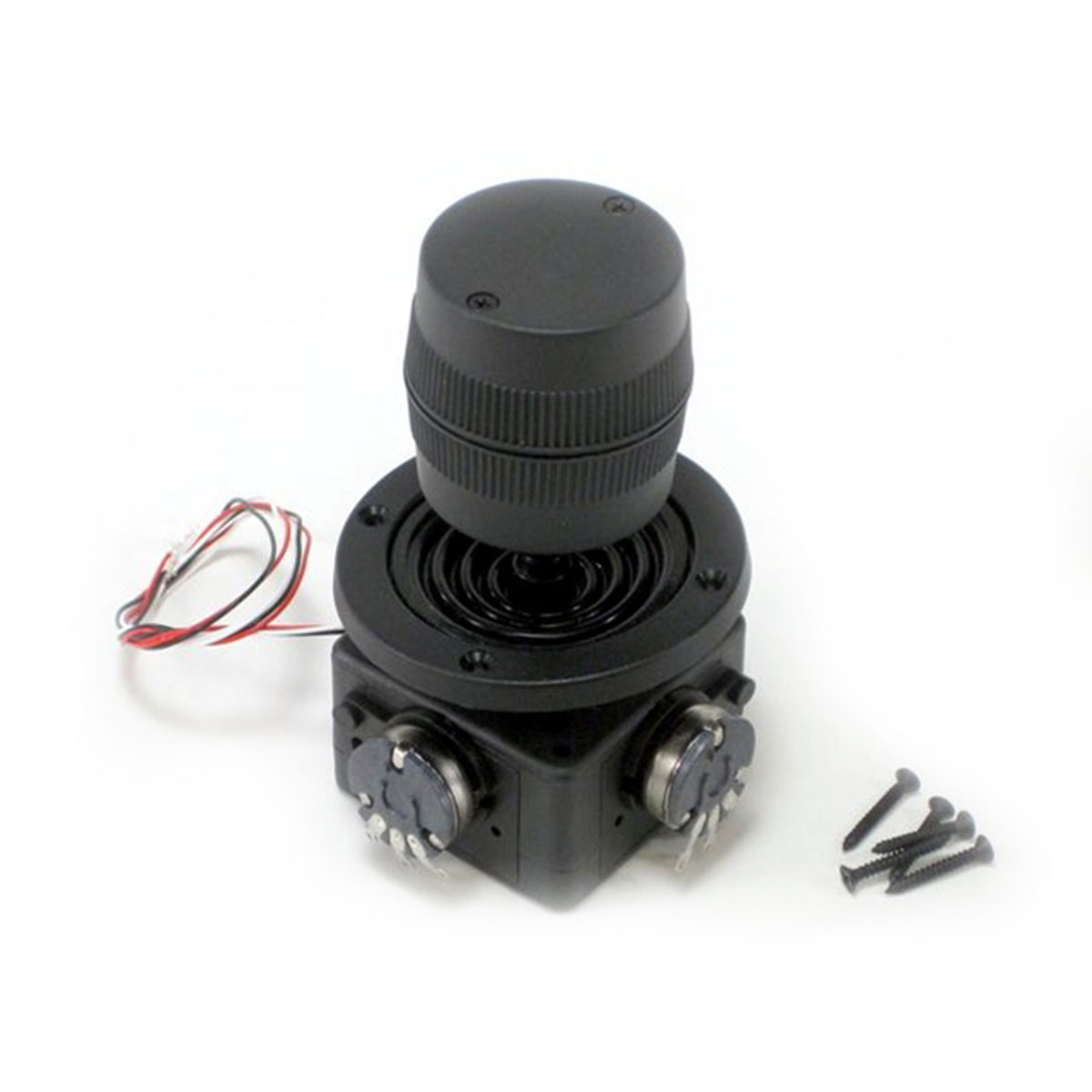

This a high quality 3 axis joystick with a rubber boot. Spring return to center (X and Y springs can be removed). Each Axis is attached to a 5k ohm linear potentiometer. The potentiometers mounted on the gimbals are adjustable to adjust the center point. The joysticks move 50 degrees in each direction and utilize the full range of 5K ohm potentiomenter for maximum sensitivity. The 3rd axis is a twist knob with a spring return to center potentiometer.

The potentiometer travels full range ~0k to ~5k with full travel of joystick with ~2.5k in the center. (If you hook ground to one leg, 5V to the other leg, you will get a 0-5V analog output on the middle sweeper arm, with 2.5V in the center position.)


IT IS VERY IMPORTANT TO METER THE POTENTIOMETERS WITH A OHM METER BEFORE JUST HOOKING UP VOLTAGE. IF HOOKED UP WRONG, THEY WILL BE DAMAGED.

(Typically, the 3rd axis uses the black wire as the sweeper. Red and White are typically the two sides of the pot. Measuring the resistance between them determines this. Its 5K ohms between the Red and White. 2.5K from black to either side and as you turn the knob it varies.)

Includes flexible rubber boot and flange with mounting screws as shown in picture. See PDF Drawing for mounting details.

Features and Specifications:

  • Resistance: 5k ohms
  • Resistance Tolerance: 5%
  • Independent Linearity Tolerance: 1%
  • Resolution: Infinity
  • X and Y Axis Rotational Angle: 50 degrees
  • Operating Torque: 440gf
  • Rotational life expectancy: 500,000 times
  • Operating Temperature: -10 deg C to 80 deg C

Documentation and Support:





This a high quality 3 axis joystick with a rubber boot.  Spring return to center (X & Y springs can be removed).  Two joysticks move 50 degrees in the X and Y direction. The 3rd axis is a twist knob with a spring return.
Support Links
Related Items
Sabertooth Dual 12A Motor Driver
TE-091-212

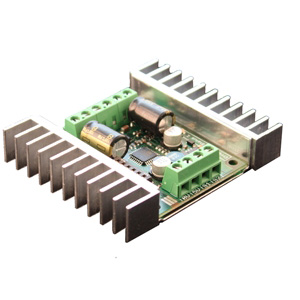

Dimension Engineering Sabertooth 2X12 is one of the most versatile, efficient and easy to use dual motor drivers on the market. It is suitable for medium powered robots - up to 30lbs in combat or 100lbs for general purpose robotics. Replaced TE-091-210.

$79.99
39 Ready to Ship!

Analog 2-Axis Joystick
TE-128-002

This a high quality 2 axis joystick with a rubber boot. Spring return to center (springs can be removed). The joysticks move 50 degrees in each direction and utilize the full range of 5K ohm potentiomenter for maximum sensitivity.

$24.99
408 Ready to Ship!
