Pan and Tilt Systems for cameras. These pan and tilt system allow you to move your camera view left and right and up and down.
Category List
Camera Pan and Tilt System - Compact
Item Details

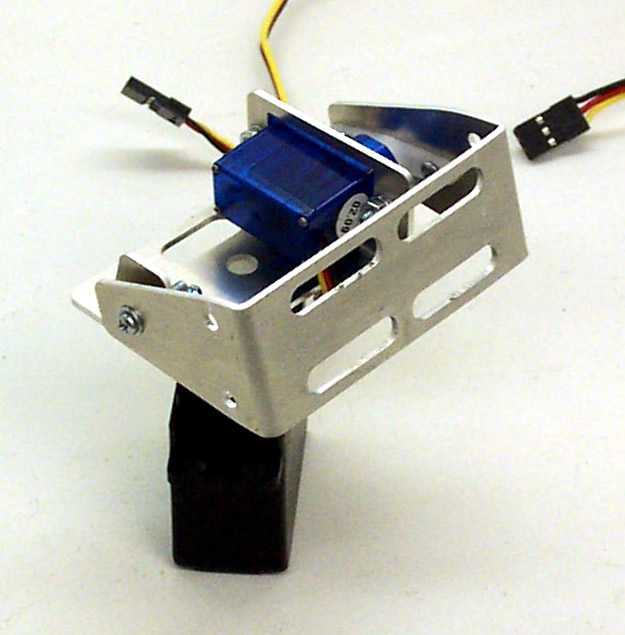

Camera Pan and Tilt System - Compact
Item Name:
Camera Pan and Tilt System - Compact
Item #:
WC-003-100
Manufacturer:
SuperDroid Robots
Adjusted Price:
Availability:
Built to Order: 2-4 Days
Quantity:

Product Image Gallery:

Description:

Add Pan and Tilt capabilities to your camera. This system consists of the necessary brackets and hardware to allow you to pan and tilt your camera. Two servos arerequired for its operation and selected as default options below. The panning servo option is a standard sized servo. The tilt servo is a nice compact subminiature servo, which results in a low profile system. If you already have the servos, you can deselect the options below.

For complete dimensions, view our mechanical drawing.

Method of Control:

Includes:

  • Aluminum bracket - camera pn (Qty 1)
  • Aluminum bracket - camer tilt (Qty 1)
  • Hardware package (Qty 1)
  • HS-55 Servo (Qty 1)
  • HS-422 Servo (Qty 1)
  • Servo arms and hardware (Qty 1)

Features:

  • Camera Pan and Tilt System
  • Small Compact Design
  • Two servo control
  • Sharp IR or Devantech Ultrasonic Sensors can be mounted with optional brackets. When the sensors are used with the camera you can determine the distance to the object the camera is looking at.

Assembly:

  • This comes as a kit that requires minimal mechanical assembly. A small screwdriver and pair of small pliers is required.
  • Follow this link for assembly instructions (~250kBytes).
  • We offer full assembly in the options below
Item Options - Customize
Select an option by clicking on its button. To see more details about the option select the option name, selecting 'more details' in the pop-up will take you to that options product page. Default selections (if any) are pre- selected for you. Click on the update button below to see the price with your selected options.

Select the Servo that you wish to use as the pan servo. Pan is the left to right motion.

Select the Servo that you wish to use as the tilt servo. Tilt is the up/down fwd./back motion.

You can add sensor brackets to the pan and tilt camera system to help you range in what the camera sees.

Assembly of the Camera Pan and Tilt includes mechanical assembly of the components.

Assemble Camera Pan and Tilt System (Add $21.00)
An Asterisk '*' indicates that one or more options is Out of Stock!
Item Price
Adjusted Price
$60.80




This is a pan in tilt system driven by servos.  It is perfect for small cameras and/or sensors.  This is the most compact pan and tilt we carry.
