Zoom and focus commands using Arduino

What is Arduino

Arduino is an open-source platform that can be used for creating electronics projects. Arduino is made up of both a physical programmable circuit board (referred to as a microcontroller) and a piece of software, or IDE (Integrated Development Environment) that is run on your computer and is used to write and upload computer code to the physical board.

The Arduino platform has gained popularity with people who are new to electronics, and for good reason. Unlike most previous programmable circuit boards, the Arduino does not need a separate piece of hardware (called a programmer) in order to load new code onto the board – you can simply use a USB cable. Additionally, the Arduino IDE uses a simplified version of C++, making it much easier to learn to program. Finally, Arduino provides a standard form factor that breaks out the functions of the micro-controller into a more accessible package.

The code

Today we want to share some code that shows how to send zoom and focus commands to a Dome Camera with an Arduino using Pelco-D protocol.

Parts you may need:

• Dome Camera

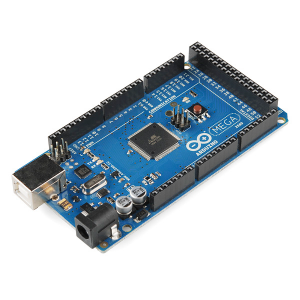

• Arduino Mega
• Switch to send zoom or focus commands
• RS485 breakout board

In the code below there is example code of how do zoom, focus, pan and tilt, but for this example we are going to use only zoom. To wire the switch use the common to 5V and the other two to pin 13 and pin 14 on arduino. In the RS485 board add solder to the solder jumper , connect DE to pin 12 and DI to Serial1, 5V and GND.



#include

// RS485 Enable //
//#define rsEnable 12  //uncomment this lines
//#define f0Mask B00000001
//#define f1Mask B00000010
//#define f2Mask B00000100
//#define f3Mask B00001000
//#define f4Mask B00010000
//#define f5Mask B00100000
//#define f6Mask B01000000
//#define f7Mask B10000000

// PTZ Camera
int cameraAddress = 0x01;
int ZoomInPin = 13, ZoomOutPin = 14;// Definition of digital pin input
int zoomin = 0, zoomout = 0;
int pan, tilt, digital;
Stream* serialPort;

void setup() {
	Serial.begin(9600); Serial1.begin(9600);
	ptzCam(Serial1, cameraAddress);
	initialize();
	pinMode(ZoomInPin, INPUT);
	pinMode(ZoomOutPin, INPUT);
}

void loop() {
	zoomin = digitalRead(ZoomInPin);
	zoomout = digitalRead(ZoomOutPin);

}
void ptzCam(Stream &serial, unsigned char _cameraAddress)
{
	serialPort = &serial;
	cameraAddress = _cameraAddress;
	sendPTZcommand();
}
void initialize() {
	pinMode(rsEnable, OUTPUT); digitalWrite(rsEnable, HIGH);
}
void sendPTZcommand()
{
	char cmd1, cmd2;
	char data1, data2;
	char checksum;
	char id;

	int temp = 0;

	//Serial.print("Tilt1: "); Serial.print(tilt);

	tilt = tilt >> 1; pan = pan >> 1;

	if (pan > 127) { pan = 127; }
	if (tilt > 127) { tilt = 127; }

	// Reduce and Deadband the pan and tilts
	if (pan < 65 && pan > 61) { pan = 63; }
	if (tilt < 65 && tilt > 61) { tilt = 63; }

	//Serial.print(" Tilt2: "); Serial.println(tilt);

	// Command 1
	// *************************
	// Bit 7: Sense (Unused)
	// Bit 6: Reserved
	// Bit 5: Reserved
	// Bit 4: Auto / Manual Sean
	// Bit 3: Camera On/Off
	// Bit 2: Iris Close
	// Bit 1: Iris Open
	// Bit 0: Focus Near

	// Command 2
	// *************************
	// Bit 7: Focus Far
	// Bit 6: Zoom Wide
	// Bit 5: Zoom Tele
	// Bit 4: Down
	// Bit 3: Up
	// Bit 2: Left
	// Bit 1: Right
	// Bit 0: Always 0

	// Data 1 - Pan Speed
	// *************************
	// Expects 0 - 63, where 63 is full speed and 0 is stopped

	// Data 2 - Tilt Speed
	// *************************
	// Expects 0 - 63, where 63 is full speed and 0 is stopped

	digitalWrite(rsEnable, HIGH);

	id = cameraAddress;
	cmd1 = 0;
	cmd2 = 0;
	data1 = 0;
	data2 = 0;
	//in this code we are only using zoom in and out
	// Zoom
	if ( (zoomin) && !(zoomout) ) { cmd2 = 32; } // wide
	else if ( !(zoomin) && (zoomout) ) { cmd2 = 64; } // tele

	// Focus
	if ( (digital & f2Mask) && (!digital & f3Mask) ) { cmd1 = 1; cmd2 = 0; } // wide
	else if ( !(digital & f2Mask) && (digital & f3Mask) ) { cmd1 = 0; cmd2 = 128; } // tele

	// Pan
	if (pan > 63) {
	cmd2 = cmd2 + 2; // Set direction bit
	data1 = pan - 63; // We're on the upper end, so shift down
}
else if (pan < 63) { cmd2 = cmd2 + 4; // Set direction bit data1 = 63 - pan; } // Tilt if (tilt > 63) {
	cmd2 = cmd2 + 16; // Set direction bit
	data2 = tilt - 63; // We're on the upper end, so shift down
}
else if (tilt < 63) {
	cmd2 = cmd2 + 8; // Set direction bit
	data2 = 63 - tilt;
}

// Bound data to safe margin
if (data1 < 2) { data1 = 0; if (cmd2 & f2Mask) { cmd2 -= 4; } if (cmd2 & f1Mask) { cmd2 -= 2; } } if (data1 > 61) { data1 = 61; }

// Bound data to safe margin
if (data2 < 2) { data2 = 0; if (cmd2 & f4Mask) { cmd2 -= 16; } if (cmd2 & f3Mask) { cmd2 -= 8; } } if (data2 > 61) { data2 = 61; }

	checksum = id + cmd1 + cmd2 + data1 + data2;

	serialPort->write(0xFF);
	serialPort->write(id);
	serialPort->write(cmd1);
	serialPort->write(cmd2);
	serialPort->write(data1);
	serialPort->write(data2);
	serialPort->write(checksum);
	/* debug print
	//Serial.print("PTZ Command: ");
	Serial.write(0xFF);ac
	Serial.write(id);
	Serial.write(cmd1);
	Serial.write(cmd2);
	Serial.write(data1);
	Serial.write(data2);
	Serial.write(checksum);
	//Serial.println();
	*/
	//digitalWrite(rsEnable, LOW);
}
