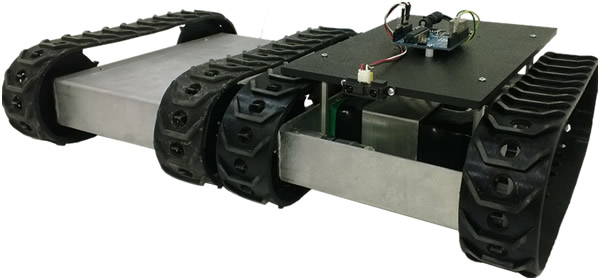

Introducing the MLT-JR Tracked Platform. The MLT-JR is available in two packages, the Tracked Platform TP-220-001 and the Arduino Development Platform TP-220-002. Both robots are based on our MLT Tactical Robot. They feature the same molded spliceless tracks and a similar compact chassis.

MLT-JR Tracked Robot Platform

Product Number: TP-220-001

Standard Configuration:

• MLT Pair of Molded Spliceless Tracks and wheels Set.
• 24VDC IG32P 265RPM planetary gear motors
• High Power Polymer Li-Ion Module 22.2V 3Ah battery providing a up to 3 hours of operation depending on use.
• This robot comes complete with a Sabertooth Dual 12A RC Motor Driver
• This robot includes a Spektrum DX5eTransmitter with AR600 Receiver
• Handles 15lbs of additional payload in most terrains.
• The total weight of this configuration is ~6 lbs.

MLT-JR Arduino Development Platform

Product Number: TP-220-002

Standard Configuration:

• MLT Pair of Molded Spliceless Tracks and Wheels Set
• Qty 2: 12VDC IG32 53RPM planetary gear motors
• 12V 4500 mAHr NiMH 2×5 Battery Pack.
• Sabertooth Dual 12A Motor Driver
• Arduino Uno Programmable Controller
• Handles 5lbs of additional payload in most terrains.
• The total weight of this configuration is ~6 lbs.
