Sensors for Robots
Related Items  Related Items

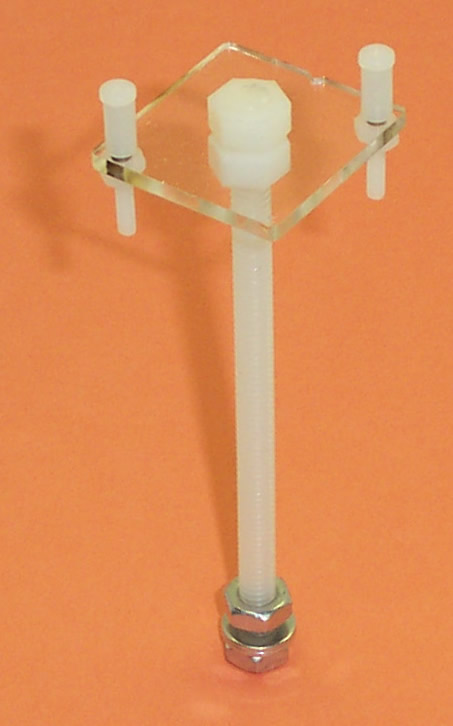

Electronic Compass Bracket and Mast Electronic Compass Bracket and Mast

This is a bracket to mount your electronic compass on and keep it away from any metal. The bracket is made from laser cut acrylic and it mounts to a nylon mast.
More Detail


Item# TS-035-000
$11.95
In Stock

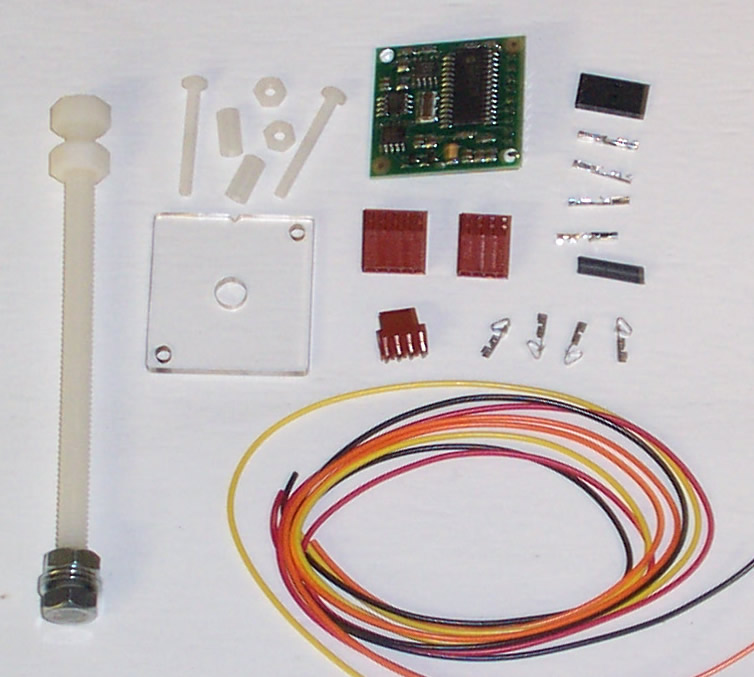

Trekker Electronic Compass Kit Trekker Electronic Compass Kit

This kit includes an electronic compass and a laser cut acrylic mounting bracket and nylon mast to keep it away from any metal. It also includes the wire and connectors to attach the compass to the OOPic II Expansion Card or the OOPic program plug.
More Detail


Item# TS-034-000
$79.50
In Stock

Item Detail  Item Detail
Name:
Devantech CMPS03 Electronic Magnetic Compass
Item#:
TS-025-000
Price/ea.
$59.00
In Stock
 QTY:
Devantech CMPS03 Electronic Magnetic Compass

This sensor is great for letting your robot know what direction it's going.  It is designed by Devantech specifically for use in robots to aid navigation.  The compass uses the Philips KMZ51 magnetic field sensor, which is sensitive enough to detect the Earth's magnetic field.  Two of them are mounted at right angles to each other can to compute the direction of the horizontal component of the Earth's magnetic field.   For example programs using the OOPic see our downloads page.  For installation/operation and other information follow this link.

Click on images for larger view
Autonomous Robot Kits Autonomous Robot Kits

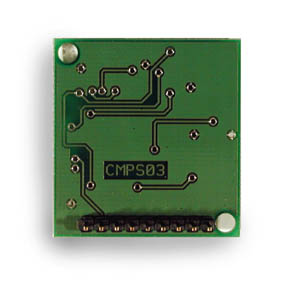

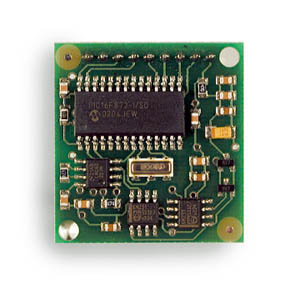

CM03 Side 1 CM03 Side 2

Voltage 5v
Current 20mA Typ.
Resolution 0.1 Degree
Accuracy 3-4 Degrees approx (after calibration)
Output 1 Timing Pulse 1mS to 37mS in 0.1mS increments
Output 2 I2C Interface, 0-255 and 0-3599
SCL Speed up to 1MHz
Weight 0.03 oz.
Size 32mm x 35mm

Specifications subject to change without notice
