Description

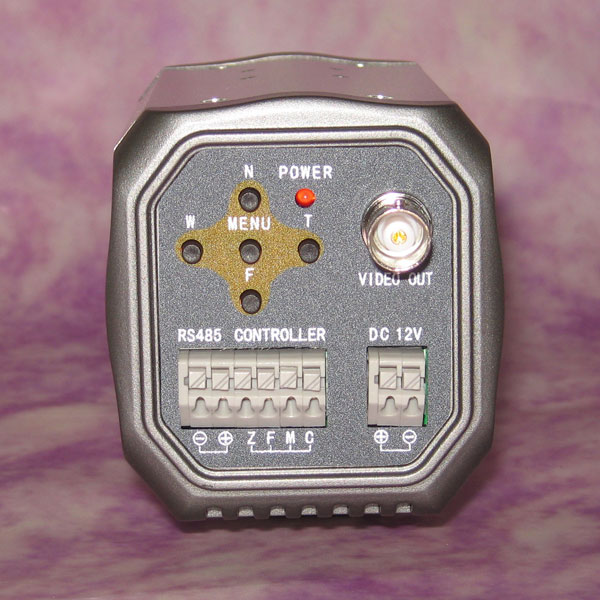

This is a wired color camera with a 27X Optical Zoom, auto focus, 1/4 inch Sony Color CCD.
This has been replaced by WC-047-030.
Specifications
- Pickup device 1/4-inch Sony CCD image sensor
- Number of pixels 537(H)X492(V)
- System of signal NTSC/PAL
- Horizontal resolution 420TV Line / 480TV Line
- Minimum illumination 0.8 lux
- Lens 3.9mm-105.3mm
- Backlight compensation ON/OFF
- Electronic shutter 1/50~1/100000sec
- white balance Auto
- S/N ratio <48db
- Gamma correction Automatic Focusing, Electrically operated focusing
- Operation temperature -20C~50C
- Line method DC5V~12V
- Bus method RS485
- Bus arbitration PELCO-D,ELCO-P Protocol
- Baud rate 9600
- Video output <1.2VP-P/750
- Operation Voltage DC12V
- Power <400mA
- Dimensions 110X65X70mm
- Weight 320g
