Description

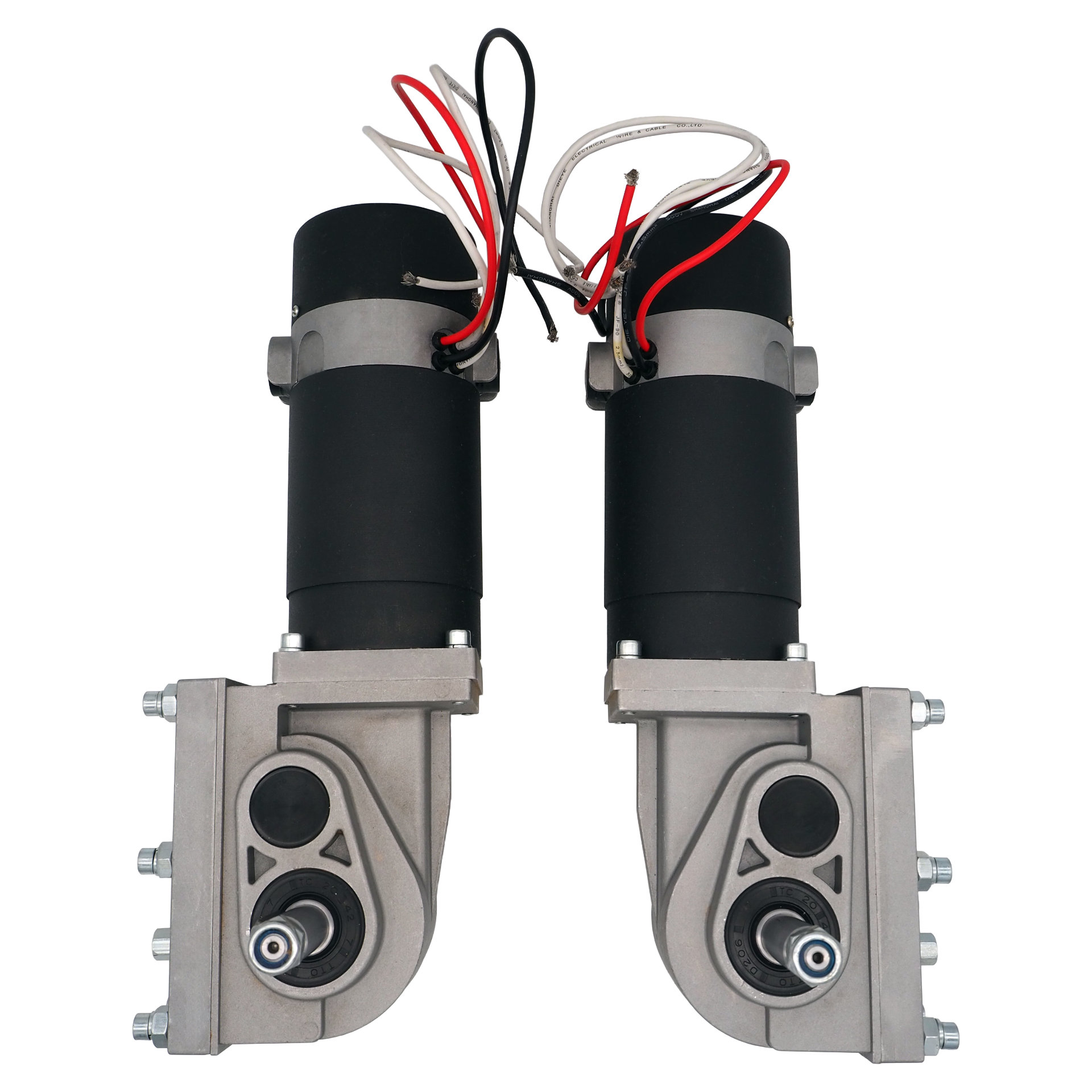

This is a set of wheelchair motors. They make great heavy duty robot motors. One left motor and one right motor (sold as a pair, we will not split the packages). They are right angle gear drives with a release (for free wheeling) and electric brakes on the motor. They are 24VDC and the operating speed is 120 RPM. If you want these motors with optical encoders mounted instead of the brakes, follow this link.

Features and Specifications

• Rated Power: 320W
• Output Speed: 120rpm
• Motor Length: 337mm
• Rated Voltage: 24V
• Reduction Ratio: I=7,I=10,I=15, I=36
• Motor Diameter: 82.8mm

Recommendations

We recommend using one of the following motor controllers with this motor:

• Sabertooth Dual 60A motor driver
• RoboteQ MDC2460 - 2x60A 60V Motor Controller with Encoder Input
• RoboteQ XDC2460 - 2x150A 60V Motor Controller with Encoder Input

Documentation

• Brake Removal Instructions
• Datasheet
• Schematic
• Wiring Diagram
• Robot Speed Calculator

Shipping

Due to the weight of these items, they do not qualify for free domestic shipping. (About 37lbs packed up.)
