4 inch Wide Molded Track Set
Item Details
4 inch Wide Molded Track Set
Item Name:
4 inch Wide Molded Track Set
Item #:
TD-137-002
Manufacturer:
SuperDroid Robots
Adjusted Price:
Availability:
19 Ready to Ship!
Quantity:

Product Image Gallery:

Description:

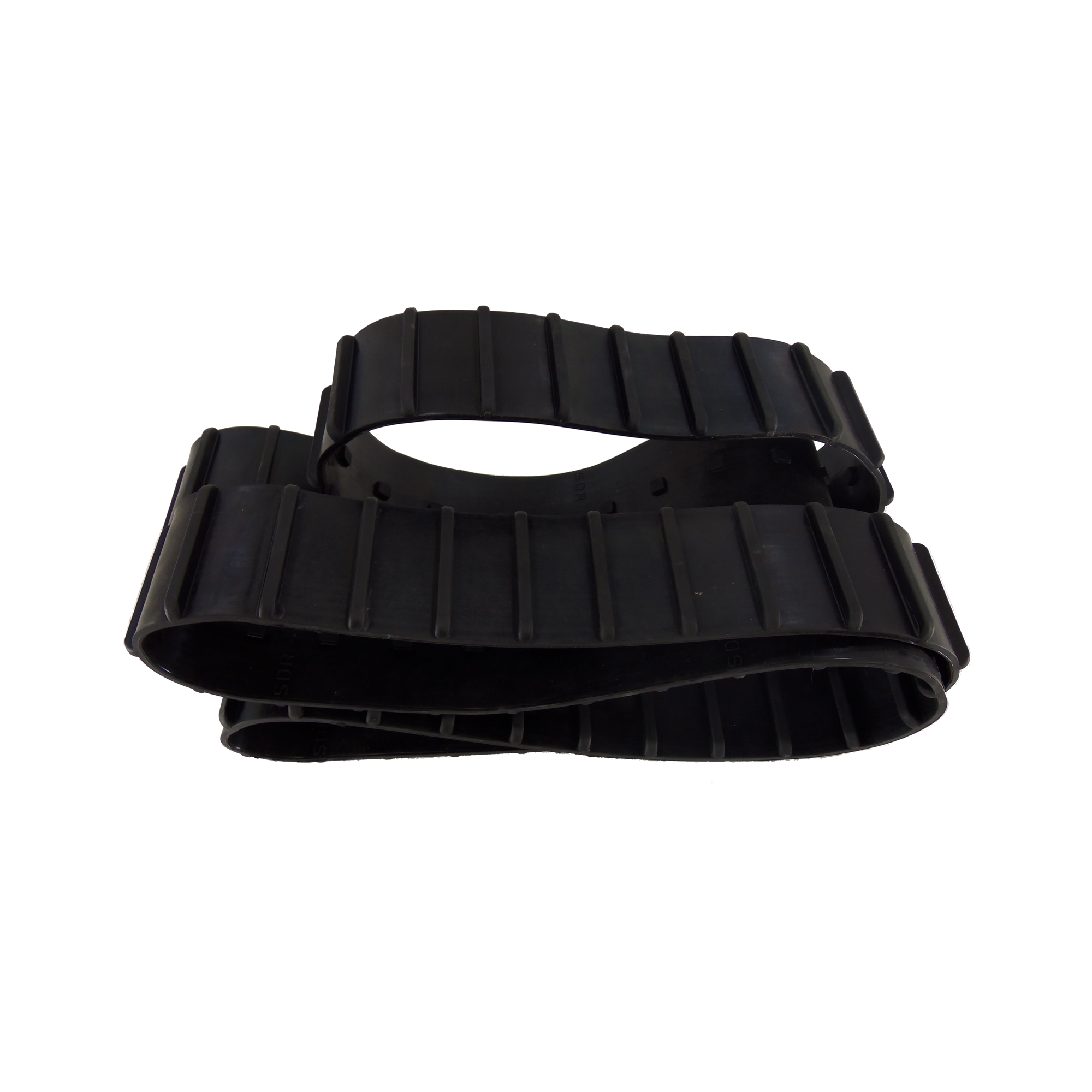

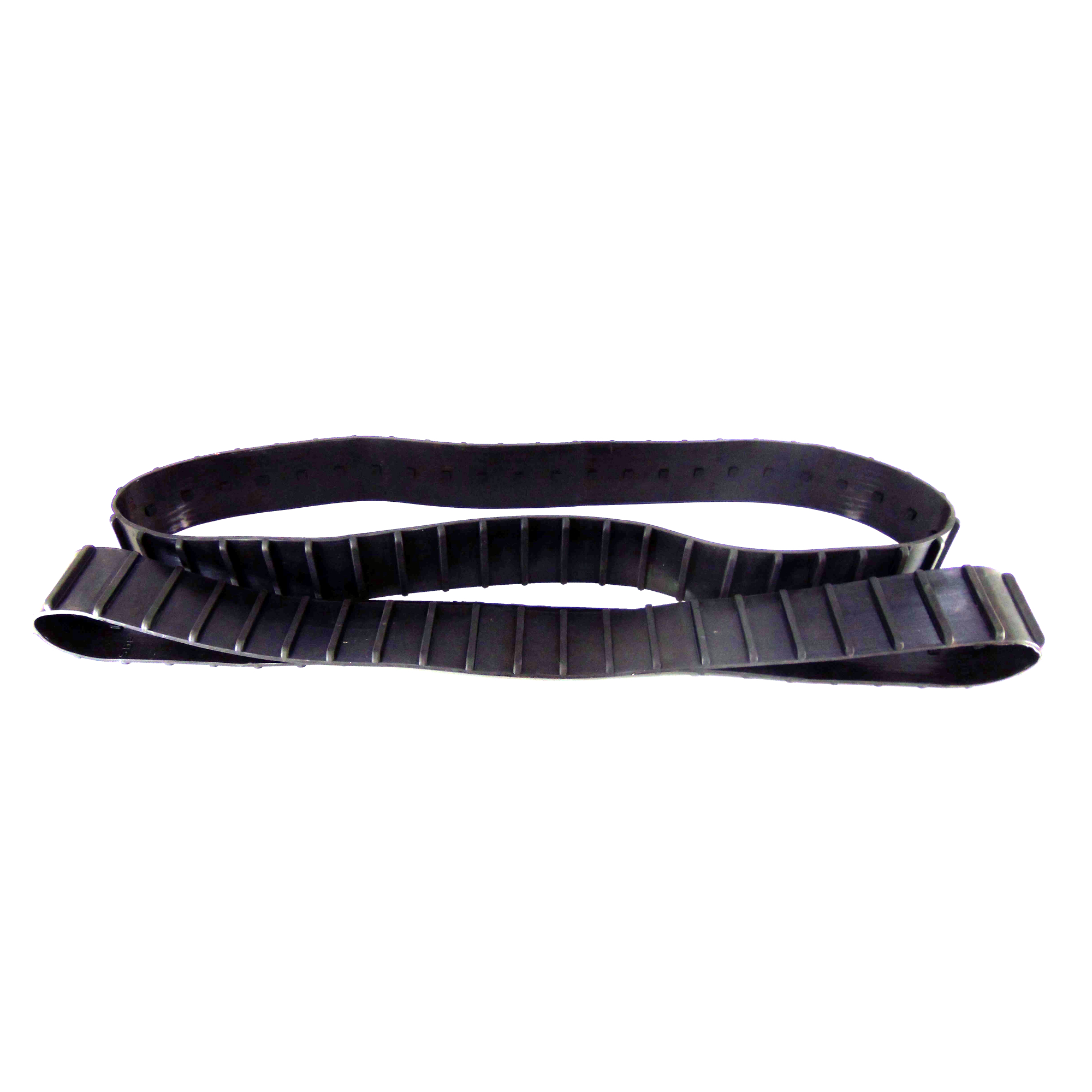

This is a pair of All Terrain reinforced 4 inch wide tracks for UGVs. They have a mesh reinforcement and are molded rubber with no splice. These treads have small timing cleats in the center of the track. They are 13mm square spaced 48mm apart. Standard length is 45 pitches/cleats making the track length 2160mm.

Features and Specifications:

  • These tracks will require your own wheel design.
  • These are the same treads used on our HD2 Robot minus the internal guide cleats. You will have to make your own guide cleats and wheels for this set of treads.
  • The multi-ply treads have an aggressive black rubber all-terrain 4" wide pattern.
  • The track does NOT have a splice! They are molded to be continuous.
  • The overall tread thickness is about 0.61" with the knobs, the tread without the knobs is about 0.25" thick.
  • The weight of one tread is 4.1 lbs.
  • The track is approximately 2160 mm in circumference.
  • The traction lugs are 8mm thick, 10mm tall and are spaced out every 48mm.

Custom Length Option:

  • When a custom length is ordered, please allow 4-8 weeks for shipment.
  • Specify your custom length by the number of cleats/pitches you want.

Documentation:

Item Options - Customize
Select an option by clicking on its button. To see more details about the option select the option name, selecting 'more details' in the pop-up will take you to that options product page. Default selections (if any) are pre- selected for you. Click on the update button below to see the price with your selected options.

The standard length of these tracks is 45 cleats/pitches (2160mm total length). If you want a custom length enter the amount of cleats/pitches you want your tread to have. Minimum of 20, maximum of 70 cleats/pitches.

Custom Length (number of cleats/pitches) (Add $229.00)
Item Price
Adjusted Price
$349.00




This is a pair of All Terrain reinforced 4 inch wide tracks for UGVs.  They have a mesh reinforcement, molded rubber with no splice. This is the same track used on our HD2 minus the guide cleats.
