4WD Omni Wheel Base Kit - IG32 SB
Item Details
4WD Omni Wheel Base Kit - IG32 SB
Item Name:
4WD Omni Wheel Base Kit - IG32 SB
Item #:
TP-091-032
Manufacturer:
SuperDroid Robots
Adjusted Price:
$930.40/ea. - Qty: 3 - 5
$881.43/ea. - Qty: 6 and above
Availability:
Built to Order: 2-5 Days
Quantity:

Product Image Gallery:

If assembly is chosen as an option below, this item will not qualify for free shipping.

Description:

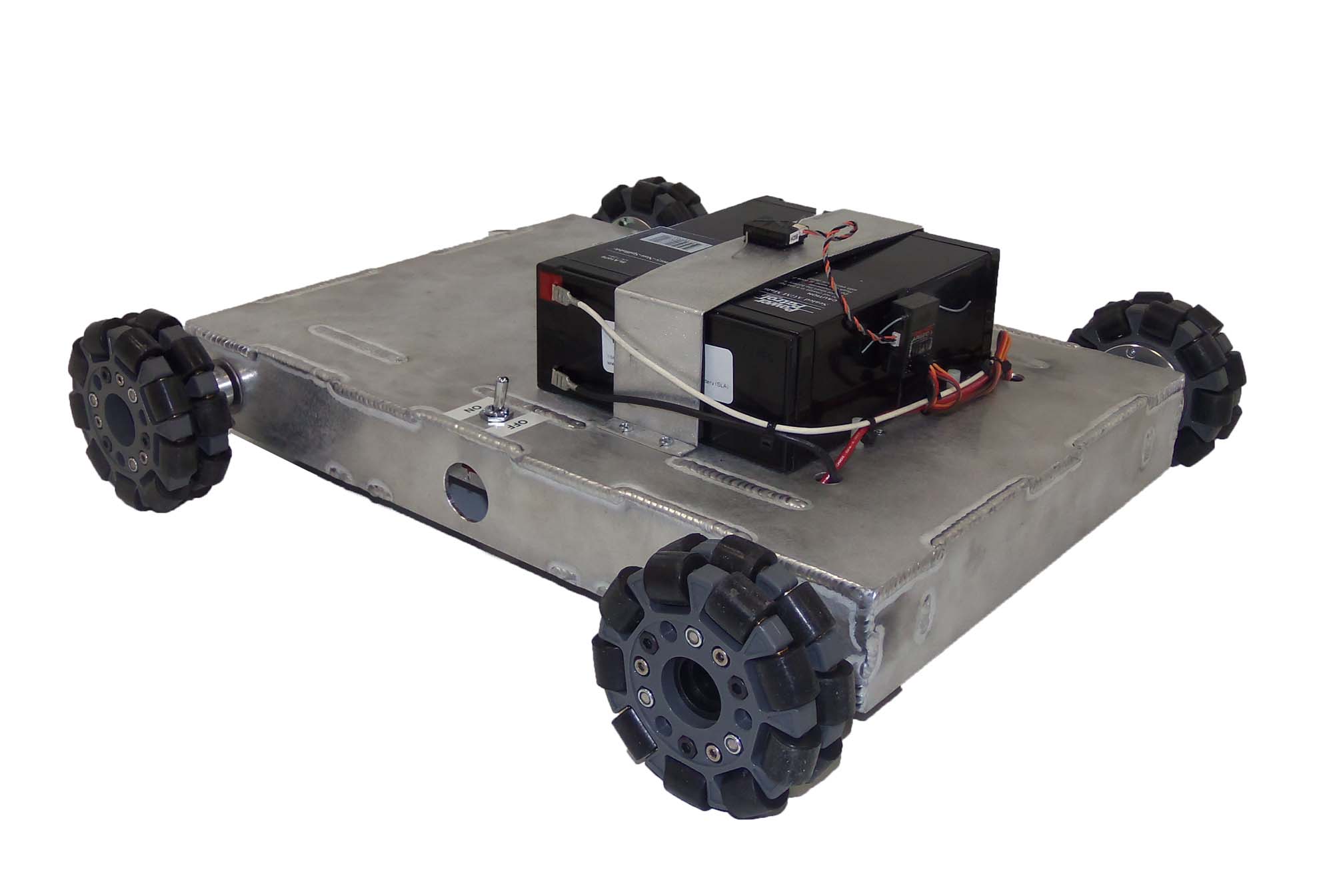

This is our 2nd generation base ATR kit fit up with OmniWheels. As pictured it has double row omni-wheels, but you can also purchase it with single row omni wheels. It is an extremely rugged well built robot. The wheels are axle mounted and are supported using sealed ball bearings. The motors are very powerful. The base is made of aluminum which makes it easy to drill mounting holes for your electronics. The kit provides you with what you need to make a great Omni-Wheel robot.

This robot is ideal for indoor and light duty outdoor activity. The ATRs steer using skid steering (differential steering). By varying the speed or direction of the wheels will allow the robot to turn. With high traction ATR tires this is difficult because the tires have to skid. Using the Omni tires allows easy turns because the wheels allow side slip. This kit should only be used on level ground. While the robot is plenty powerful to climb hills straight on, if the robot is sideways to a hill, it will side slip down the hill. We have loaded these robots up with over 100 lbs and it turned and drove very well.

This is a rugged frame made of 1/8" thick aluminum to accept our IG32 and IG32P gear motors. This is our 2nd generation ATR frame and wheel housing. We took our previous design that had separate motor housings that mounted to a base and made it all one piece. We also stretched it slightly, adding the ability to make it 6WD. The aluminum frame is fully gusseted adding greater rigidity. The aluminum is all laser cut for an exact fit-up and then hand welded and polished. Later if you want to make this robot 6WD, just add the middle set of wheels and motors. See our ATR page for more details.

Features and Specifications:

The base is 12.25" wide x 17.25" long. The sides are 2.125" high (bottom edge to top surface). Note, these dimensions do not include weld filler, which adds a little to the overall dimensions. With the double omniwheels the total width is about 17.25" by 18.75" long and 4" high (the wheel height). The clearance is a little over an inch.

Available Options:

(Selected Below)

There are a lot of options and additions you can select, the links of all the items are included below. Follow the links for details of each item and option.

When you purchase this kit you will get access to our assembly manual that contains color images and step by step instructions, or you can opt for us to assemble it for you.

This kit does not include a microcontroller, sensors, or RC unit. See our ATR Robot Building Page for options and links to our controllers, sensors, and controller batteries. Don't forget to get your battery chargers either.

This robot can be configured with encoders used for telemetry and/or speed control. They are very useful if you are planning on making your robot semi-autonomous. Our motors use hall-effect encoders.

For more information, check out these blog posts

Contact us if you need help selecting options or need a custom configuration.

Documentation and Support:

Delivery:

This item usually ships within 1-3 days depending on volume and assembly options.

Videos:

Item Options - Customize
Select an option by clicking on its button. To see more details about the option select the option name, selecting 'more details' in the pop-up will take you to that options product page. Default selections (if any) are pre- selected for you. Click on the update button below to see the price with your selected options.

These are standard items that are required. They are checked and grayed out indicating that they are not optional and cannot be unchecked

These are the standard included items for this robot kit, please leave all of them selected unless you are sure you do not need them

Select Single Row or Double Row Omni-Wheels

Select the motors you desire with your kit.

Select the battery for running the motors. We suggest the 4500mAhr battery for longer run times.

Select the motor controller you want to use.

If you selected motors with encoders, you will likely need additional components to complete the assembly. See description above for more details.

Select the type of RC Controller you desire to control the robot. If you are planning on using this robot with a microcontroller or similar, a RC controller is not necessary

Select this option if you want a customized battery mount(s) that will fit the battery(ies) you selected above.

No Battery Mount
Customized Battery Bracket(s) (Add $25.00)

Select this option if you want us to include an appropriate charging system with your selected robot batteries

No battery charging system
Battery Charging system (Add $49.90)

Assembly of the robot chassis, motors, wheels, and wiring.

Unassembled
Assemble 4WD Omni Wheel Base Kit (Add $230.00)
Assemble 4WD Omni Wheel Base Kit with Encoder (Add $270.00)
Item Price
Adjusted Price
$979.37

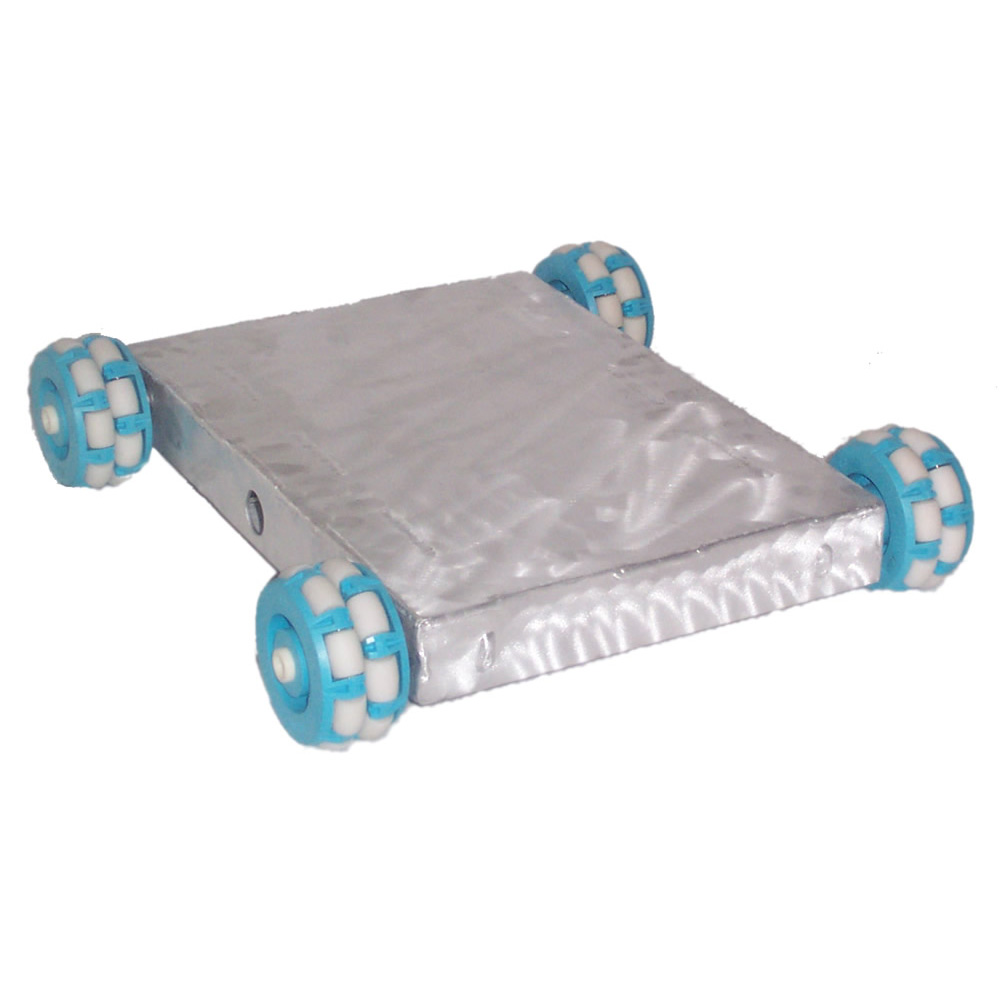

This is a basic Omni Wheeled Robot Kit that has all the main features to get you going. previously TP-091-001.  Now available with Nexus wheels.
