Arduino Robot with US Plug
Item Details
Arduino Robot with US Plug
Item Name:
Arduino Robot with US Plug
Item #:
TP-039-000
Manufacturer:
Arduino
MPN:
A001078
Your Price:
$249.00
Availability:
9 Ready to Ship!
Quantity:

Product Image Gallery:

Description:

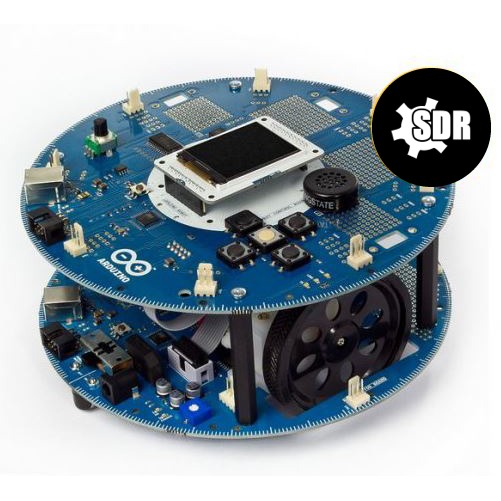

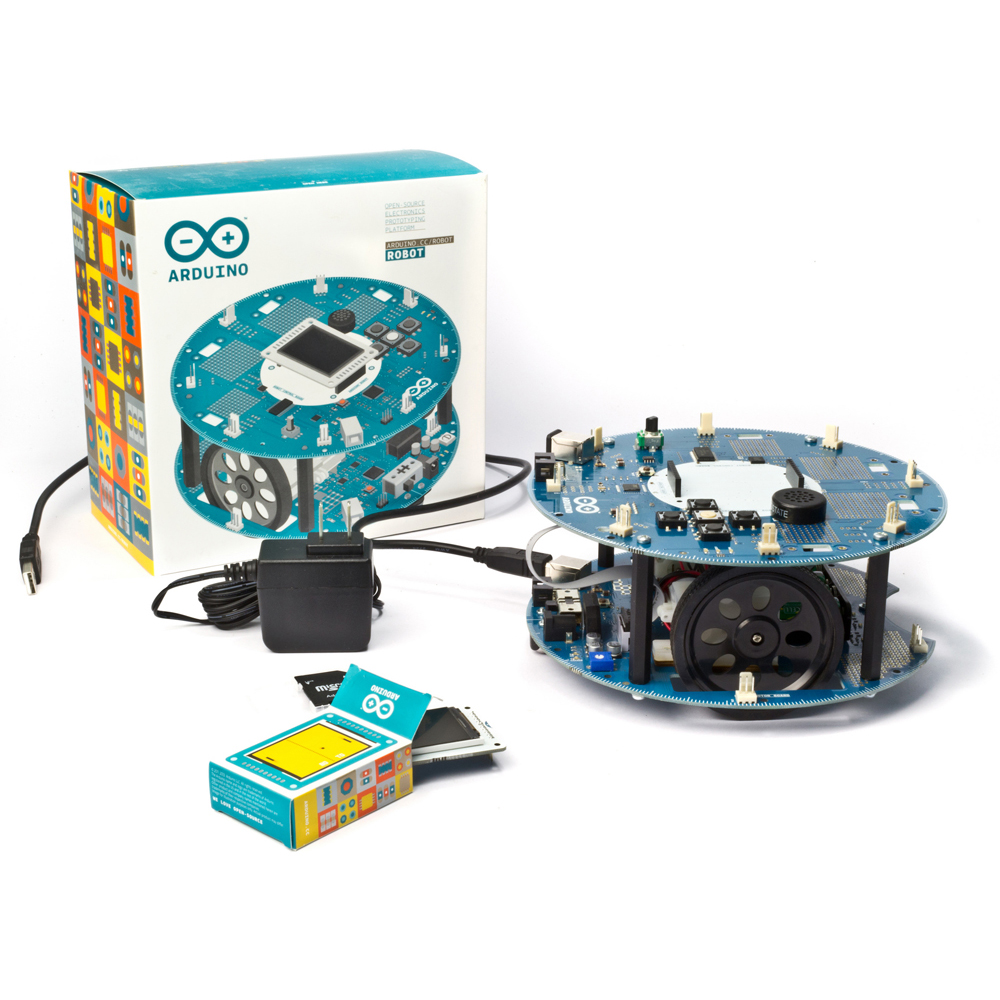

This authentic Arduino Robot is the first official Arduino on wheels. The robot has two processors, one on each of its two boards. The Motor Board controls the motors, and the Control Board reads sensors and decides how to operate. Each of the boards is a full Arduino board programmable using the Arduino IDE, which can be used to make an autonomous robot. Model: A001078.

Both Motor and Control boards are microcontroller boards based on the ATmega32u4 (datasheet). The Robot has many of its pins mapped to on-board sensors and actuators.

This programmable robot is similar to the Arduino Leonardo. Both processors have built-in USB communication, eliminating the need for a secondary processor. This allows the Robot to appear to a connected computer as a virtual (CDC) serial / COM port.

As always with Arduino, every element of the platform – hardware, software and documentation – is freely available and open-source. This means you can learn exactly how it's made and use its design as the starting point for your own robots. The Arduino Robot is the result of the collective effort from an international team looking at how science can be made fun to learn. Arduino is now on wheels, come ride with us!

Control Board Summary
Microcontroller ATmega32u4
Operating Voltage 5V
Input Voltage 5V through flat cable
Digital I/O Pins 5
PWM Channels 6
Analog Input Channels 4 (of the Digital I/O pins)
Analog Input Channels (multiplexed) 8
DC Current per I/O Pin 40 mA
Flash Memory 32 KB (ATmega32u4) of which 4 KB used by bootloader
SRAM 2.5 KB (ATmega32u4)
EEPROM (internal) 1 KB (ATmega32u4)
EEPROM (external) 512 Kbit (I2C)
Clock Speed 16 MHz
Keypad 5 keys
Knob potentiomenter attached to analog pin
Full color LCD over SPI communication
SD card reader for FAT16 formatted cards
Speaker 8 Ohm
Digital Compass provides deviation from the geographical north in degrees
I2C soldering ports 3
Prototyping areas 4
Motor Board Summary
Microcontroller ATmega32u4
Operating Voltage 5V
Input Voltage 9V to battery charger
AA battery slot 4 alkaline or NiMh rechargeable batteries
Digital I/O Pins 4
PWM Channels 1
Analog Input Channles 4 (same as the Digital I/O pins)
DC Current per I/O Pin 40 mA
DC-DC converter generates 5V to power up the whole robot
Flash Memory 32 KB (ATmega32u4) of which 4 KB used by bootloader
SRAM 2.5 KB (ATmega32u4)
EEPROM 1 KB (ATmega32u4)
Clock Speed 16 MHz
Trimmer for movement calibration
IR line following sensors 5
I2C soldering ports 1
Prototyping areas 2




This authentic Arduino Robot is the first official Arduino on wheels. The Programmable robot has two processors. The Control Board reads sensors and decides how to operate. This robot can be made into an Autonomous Robot.  Model: A001078.
