All Terrain Wheeled Robot Kits to get you going! 2WD, 4WD, and 6WD robot kits. Customize a full kit or just select pieces and make your own custom all terrain robot.
Category List
Configurable - PCS1000-DM4 - 4WD ATR Platform with Wheelchair Motors
Item Details
Configurable - PCS1000-DM4 - 4WD ATR Platform with Wheelchair Motors
Item Name:
Configurable - PCS1000-DM4 - 4WD ATR Platform with Wheelchair Motors
Item #:
TP-198-004
Manufacturer:
SuperDroid Robots
Adjusted Price:
Availability:
Built to Order: 1-2 Weeks
Quantity:

Product Image Gallery:

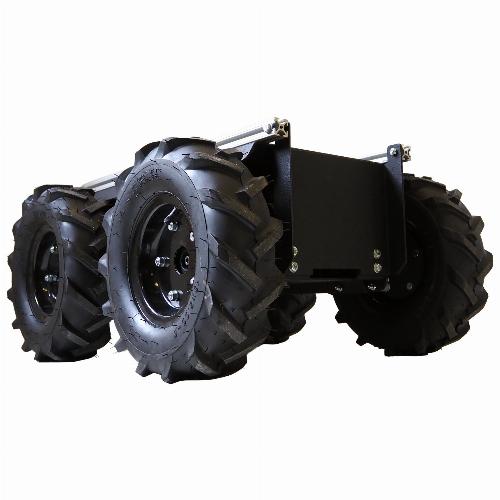

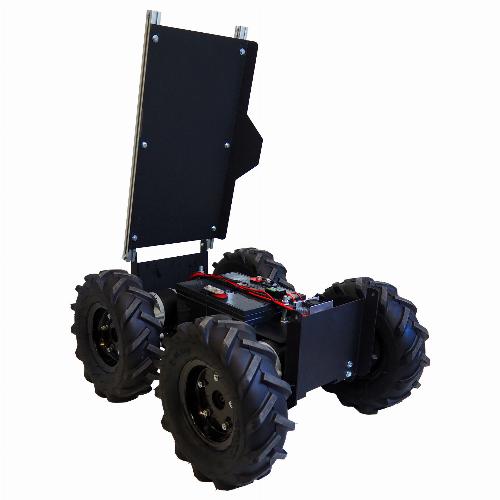

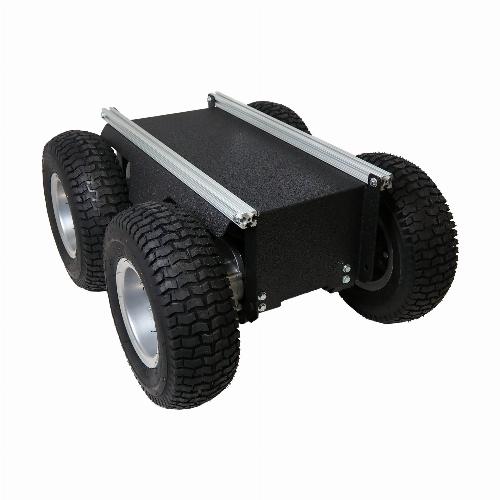

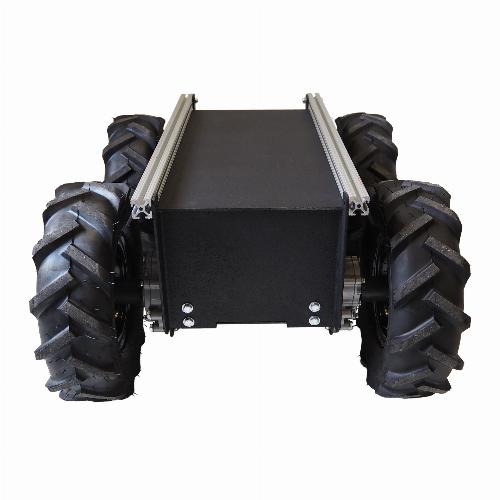

The image gallery displays robots built using this platform.

This item does not qualify for free shipping.

Description

This is a configurable robot kit with selectable options at the bottom of the page. The options are pre-selected to reflect our recommended configuration but can be changed to suit your needs.

This is a custom robotic platform. Our engineers combined powerful motors with a heavy-duty chassis to create a sturdy, reliable platform! The robot is built to handle a high payload capacity while able to maneuver across difficult terrain. It's fast, responsive, and easy to control!

Specifications and Configuration

Specifications

These specifications are based on the Standard Configuration listed below. These values may change based on the options selected.

  • Dimensions (LxWxH): 30.0" x 22.0" x 14.0"
  • Weight: 132 pounds
  • Axle Mount: Direct Mount (DM) - Wheel axles are mounted directly onto the motor shaft
  • Drive Method: Direct Drive
  • Payload:
    • With default selected options: 200 pounds depending on use
    • Payload range with available options: 100 to 200 pounds
  • Speed:
    • With default selected options: 255 feet per minute (3 mph)
    • Top speed range with available options: 255 to 408 feet per minute

Standard Configuration

This is our recommended loadout for the PCS1000-DM4 and includes everything listed below. Other options are detailed in the Available Options section.

Available Options

The PCS1000-DM4 kit allows for a wide range of customizations based on your needs. We offer a variety of motor controllers, batteries, and RC controllers so you can configure the robot to meet your requirements. The weight of the robot will vary depending on how the robot is configured (batteries are the main cause of this). You can find detailed specs such as weight and dimensions by clicking on the component and viewing its product page.

  • Wheelchair Motors: Choose from our selection of different RPM gear motors. As you go down in RPM, your payload capacity will go up but your speed will go down. As you go up in RPM, your payload capacity will go down but your speed will go up.
  • Batteries: We offer two types of batteries with this robot: sealed lead acid (SLA) and LiFePO4. The lead acid batteries are good batteries but heavy, do not provide any internal circuit protection, and will have a shorter life span. The LiFePO4 batteries are much lighter, have internal circuit breakers to prevent damaging themselves, and can survive more charge cycles.
  • Battery Mounting Bracket: We will include the battery bracket (or multiple brackets) sized to fit your choice of batteries.
  • Battery Charger: All chargers provided are smart chargers that will change to a trickle charger once maximum voltage is reached. Note that you'll only need to select a battery charger if you are getting lead acid batteries. The LiFePO4 batteries come with their own charger.
  • Motor Controller(s): Choose from our selection of RoboteQ, Sabertooth, and RoboClaw motor controllers. A single motor controller is all that is required. The left side motors share a channel while the right side motors share the other channel.
  • Encoders: This robot can be configured with encoders used for odometry and/or speed control. They are very useful if you are planning on making your robot autonomous or semi-autonomous. If this option is selected a high resolution optical encoder is installed on the motor. If you are only using a single motor controller, select to have encoders installed on qty. 2 motors. If you select qty. 2 motor controllers, make sure to select the option to have encoders installed qty. 4 motors. See links in the documentation and support section for more information.
  • WiFi Control Package: We offer an option to control your robot with a WiFi package. If you wish to have encoder feedback, there is an option for WiFi Package with encoder input.
  • RC Controllers: We offer several options for controlling your platform. All RC controllers listed are failsafe (motor controller will stop sending commands if remote is disconnected). If you are planning on using this robot with a microcontroller or similar device an RC controller is not necessary.
  • Paint: This robot comes standard with a durable textured truck bed liner paint for the chassis. Unpainted will come sanded aluminum and uncoated steel frame. For a custom paint color, please contact us.
  • Assembly: You can choose if you'd like our team to assemble the kit prior to delivery, as well as if you'd prefer our team to assemble only the mechanical components or perform a complete assembly. The in-house assembly will typically add a week to delivery.

Contact us if you need help selecting options or need a custom configuration.

Documentation and Support

Delivery

  • This item is built to order and usually ships within 2 weeks
  • Assembly will add approximately 1 week
  • Need it faster? Contact us

Video

Shipping

  • This item is Built to Order and usually ships in 1-2 Weeks.
  • Assembly will add approximately 1 week.
  • Need it faster? Contact us
Item Options - Customize
Select an option by clicking on its button. To see more details about the option select the option name, selecting 'more details' in the pop-up will take you to that options product page. Default selections (if any) are pre- selected for you. Click on the update button below to see the price with your selected options.

Required Items (these items cannot be unchecked)

4WD Robot Chassis - PCS-WC DM
Manual linked on Item Page

Standard Items (We recommend you keep these checked)

Motors

Batteries

Battery Bracket(s)

No Battery Bracket
Include Battery Bracket(s) (Add $85.00)

Batttery Charging

No Battery Charger
Include battery chargers (Add $90.00)

Motor Controller

RC Controller

WiFi Control Package

Paint Option

Unpainted
Textured Black Bedliner (Add $455.00)

Assembly

Unassembled
Mechanical Assembly (Add $420.00) (Add 1 week)
Complete Assembly (Add $780.00) (Add 2 weeks)
An Asterisk '*' indicates that one or more options is Out of Stock!
Item Price
Adjusted Price
$5,127.89




This robot is equipped with powerful wheelchair motors. The default configuration has a speed of 272 fpm and a payload of up to 200 lbs. With different configurations, speed can range from 255 to 408 fpm and payload can rage from 100-200 lbs.
