These are some of our Pre-Built, Fully Assembled, and Tested Robot kits that have sold. If you see something you like, let us know and we can build it again for you!
Category List
CUSTOM Prebuilt - 4WD ATR Platform with Wheelchair Motors - SOLD
Item Details
CUSTOM Prebuilt - 4WD ATR Platform with Wheelchair Motors - SOLD
Item Name:
CUSTOM Prebuilt - 4WD ATR Platform with Wheelchair Motors - SOLD
Item #:
TP-500-368
Your Price:
$5,289.00
Availability:
We're sorry, this item is currently out of stock. Please contact us for availability.

Product Image Gallery:

Description

This is a fully assembled prebuilt robot. The robot is being sold in the configuration listed below. For a customized configuration please visit the preceding link and view all available options. If further customization is required, please fill out our custom request form.

This is a custom robotic platform. Our engineers combined powerful motors with a heavy-duty chassis to create a sturdy, reliable platform! The robot is built to handle a high payload capacity while able to maneuver across difficult terrain. It's fast, responsive, and easy to control!

Interested in a different configuration? Check out our other platform kits to customize your own robot!

Specifications

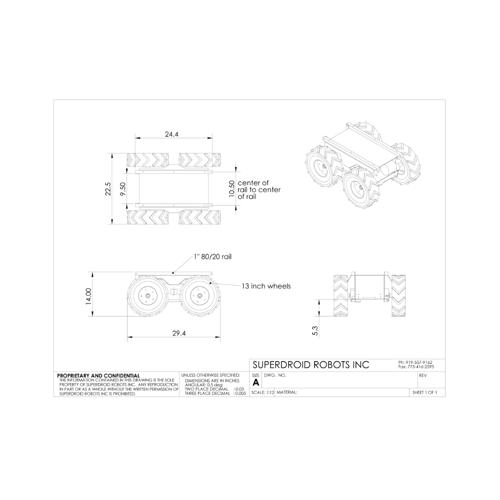

  • Dimensions (LxWxH): 30" x 22" x 14"
  • Weight: 132lbs
  • Speed: ~3mph (~270 feet per minute)
  • Axle Mount: Direct Mount (DM)
  • Capacity: Approximately 200lbs

Prebuilt Configuration

  • No extra payload – running robot at ½ to ¾ speed for max efficiency
    • Drive straight – 10 amps
    • Pivot Turn concrete - 45 amps
    • Gradual Turn – 15-20 amps
    • Uphill (loading dock ramp) - 15-20 amps
  • 200 lb payload - running robot at ½ to ¾ speed for max efficiency
    • Drive straight – 15 amps
    • Pivot Turn concrete - 120 amps
    • Gradual Turn – 40-50 amps
    • Uphill (loading dock ramp) - 30 amps

Video

Shipping

  • This item is already assembled and ready to ship. Allow 1-2 days for packaging and shipment.
  • Due to the weight, this robot will ship via freight.
  • Need it faster? Contact us

Custom ready to ship all-terrain robot. This heavy-duty robotic platform is powered by wheelchair motors and is built to handle difficult terrain. Fast, powerful, and capable of carrying large payloads, this is an ideal all purpose robotic platform!
