- Dimensions (LxWxH): 32.5" x 28.5" x 10.5"
- Weight: 92 lbs.
- Speed: ~ 4 mph (~350 feet per minute)
- Axle Mount:Single Bearing (SB)
- Capacity: up to 50lbs.
- This robot comes assembled, tested, and ready to run.
- Includes custom aluminum chassis, hardware, wiring, and electronics
- Gear Motors: Six (6) IG52 24V DC 136RPM Gear Motors
- Wheels: Three (3) 12mm bore 10" Pneumatic Wheel and Shaft sets
- Battery: Two (2) Interstate 12V 18Ah SLA Battery
- Motor Controller: Sabertooth Dual 32A RC Motor Driver
- Control System: FLYSKY FS-i6 2.4G 6CH Transmitter and Receiver
- This robot is already assembled, please allow 1-2 business days to prep the robot for shipment.
- Due to the size and weight of this robot, freight shipping may apply.
- Contact us if you need expedited shipping.

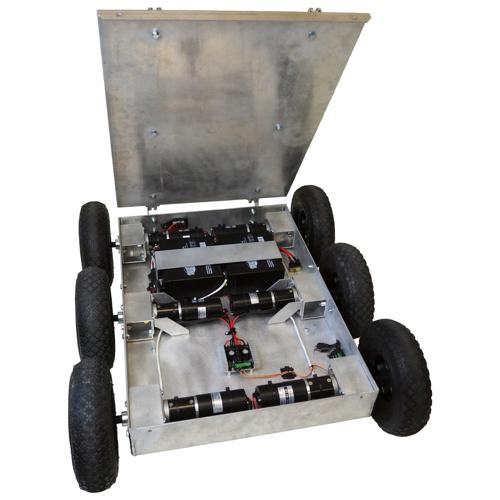

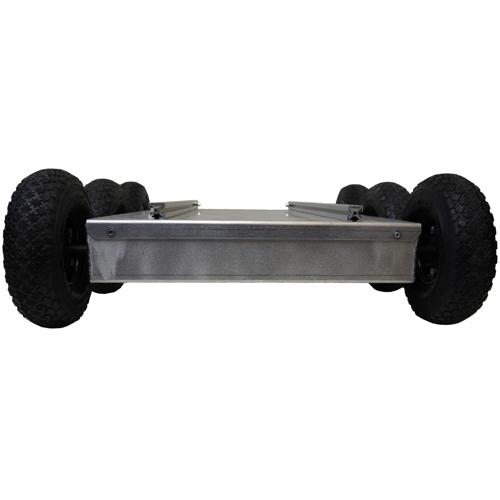

This is a ready to ship custom prebuilt 6 Wheel-Drive All-Terrain Robot based on our IG52-SB4-T Custom size 4WD All-Terrain Robot (Two extra motors, wheels, axles, mounts, etc have been added to make it 6WD). The benefits of this 6WD platform over its 4WD counterpart include an increased payload capacity, higher torque capability and reduced current draw from its offset center wheels in day to day operations. It also features modular 80/20 aluminum extrusions mounted on the top panel at 10" center-to-center.
This robot has already been assembled and is being sold in the configuration below. If further customization is required, please fill out our custom robot request form.
All of our ATR's are designed and fabricated in North Carolina, USA, and are fully supported by SuperDroid Robots, an industry leader in robotics. This is a variation of our customizable chassis kit, equipped with powerful motors and wheels to allow the platform to traverse most terrain while maintaining a steady speed.
CUSTOM Prebuilt - 6WD IG52-SB-T Custom Size Robot - SOLD
- Product Code: TP-500-360
- Availability: Ready to ship!
- This item does not qualify for free shipping
