Description:

Manufactured by HOKUYO

The Hokuyo UTM-30LX-EW scanning laser rangefinder is a small, accurate, high-speed device for outdoor robotic applications. This model uses Ethernet interface for communication and can obtain measurement data in a wider field of view up to a distance of 30 meters with millimeter resolution. To ensure reliable measurement results in adverse conditions such as rain, fog, snow, or dusty environments, this device uses multi-echo technology for detection. It allows for receiving multiple reflected waves per transmitted laser pulse in order to obtain usable measurement data. The result is very reliable object detection and 2-D mapping of the environment in all weather conditions.

Specifications:

• Multi-echo detection for outdoor use
• IP67 protection
• Power Source: 12VDC (+/-10%)
• Scanning Range: 0.1 to 30 meters
• Scanning Angle: 270º
• Scanning Accuracy: 0.1 to 10 meters is +/-30mm, 10 to 30 meters is +/- 50mm
• Scanning Time: 25msec/scan
• Size (L x W x H): 62mm x 62mm x 87mm

Applications

• Navigation and obstacle detection (Guide path planning for mobile robots and autonomous systems)
• Object positioning (control docking processes of AGVs, AGCs)
• Object Profiling (cargo containers, pallets for loading & unloading)
• Object measurement and detection (volume of packages, pallets, flow measurement of bulk materials)
• Area monitoring (building security and entrance ways)

Documentation and Support:

• UTM-30LX-EW Product specification
• UTM-30LX-EW Communication Protocol Specification
• UTM-30LX-EW IP address changing tool

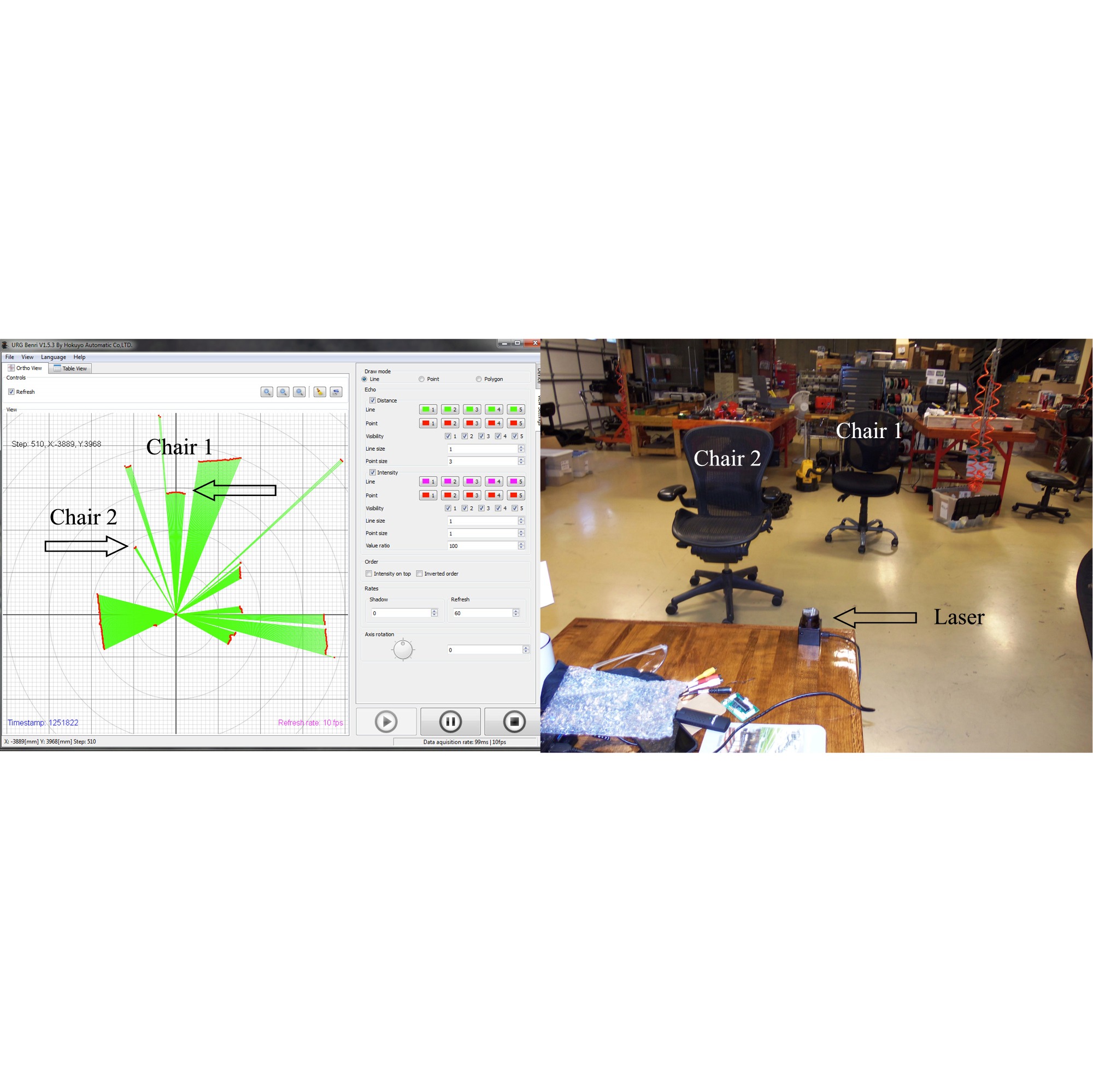

• Data viewing tool (go to download page)
