HRLV-MaxSonar-EZ1 Ultrasonic Range Finder
Item Details

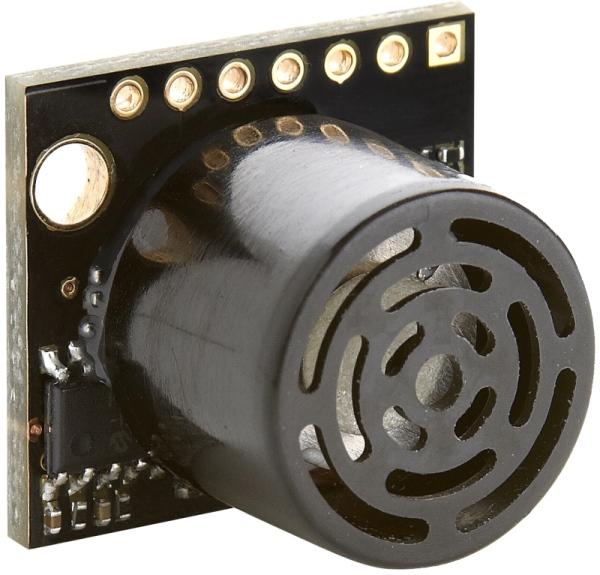

HRLV-MaxSonar-EZ1 Ultrasonic Range Finder
Item Name:
HRLV-MaxSonar-EZ1 Ultrasonic Range Finder
Item #:
TS-046-101
Manufacturer:
MaxBotix
MPN:
MB1013
Your Price:
$34.95
$31.95/ea. - Qty: 5 - 9
$28.95/ea. - Qty: 10 and above
Availability:
28 Ready to Ship!
Quantity:

Product Image Gallery:

Description:

  • Resolution of 1mm
  • 10Hz reading rate
  • Internal temperature compensation
  • Cost-effective solution where precision range-findings are needed
  • Sensor component allows users to lower the cost of their systems without sacrificing performance
  • 42kHz Ultrasonic sensor measures distance to objects
  • RoHS compliant
  • Read from all sensor outputs: Analog Voltage, RS232 or TTL Serial, and Pulse Width
  • Virtually no sensor dead zone, objects closer than 30 cm will typically range as 30 cm
  • Maximum range of 5000 mm (195 inches)
  • Tolerates outside noise sources
  • Operates from 2.5V-5.5V
  • Low 3.1mA average current requirement
  • Small, light weight module
  • Designed for easy integration into your project or product
  • Operational Temperature from -15°C to +65°C (+5°F to +149°F)
  • Real-time automatic calibration (voltage, humidity, ambient noise)
  • Option external temperature compensation HR-MaxTemp
  • Firmware filtering for better noise tolerance and clutter rejection
  • Widest beam of the HRLV-MaxSonar-EZ sensors
  • Great for people detection applications

Product Documentation:





The MaxBotix high resolution, low voltage MB1013 HRLV-MaxSonar-EZ1 is a great choice for use where sensitivity is needed along with side object rejection.
