Category
32mm Gear Motors
These Planetary Gearboxes are nominally 32mm in diameter with permanent magnet reversible DC motors. We carry 12VDC and 24VDC motors and range from 8 to 265 RPM. Several right angle gearboxes. Several motors have encoders.
Category List
Electrical/Controls Electrical/Controls
 IG32P 24VDC 190 RPM Gear Motor
Item Details
IG32P 24VDC 190 RPM Gear Motor
Item Name:
IG32P 24VDC 190 RPM Gear Motor
Item #:
TD-015-190
Manufacturer:
Shayang Ye Industrial Co., Ltd.
MPN:
IG320027X609S2R
Your Price:
$24.05
$22.85/ea. - Qty: 10 - 24
$21.64/ea. - Qty: 25 and above
Availability:
69 Ready to Ship!
Quantity:

Product Image Gallery:
IG32P 24VDC 190 RPM Gear Motor

Description:

  • Brushed permanent magnet DC motor
  • Variable speed and reversible
  • Planetary Gear Box
  • Final drive stages are steel gears (not plastic or sintered metal)
  • Tested extensively on our All-Terrain-Robots

Features and Specifications:

These specifications are listed with the "rated" values (these are the values where the motor runs at peak efficiency). The motors can deliver considerably more than their rated values, refer to datasheet for more information.

  • 24VDC
  • Reduction Ratio: 1:27
  • Rated Torque: 4.5 kgf-cm
  • Rated Speed: 192 RPM
  • No Load Current: < 130mA

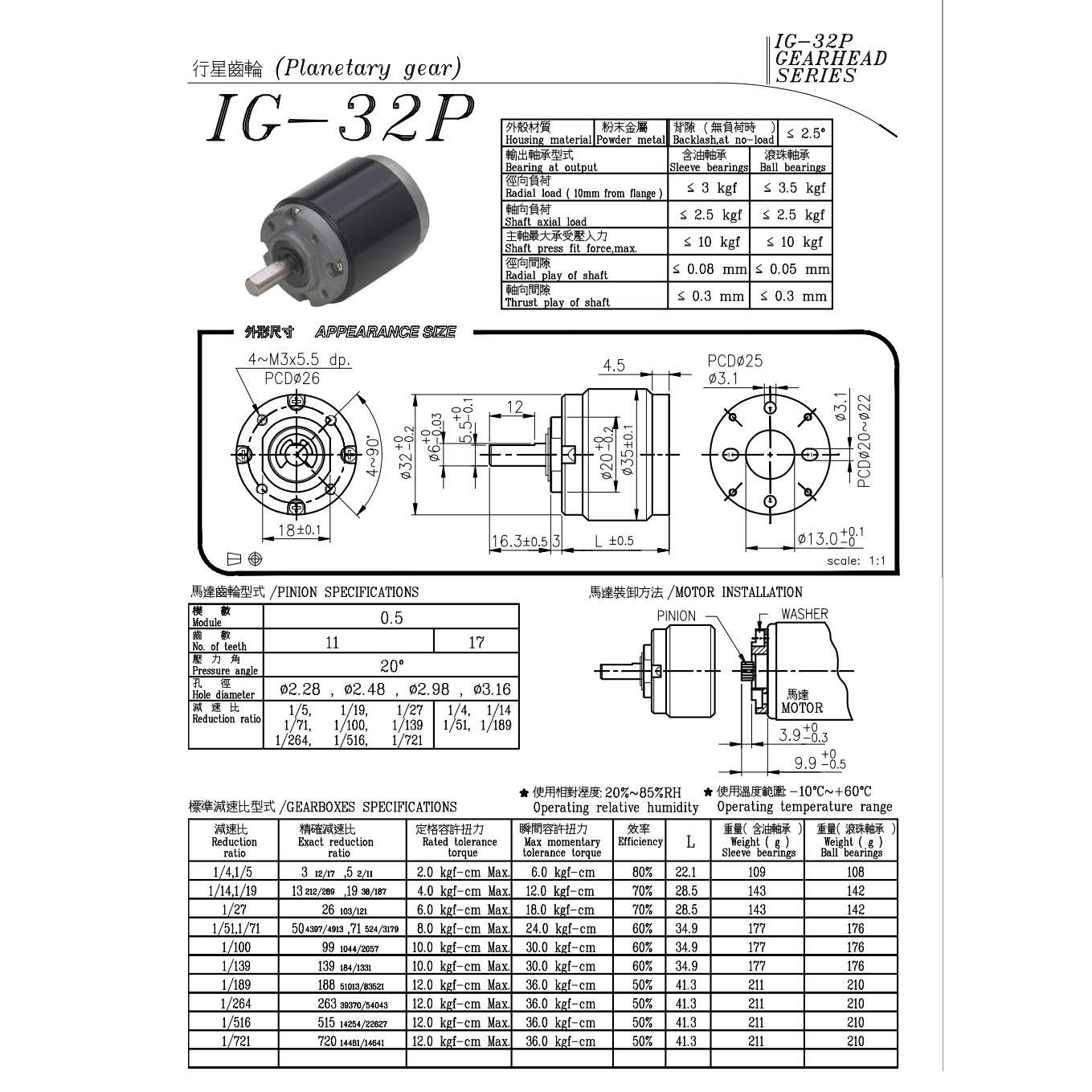

For conversion of the torque values, follow this link

Documentation and Support:

Recommendations:

We recommend controlling the motors with one of our motor speed controllers. See our motor controller support page for more information. We also recommend you use our wiring kit to wire your motors. The hookup kit will help suppress the electronic noise generated from any DC motor. See our motor wiring support page for more information.





 These brushed permanent magnet DC gearmotors have a rated speed of 192 RPM and a gear reduction of 1:27. They work great on our robots as well as your own applications. These are excellent geared motors for robots.
