IG42-SB4-EA, Amphibious 4WD WiFi Robot - DISCONTINUED
Item Details
IG42-SB4-EA, Amphibious 4WD WiFi Robot - DISCONTINUED
Item Name:
IG42-SB4-EA, Amphibious 4WD WiFi Robot - DISCONTINUED
Item #:
TP-600-180
Manufacturer:
SuperDroid Robots

Product Image Gallery:

This item does not qualify for free shipping.

This robotic kit has been discontinued. If you're interested in an amphibious platform, fill out our custom robot request form. Click here to go to our form.

Description

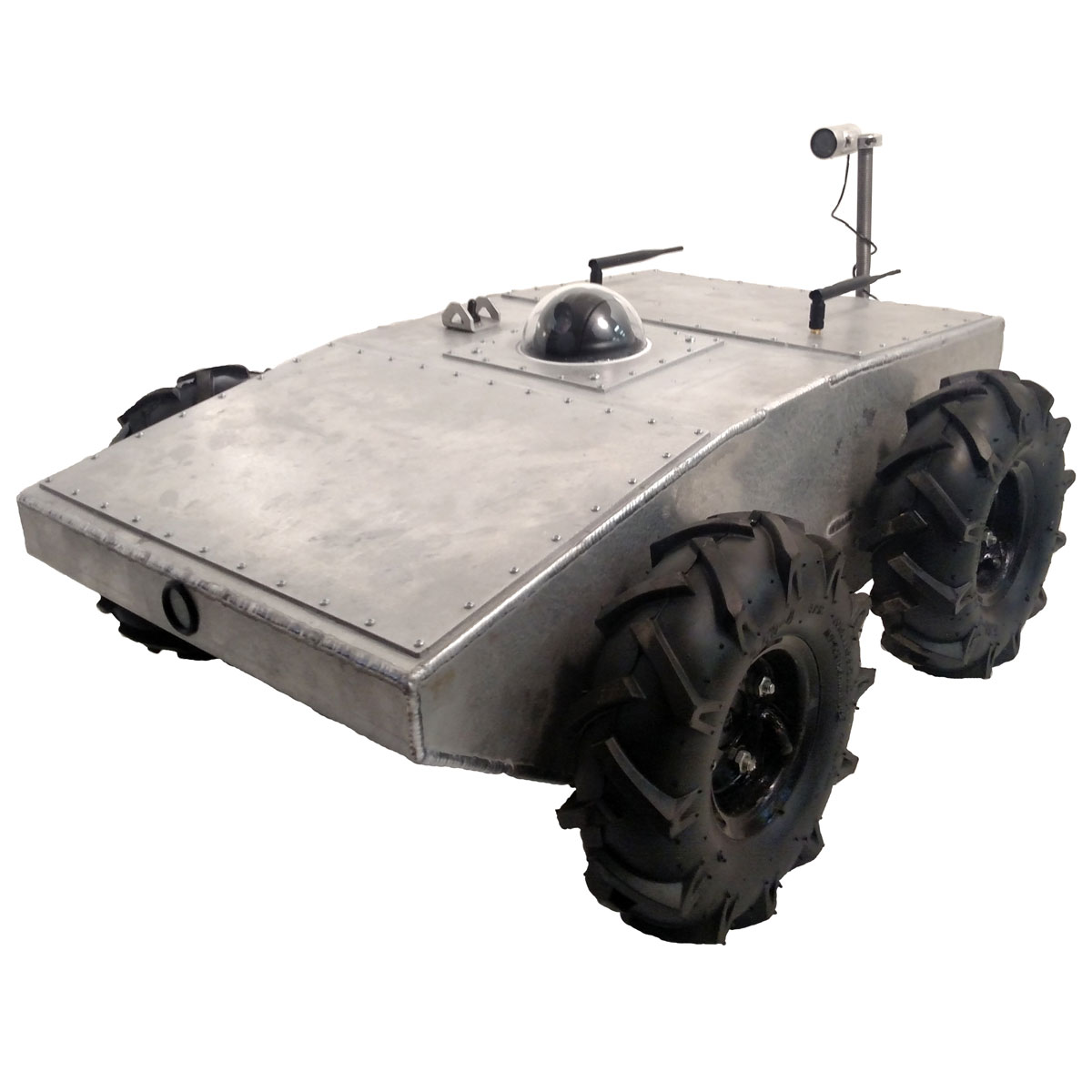

This is SuperDroid Robot's mobile Wi-Fi All-Terrain Amphibious Robot, programmed and fully assembled. The robot is completely waterproof and submersible and can navigate land and water. If the water is too deep to drive on the bottom, the robot floats and uses the wheels for propulsion through the water. It has four cameras two fixed IR cameras on the front and the back of the chassis, a 10X PTZ dome camera, and a spring-mounted IR camera for perspective driving. The robot is controlled with a PC using a Wi-Fi connection.

The Wi-Fi controlled IG42 Amphibious ATR includes the robot, program, gamepad controller, Wi-Fi Bridge, Ethernet converter, and control board. The drive, camera selection, and pan and tilt functions are all controlled as part of the control program, so you can drive and operate the camera with the provided gamepad controller or with your mouse and keyboard. If you set up your router with port forwarding, you can control and monitor your robot from anywhere that has internet access with your program. A VB.NET application is provided.

The robot itself is an extremely rugged well-built robot. The wheels are axle mounted and are supported using sealed ball bearings. This is a rugged frame made of 1/8" thick aluminum and includes our IG42 gear motors. The aluminum is all cut using CNC Plasma table for an exact fit-up and then hand welded.

As configured it has a ground clearance of about 3.1". The standard motors drive this robot up to 200 feet per minute. It includes the Wi-Fi Custom Control Interface Package. Powered by (2) K2 12V 10Ahr LiFePO4 batteries (with charger provided) providing 1-4 hours of use on a single charge (depending on use).

Applications

  • Remote Monitoring - Compact, lightweight and fast you can control this robot from anywhere
  • Remote Surveillance - The 360 Pan and 90 degree tilt camera with 10X Optical Zoom allows the robot to see everything.
  • Entry into difficult areas - This 4WD robot has the ability to traverse many obstacles that often stop other robots, including water.

Standard Configuration

This robot comes standard with the following features. Contact us if you would like a custom configuration of this robot.

Documentation and Support

Video


Completely waterproof and submersible, this is our WiFi controlled IG42 SB Amphibious robot. It features four cameras, including a 10x PTZ dome camera and comes assembled and ready to run; no programming necessary.
