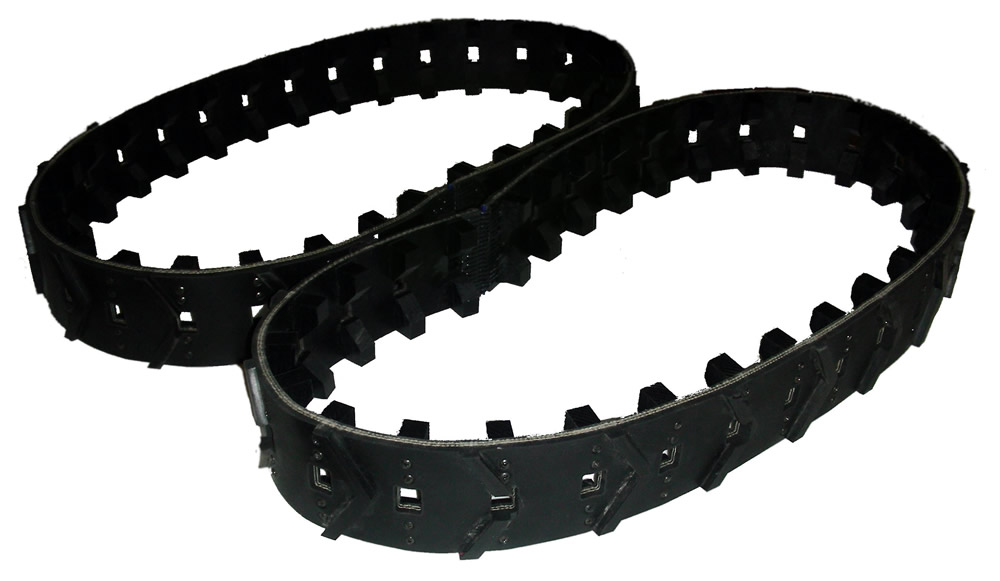

This is a complete set of matched tracks. You need 1 of these for the LT2 or LT2-F. These tracks are a more aggressive pattern than the standard LT2 tracks.
The LT2 tracks are designed specifically for the LT2 Tactical Surveillance Robot. These tracks are designed and built to take extreme abuse. They are the same tracks that passed the rigorous NIST qualification testing. The guide cleats are tapered and made of black UHMW. The wheels are also chamfered to match the guide cleats. These LT2 tracks do a excellent job of staying on track in the harshest of situations.
The tracks are ~2 7/8" wide and have CNC machined timing holes on them to match the LT2 drive wheels (they will not fit the original LT chassis or wheels). The tracks have UHMW guides attached to the sides for better tracking using a custom CNC made jig. The track is spliced together with a alligator clip. The nominal center to center distance of the wheels are 19 7/8". These tracks are a more aggressive pattern than the standard LT2 tracks. They are thicker and have a more aggressive patter for climbing, but they will result in higher current draw and more vibration than the standard LT2 Tracks.
The track set weighs ~ 6.5 pounds and is built to order. Please allow 1-3 weeks for shipment.
Beacons are mounted on walls or ceilings to measure distance to other beacons and “hedgehog” using ultrasonic pulses. They communicate with router wirelessly in ISM band. Powered by LiPo battery or USB. Indoor Positioning System (IPS)
This is the chain and sprocket kit for the IG52-DB4 robot platform. It includes the sprockets, 6 feet of #25 chain, and 4 connecting links.
