Mecanum Wheel Vectoring Robot - IG52 DB
Item Details
Mecanum Wheel Vectoring Robot - IG52 DB
Item Name:
Mecanum Wheel Vectoring Robot - IG52 DB
Item #:
TP-158-004
Manufacturer:
SuperDroid Robots
Adjusted Price:
$1,897.41/ea. - Qty: 3 - 5
$1,797.54/ea. - Qty: 6 and above
Availability:
Built to Order: 3-7 Days
Quantity:

Product Image Gallery:

The image gallery displays robots built using this platform.

If assembly is chosen as an option below, this item will not qualify for free shipping.

Description:

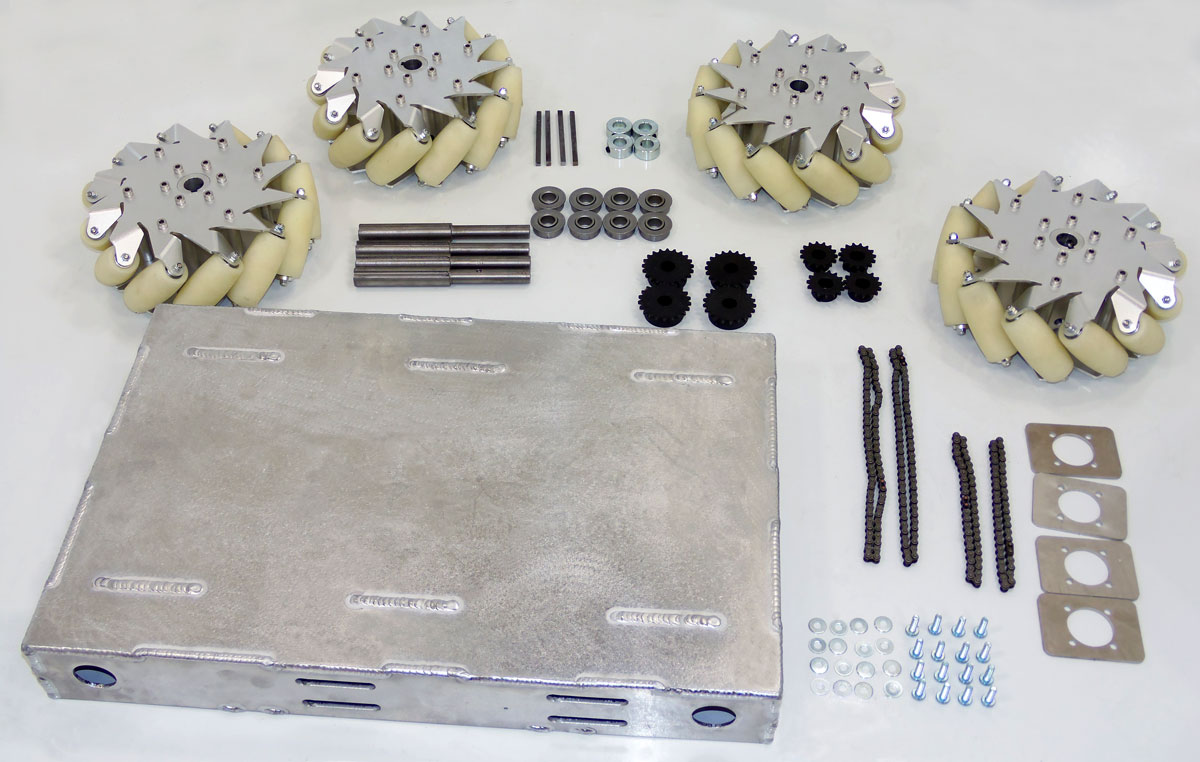

This mecanum wheel robot platform is designed and fabricated in North Carolina USA and fully supported by SuperDroid Robots, an industry leader in robotics. This robot kit includes the CNC cut 4WD base intended for our IG52 gear motors and Nexus Mecanum wheels or omni directional wheels. This kit is perfect for creation of an Autonomous robot. The chassis is a rigid gusseted aluminum frame (1/8") that is precisely fabricated using CNC equipment. Each wheel is supported by two flanged, double-sealed ball bearing for extra support and chain driven. It is designed for any of our planetary IG52 gear motors with or without encoders. This platform is also specifically designed for chain driving with Nexus mecanum wheels and hubs (listed in the options below). This robot is a vectoring version of the IG52 DB Heavy Duty ATR. See our vectoring robot page for more details about our All Terrain Robots. If you need this Programmable robot customized beyond the provided options below, Contact us .

Standard Configuration:

  • Mecanum Vectoring Robot Platform Base - IG52 DB
  • All the electrical connectors, wires, etc. and hardware needed to get you started
  • 8 inch Mecanum wheels and custom shaft set
  • IG52 24V 136RPM gear motors. (Qty. 4) (different motors can be selected in the options below)
  • Sabertooth 2x25A Motor Controller (Qty. 2) One per two motors
  • 12V 18Ah SLA battery (Qty. 2) of capacity providing a 2-5 hours of operation depending on use (Additional battery options are available as options)
  • Includes battery charger
  • Unassembled (assembly can be selected as an option)
  • Specifications of this configuration:
    • Drive Method: Chain drive with a 15:21 reduction (gear motor to drive wheels).
    • Axle Mount: Dual Bearing (DB) - the axles are mounted on two sealed ball bearings.
    • Speed: 200 ft/min (with 136 RPM motors, its 15:21 reduction, and 8" wheels). Different motors can be selected below to adjust the speed. Use our Robot Speed Calculator for calculating the speed with different motors.
    • Dimensions (LxWxH): 24.2 x 19.7 x 8 inches (wheel height, without batteries).
    • Weight: Approximately 60lbs.
    • Capacity: Payload of approximately 200 lbs. (smooth floor).

Available Options:

(Selected Below)

The standard items and options are listed below. They are listed as links and can be clicked to view further details. We offer many different motors, motor controllers, batteries, etc. so you can configure the robot to your exact needs. The weight of the robot, its capacity, speed, etc. depend on how the robot is configured. The item details of the options listed below will specify weights, sizes, etc. The default options listed below are what we recommend as a good starting point. Contact us if you need help selecting options or need custom configuration.

This robot can be configured with encoders used for telemetry and/or speed control. They are very useful if you are planning on making your robot semi-autonomous. Our motors use hall-effect encoders.

For more information, check out these blog posts

Contact us if you need help selecting options or need a custom configuration.

Documentation and Support:

Delivery:

  • This item usually ships within 3-7 days depending on volume
  • Assembly adds a couple more days
  • Need it faster? Contact us

Videos:


Item Options - Customize
Select an option by clicking on its button. To see more details about the option select the option name, selecting 'more details' in the pop-up will take you to that options product page. Default selections (if any) are pre- selected for you. Click on the update button below to see the price with your selected options.

These are standard items that are required. They are checked and grayed out indicating that they are not optional and cannot be unchecked

These are the standard included items for this robot kit, please leave all of them selected unless you are sure you do not need them

The recommended components for making up the shaft, wheels, and hubs are listed below. If you already have some of the components you can remove them.

Select the motors you desire with your kit.

Select the battery for running the motors. Make sure to match your battery voltage with the voltage of the motors you are using.

Select this option if you want a customized battery mount(s) that will fit the battery(ies) you selected above.

No Battery Mount
Customized Battery Bracket(s) (Add $25.00)

Select this option if you want us to include an appropriate charging system with your selected robot batteries

No Battery Charging System
Battery Charging System (Add $49.90)

Select the motor controller you want to use.

If you selected motors with encoders, you will likely need additional components to complete the assembly. See description above for more details.

Select optional accessories.

Assembly of the robot chassis, motors, wheels, and wiring.

Unassembled
Assemble Mecanum Robot Kit (Add $380.00)
Assemble Mecanum Robot Kit with Encoders (Add $500.00)
An Asterisk '*' indicates that one or more options is Out of Stock!
Item Price
Adjusted Price
$1,997.27




This is a direct drive 4WD base Programmable robot kit that uses Nexus mecanum wheels. It is an Arduino robot platform for indoor robotics. It can vector in any direction. Includes a choice of an authentic Arduino for making a great Autonomous Robot.
