 Miniature Absolute Magnetic Shaft Encoder
Item Details

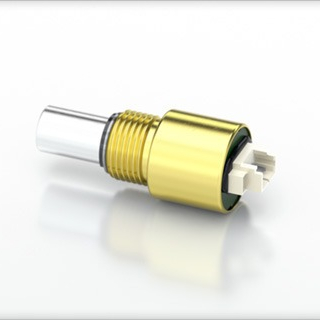

Miniature Absolute Magnetic Shaft Encoder
Item Name:
Miniature Absolute Magnetic Shaft Encoder
Item #:
TE-289-000
Your Price:
$79.52
Availability:
13 Ready to Ship!
Quantity:

Product Image Gallery:
Miniature Absolute Magnetic Shaft Encoder

Description

This is a kit that comes with one encoder and one encoder cable.

This is the Analog 10-Bit, 1/4" Dia Shaft, No Torque.

The MA3 is a miniature rotary absolute shaft encoder that reports the shaft position over 360° with no stops or gaps.Analog output provides an analog voltage that is proportional to the absolute shaft position.

Pin Out

Pin Description Color
1 +5VDC power Orange
2 Analog / PWM Blue
3 Ground Brown

Specification

Analog output is only available in 10-bit resolution. The analog output voltage is ratiometric to the power supply voltage and will typically swing within 15 millivolts of the power supply rails with no output load. This non-linearity near the rails increases with increasing output loads. For this reason, the output load impedance should be ≥ 4.7kΩ and less than 100pF. The graphs below show the typical output levels for various output loads when powered by a 5V supply.

Output of analog encoder

Documentation





 The MA3 is a miniature rotary absolute shaft encoder that reports the shaft position over 360° with no stops or gaps. Comes with Plug
