RP2W Two Way Remote Presence Robot - DISCONTINUED

  • RP2W Two Way Remote Presence Robot - DISCONTINUED
The gallery displays different options for this robot.

This robot has been Discontinued.

Don't worry, we have a large variety of robots to choose from! Feel free to check out our Robot Kits!

Applications

  • Video Conferencing - Allows the remote user to drive the robot around the office anywhere within the WiFi network.
  • Mobile Robotic Platform - Eliminate expensive air travel, attend meetings using this mobile video conferencing robot. Mobile robotic platform allowing the user to drive with wireless internet connection and video conference.

Standard Configuration

This robot comes with the recommended and most popular set up. By changing, adding or removing features at the bottom of this page you can configure the robot to suit your needs and budget.

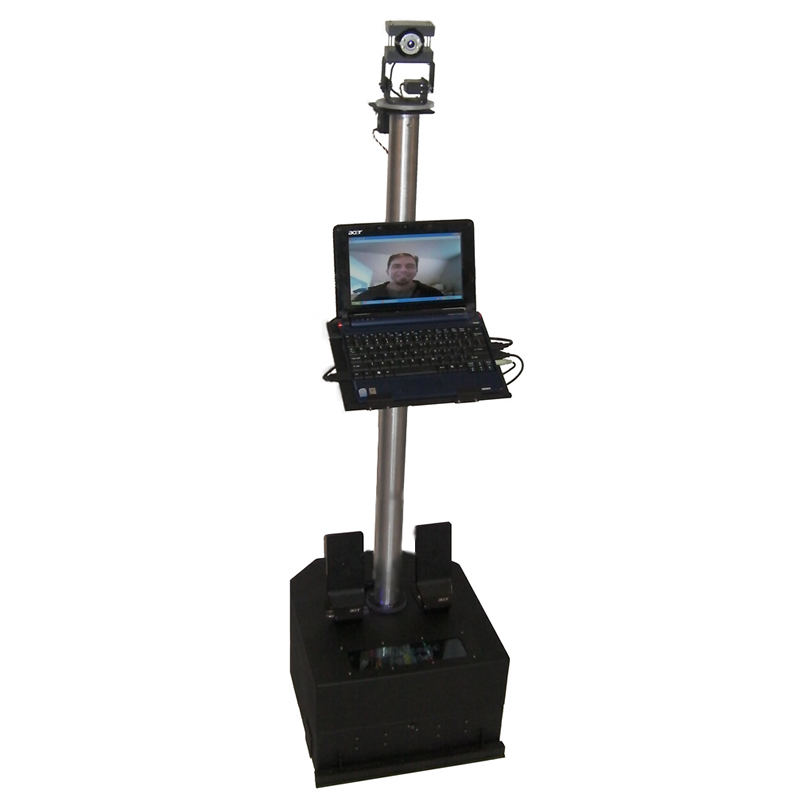

  • Platform: Standard assembled robot as pictured.
  • Chassis: Enclosed 2WD chassis kit.
  • Camera System: 360+ degree tilt, 150+ degree tilt with USB camera mounted on a mast.
  • Batteries: 2 Sealed 12V 22Ahr Batteries built into the robot. The batteries are run in parallel for longer run time.
  • Charging System: A jack on the back of the robot that you manually plug into using a 12VDC charger.
  • Motor Controllers: 2 PWM Motor Controllers.
  • Motors: 2 IG42 Gear motors
  • Sensors: Front and Rear ultrasonic non-contact sensors, front bumper switch.
  • Laptop Charging: DC Battery charger for laptop (Runs off robots main batteries).
  • Computer: Fully configured compact laptop computer mounted to Robot's mast.
  • Supported Operating Systems: Windows XP, Vista, Windows 7 or Windows 8
  • Audio: PC Speakers
  • Remote User Items:
    • USB gamepad controller.
    • Installation CD with Remote SDR custom RP2W software including instructional Videos.
    • Support Setting up the robot.
  • Assembly: The entire robot will be assembled, configured, tested, and supported by our professionally trained staff here in NC.

Note: The Remote PC for the remote user is NOT included. A standard laptop or PC with a webcam works fine.

Contact us if you would like a custom configuration of this robot.

Video

The RP2W (Remote Presence 2-Way) is a remote presence robot which allows professionals in different geographical locations to teleconference and establish a remote presence via a mobile robot. Real-time video allows for detailed viewing and audio of the surroundings. The robot allows mobility within the workplace. The robot, made by SuperDroid Robots Inc. has two-way video, two way-audio, non-contact sensors, and battery voltage monitoring. All of this is accomplished using wireless technology. The robot is controlled from a remote location using a personal computer and a gamepad controller.

The robot is controlled through the office/remote location using a WiFi 802.11b/g network. The office router then allows the remote user to port through to the robot from the internet. SuperDroid Robots RP2W control software establishes a connection to the robot so the remote user can command and control the robot and view the camera. If for any reason the remote connection is interrupted or broken the robot will detect the lost connection and safely stop driving. The robot will automatically resume when the connection is re-established. Connecting the robot to the office computer is simple, it's a standard laptop so you scan for your wireless router and connect to it. The Laptop should be given a static IP address to allow the remote user or router to easily find the robot's laptop.
