Category
Equipped with cameras, these robots are made to inspect tight spaces. They go everywhere you can't (or won't) go: under houses, inside ducts, down sewers and through culverts and pipes.
Category List
SCT-32-W Adjustable Treaded Waterproof Pipe and Duct Inspection Robot
Item Details
SCT-32-W Adjustable Treaded Waterproof Pipe and Duct Inspection Robot
Item Name:
SCT-32-W Adjustable Treaded Waterproof Pipe and Duct Inspection Robot
Item #:
TP-632-020
Adjusted Price:
$11,366.15/ea. - Qty: 3 - 5
$10,767.93/ea. - Qty: 6 and above
Availability:
Built to Order: 4-8 Weeks
Quantity:

Product Image Gallery:

Images are of possible configurations of this robot, see options listed below for details.

This item does not qualify for free shipping.

Updates:

  • New designed based off the SJT-32-W (TP-632-010) provides an adjustable stances, more rugged design, and improved performance.
  • Tablet control is now using a much larger and better performing Microsoft Surface™.
  • One year warranty is now included.

Description:

This custom tracked robot is our easy to use solution for inspecting pipes, culverts, etc with a 10" inner diameter or larger. It has a full pan and tilt dome camera with 10X optical zoom mounted on the front, and an additional fixed camera on the back for reverse mode. The Treaded Waterproof Pipe and Duct Inspection Robot is controlled with a tablet and can be connected either wirelessly or/or tethered based on your selection of controls (see options below). The image from the camera is displayed on a Microsoft Windows Surface touch screen tablet display. The mobile robot (TP-632-020), is programmed and fully assembled complete with remote and charger. No additional equipment is needed to get started!

The robot has a PTZ dome camera mounted on the front, so you can see where you are going and inspect everything around the robot. The pan goes 360 degrees and the tilt is 0 to +90 degrees. The camera has a 10X optical zoom. A second fixed camera is provided that faces in the rear to check on the tether and back out of the pipe or culvert. All the camera functions are controlled from the remote as you stream the video.

The tracks and drive motors are in individual self-contained assemblies. With this design it allows the robot to have two different track configurations. One configuration is for narrow pipes (as small as 10" ID). The other is for larger pipes so that the robot has more stability and the camera can sit up higher in the pipe.

The inspection robot includes the robot, tablet remote with program installed and configured. An optional tether with cable spool can be selected for easy deployment of the robot and use the hand crank to neatly wind the cable back up. LED lights are also included on the front and back of the robot to illuminate whatever the camera is facing. The lights can be remotely turned on and off using the controller.

The robot itself is extremely rugged and well-built. The tracks are molded without a splice, axle mounted and direct driven by powerful right angle 32mm gear motors. The chassis is rugged and made of aluminum. The aluminum is all cut using a CNC Plasma table for an exact fit-up and then hand-welded.

Everything is included and configured. Connect the robot and tablet via the tether, turn it on, and drive the waterproof pipe inspection robot with the tablet while watching live video streaming. The tablet program can be used to record the video feed or take still pictures.

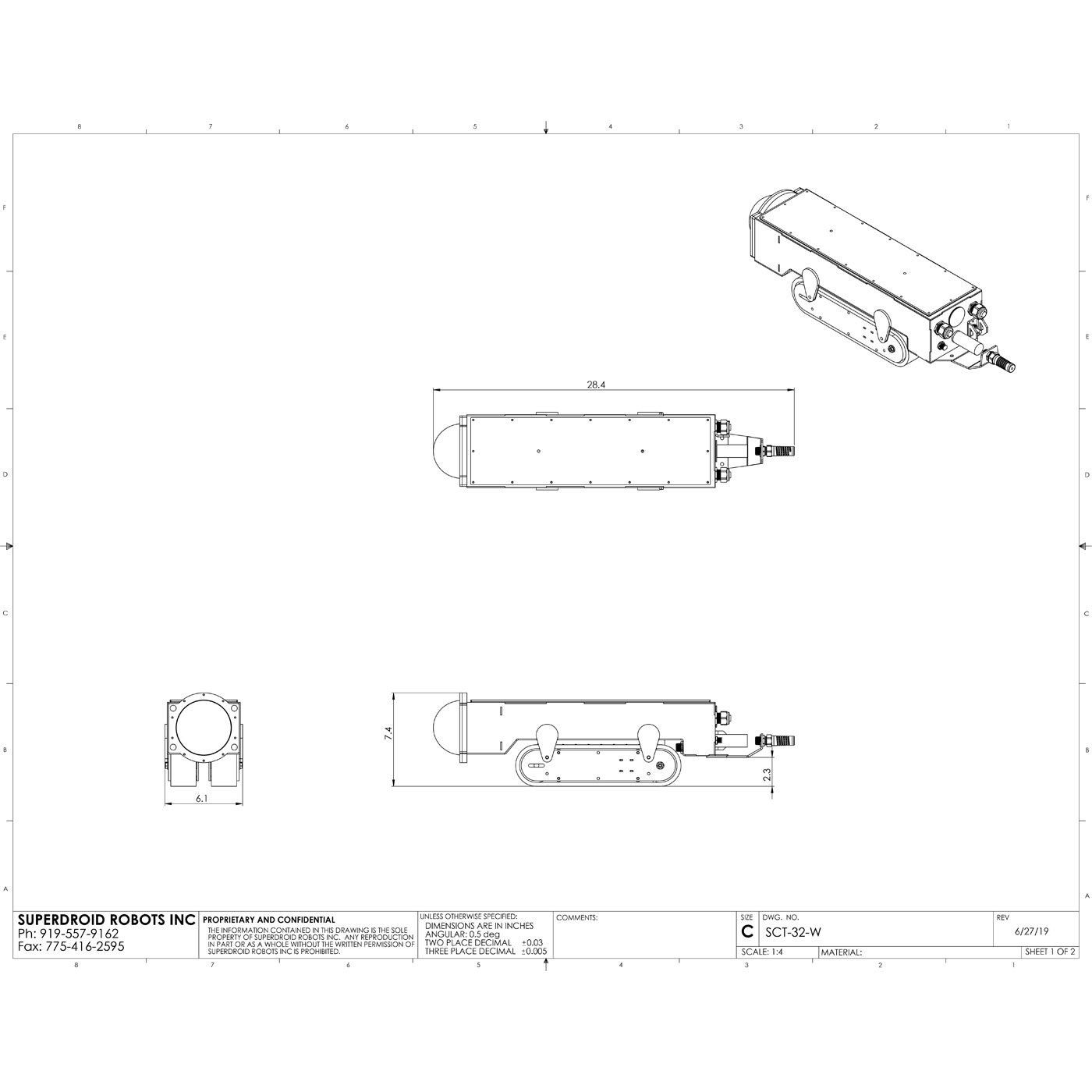

As configured, it has a ground clearance of about 2.4" (the lowest point being the back of the chassis). The width with the robot (measured from widest point in narrow track configuration) is about 7.1" and the length is about 26.3". In the wide track configuration the width is about 11.4". The robot is equipped with 2" wide molded tracks and custom wheels. It is specifically designed to fit into pipes 10 inches ID and larger. The robot weighs about 10 pounds as configured. The robot is powered by a Lithium-Ion battery (with charger provided) providing up to three hours of use on a single charge.

Applications:

  • Remote Inspection - Remotely inspect areas that are not easily accessible to people. Record the video feed on the tablet!
  • Entry into difficult areas - This tracked robot is very quick and has the ability to traverse many obstacles that often stop other robots.
  • Pipe and Culvert Inspection - Compact and lightweight to easily fit down pipes, ducts, culverts, etc. as you control this robot from the supplied remote

Specifications:

This robot comes with the recommended and most popular set up. If you need it customized, let us know and we will be happy to provide a quote.

  • Speed: 45 feet/sec
  • Runtime: Up to three hours
  • Camera System: PTZ dome camera 10X optical zoom.
  • Audio: None
  • Interface: Custom Tablet Controller. A 500 foot cable spool with rotary union is also included for easy deployment and winding of outdoor rated cable. (other control options can be selected below).
  • Robot Weight: 10lbs as configured
  • Dimensions: 7.1" (or 11.4") wide x 26.3" long x 7.8" high. Designed to go into 10 inch ID pipes or larger.

Documentation and Support:

Delivery:

  • This item is Built to Order and usually ships in 4-8 Weeks.
  • Due to the size of this item, freight shipping is typically required. We will contact you after checkout with freight costs and arrangements.
  • Need it faster? Contact us

Control Options:

We offer two control options for this robot. Both are tethered and both include the tablet, which is used as the controller and video display. We have upgraded the tablet to be the Microsoft Surface™ The only difference is the 500 ft cable comes on a cable spool with rotary union while the 250 ft cable does not. We use high quality outdoor rated tethers with waterproof connectors.

  • Tethered System with 250ft Cable: Includes 250 ft cable but does not include cable spool.
  • Tethered System with 500ft Cable Spool: Includes 500 ft cable and cable spool. If you need a shorter cable, please contact us.

Other Options:

  • Encoder Option: This option allows you to keep track of the distance the robot has traveled and displays the information on the tablet controller. This is great for keeping track of where you are when you see something of note with the inspection camera. The distance is measured by keeping track of the pulses from each motor rotation.
  • IMU Option: This option allows you to know how inclined the robot is. When you lose sight of the robot you lose orientation of the position of the robot. With this you are going to see the pitch and roll axis and you can prevent flipping the robot over.
  • Custom Paint Option: The robot comes standard painted SuperDroid Blue. If you would like a different color select the custom color and we will contact you for the paint color code.

Warranty:

  • SuperDroid Robots provides a 1 year warranty after shipment. See data sheet for full details.
  • Extended warranties, spare parts, and maintenance training is available, contact us with specific needs. Service agreements are also available.

Videos:

Item Options - Customize
Select an option by clicking on its button. To see more details about the option select the option name, selecting 'more details' in the pop-up will take you to that options product page. Default selections (if any) are pre- selected for you. Click on the update button below to see the price with your selected options.

Select the control option. For this model we only offer tethered control. Please review description above for further details.

Tethered System with 250ft Cable (Add $3,226.91)
Tethered System with 500ft Cable Spool (Add $5,035.21)

Add Encoders to the robot. The distance the robot travels will be sent back to the tablet to help keep track of how far you have driven.

No Encoder Feedback
Provide Encoder Feedback (Add $720.00)

The Robot comes painted SuperDroid Blue. If you want your company paint color, we can do that.

SuperDroid Blue Paint
Custom Paint Color - We'll contact you for color (Add $129.00)

Add IMU to the robot. The orientation of the robot will be sent back to the tablet allowing you to know if you are about to flip over the robot.

No Orientation feedback
Orientation Feedback (Add $1,500.00) (Add 2 days)
Item Price
Adjusted Price
$11,964.37




This easy-to-use tracked robot handles diameters as small as ten inches. It has a PTZ front camera with 10X optical zoom. This robot is controlled using a 500-foot tether on a cable spool, a Windows Surface tablet.  Replaces SJT-32-W, TP-632-010.
