Steel D-Shaft Sprocket for #25 Pitch Chain - 15 Teeth
Item Details
Steel D-Shaft Sprocket for #25 Pitch Chain - 15 Teeth
Item Name:
Steel D-Shaft Sprocket for #25 Pitch Chain - 15 Teeth
Item #:
TD-199-015
Your Price:
$17.60
$16.72/ea. - Qty: 8 - 19
$15.84/ea. - Qty: 20 and above
Availability:
348 Ready to Ship!
Quantity:

Product Image Gallery:

Description:

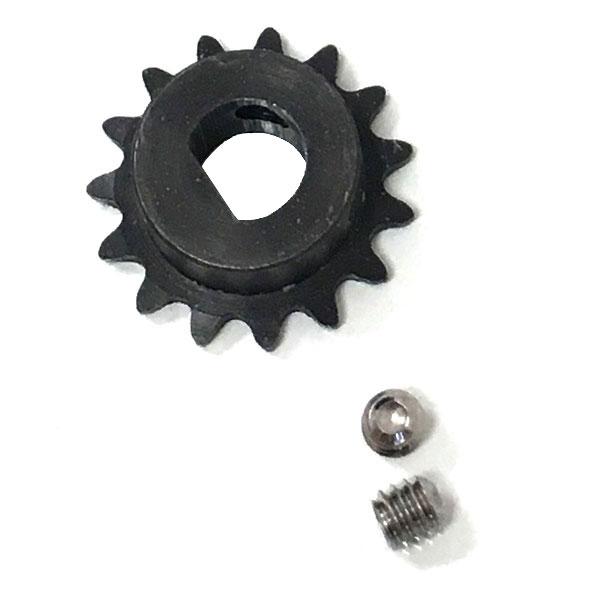

These sprockets are custom designed by SuperDroid Robots to fit the 12mm D shaft on our IG52 motors. They are made from high quality steel and have a black-oxide coating. No need to drill into the motor shaft and use rollpins with these sprockets. They have two set screw holes opposite the flat section of the D hole. Each sprocket comes with two 1/4-20 set screws. We use these with our IG52 DB ATR.

Note: These are supposed to be a snug fit on the motor shaft. They may require a little bit of filing to get them to fit.

Documentation and Support





These sprockets are custom designed by SuperDroid Robots to fit the 12mm D shaft on our IG52 motors. They are made from high quality steel and have a black-oxide coating.
