Snail actually follows the line!
The 21st century is said to be the age of robotics. Tamiya explores this new trend with the release of an assembly robot snail. The Line Tracing Snail uses a special LED sensor to detect a black line (magic marker, etc.) drawn on a white background. It uses two small motors and rubber tires to slowly but surely move forward and turn. The body of the snail is made of transparent (HIPS) plastic to allow viewing of the intricate mechanisms inside.
This clever snail comes with Infrared LED and Photo Transistor

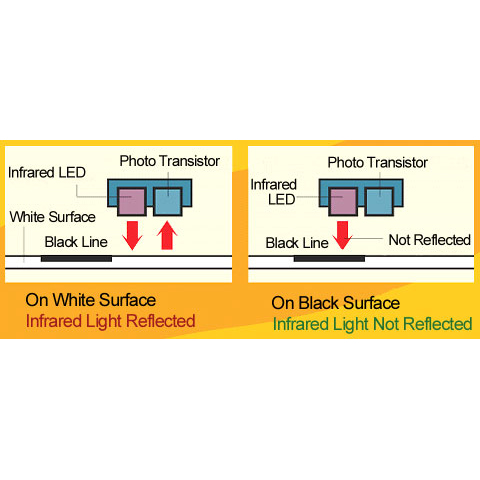

The snail emits an infrared light from the Light Emitting Diode on the underside of its chassis. A phototransistor picks up the reflection of the infrared light to distinguish black from a white surface. Transistor sensitivity can be adjusted to adapt for a variety of paper sizes and line widths.
Cute little guy ain't he!

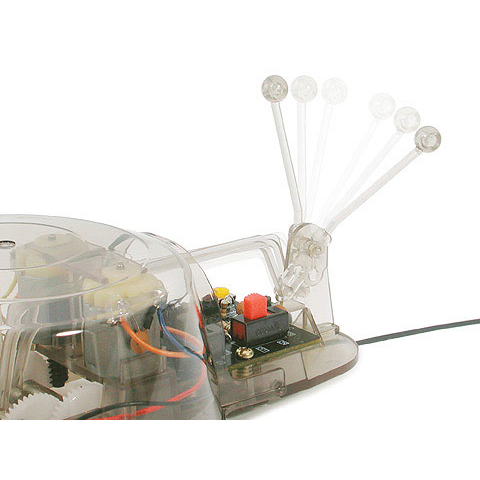

Snail eyes move in-synch with tires. Snail is capable of low/high-speed setting. The low-speed mode is suitable for fine lines and narrow areas. High-speed works best for wide areas and thick lines.
Robotics made simple and fun!

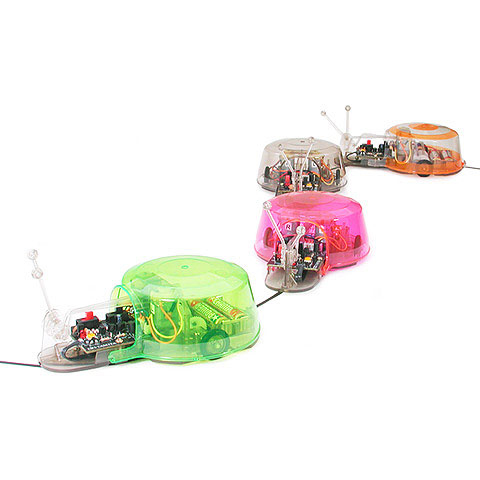

Snail follows the line without fail. Feel free to line up a family of snails for even more line tracing, robotic wackiness. The transparent body can be painted for added style. (picture features snail painted with Mini-4WD fluorescent paint).
How to draw a snail course…
Draw a line on a white surface with an oil-based black pen. Tamiya Paint Marker is ideal. Draw curve radius over 8cm, line width over 3mm.
Features and Specifications:
- Total height: 176mm
- Chassis material- ABS resin
- (2) Type 130 motors (sensor unit and motor come pre-wired).
- Max. running time (w/ alkaline batteries): low-speed- approx. 2hrs., high-speed- approx. 3hrs.
- Requires 2 AA batteries (sold as option below)
*Strong sunlight or lamp light may interfere with the sensor. Please use the product indoors or in shady areas. Adjust transistor sensitivity and line width to best suit snail running environment.
