Tamiya kits are fun, inexpensive kits you can build to begin learning about robotics and mechanical gears.
Category List
Tamiya Mechanical Dog Robot Kit
Item Details
Tamiya Mechanical Dog Robot Kit
Item Name:
Tamiya Mechanical Dog Robot Kit
Item #:
TAM-011-000
Manufacturer:
Tamiya
MPN:
71101
Adjusted Price:
$14.06/ea. - Qty: 10 - 19
$13.32/ea. - Qty: 20 and above
Availability:
32 Ready to Ship!
Quantity:

Product Image Gallery:

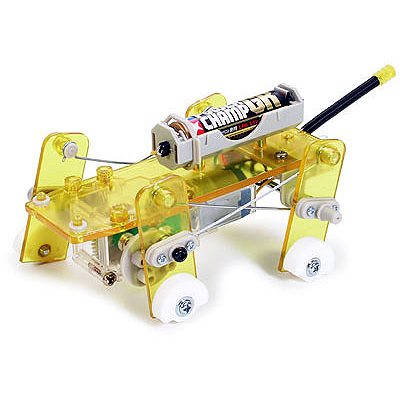

Introducing the Mechanical Dog

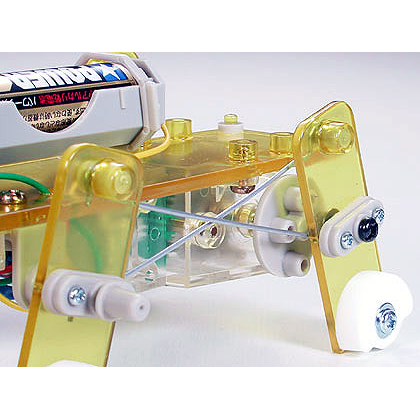

We have at last entered the age of robotics. Welcoming this new era, Tamiya presents the all-new Robocraft series, introducing a line-up of products that feature a variety of form and movement. The first item of the series is a four-legged mechanical dog with various speed controls. The dog walks by transferring motor revolution to reciprocating motion via crank and linkage rod. Main body and legs are made of transparent yellow parts to allow viewing of internal mechanisms. Construction is simple as parts can easily be attached with screws. Wiring has also been made simple. For ages 10 and above.

You Built It, You Know It

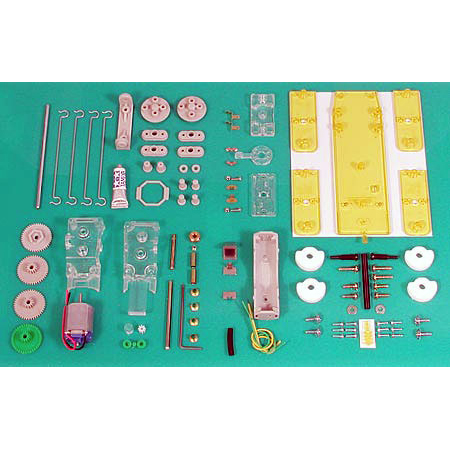

Kit lets you become familiar with the mechanics of the dog's movement. All the parts needed to construct a mechanical dog are provided. Assembly and wiring have been made simple.

The 8 Speed Doggy

4 types of strides can be selected by changing the position of the holes on crank. Put this together with 2 types of gear ratios and you've got an 8-speed puppy. Cross link rods to make movement even more fluid and real.

Proficient Paws

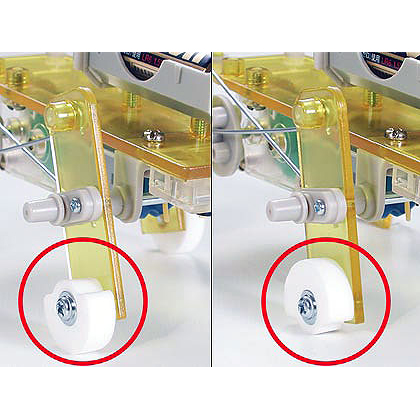

Gripping parts at the end of each leg to change position according to speed for smooth movement.

Dog of the Future

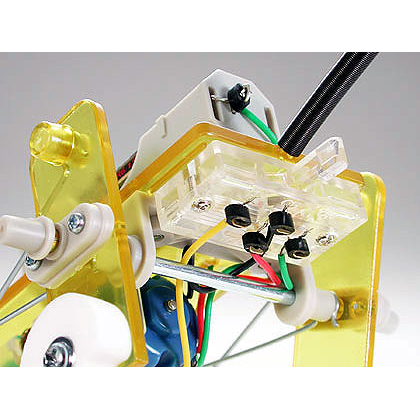

Clear switch with yellow transparent parts adds a cool, futuristic look.

Features and Specifications:

  • Total length: 165mm
  • Total weight: 100g (w/ out batteries)
  • Body material: ABS resin
  • 2 possible gear ratios coupled with 4 different strides let you choose 8 different speeds.
  • Spring tail also included.
  • Gearbox, motor, reverse switch also included.
  • Requires one AA battery (sold as option below)
  • Continuous running time with Alkaline battery- 2hrs. At low speed/1hr. At high speed.
Item Options - Customize
Select an option by clicking on its button. To see more details about the option select the option name, selecting 'more details' in the pop-up will take you to that options product page. Default selections (if any) are pre- selected for you. Click on the update button below to see the price with your selected options.
Item Price
Adjusted Price
$14.80




The dog walks by transferring motor revolution to reciprocating motion via crank and linkage rod. Main body and legs are made of transparent yellow parts to allow viewing of internal mechanisms.
