These Tamiya gear motors offer a lot for the money. They have multiple speed settings and operated from 1.5VDC to 6VDC. The DC motors are reversible.
Category List
Tamiya Universal Gearbox
Item Details

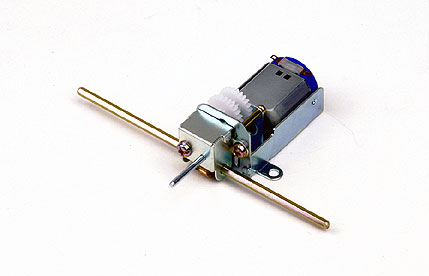

Tamiya Universal Gearbox
Item Name:
Tamiya Universal Gearbox
Item #:
TAM-005-000
Manufacturer:
Tamiya
MPN:
70103
Your Price:
$11.00  $8.80
Availability:
13 Ready to Ship!
Quantity:

Description:

The Universal Gear Box works well in a variety of applications and can be mounted several ways. A hex shaft and a threaded shaft are included to give the builder flexibility in design. Use this gear box and motor set with other Tamiya Construction and Robotics products. The plastic gears and metal gear box are all high quality. A FA-130 motor has also been included.  Add your own wheels, hubs or tracks.  This gear motor requires assembly.

Features and Specifications:

  • Gear Ratios: 101:1 269:1 719:1
  • Motor: FA-130
  • Theoretical Speed and Torque output at 3 Volts (approximate): Gear Ratio: 101:1, Speed: 128 RPM, Torque: 468 g-cm
  • Theoretical Speed and Torque output at 3 Volts (approximate): Gear Ratio: 269:1, Speed: 48 RPM, Torque: 1248 g-cm
  • Theoretical Speed and Torque output at 3 Volts (approximate): Gear Ratio: 719:1, Speed: 18 RPM, Torque: 1500 g-cm




The Universal Gear Box works well in a variety of applications and can be mounted several ways.  Use this gear box and motor set with other Tamiya Construction and Robotics products.
