Trekker Soccer Ball Catching Sensor and Brackets
Item Details
Trekker Soccer Ball Catching Sensor and Brackets
Item Name:
Trekker Soccer Ball Catching Sensor and Brackets
Item #:
TS-022-000
Manufacturer:
SuperDroid Robots
Adjusted Price:
Availability:
4 Ready to Ship!
Quantity:

Product Image Gallery:

Description:

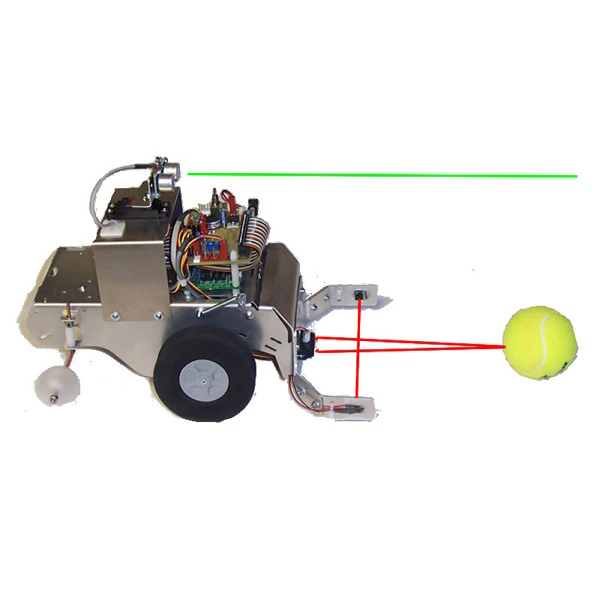

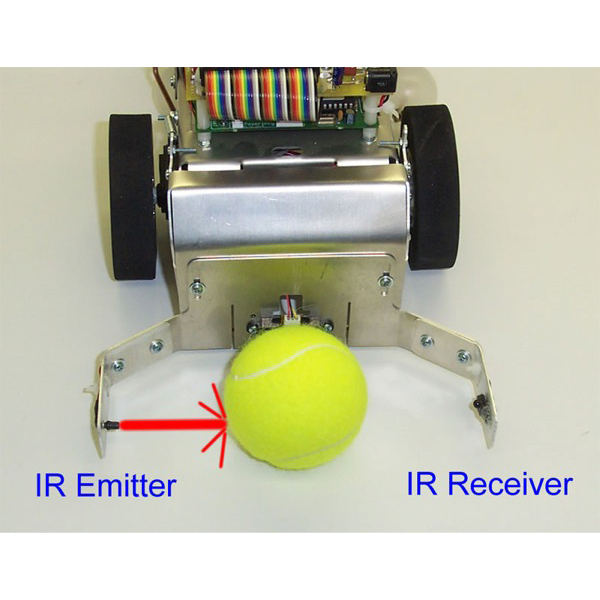

This package consists of 2 brackets that mount to the front bumper. The brackets hold a IR photo reflector, which is also included. The plow of the bumper switch is inverted for this feature as shown in the above figure. The sensor is used to detect if a ball is caught in the catcher. This kit is generally used in conjunction with a sweeping ultrasonic sensor and an Sharp GPD12 IR sensor mounted to the front bumper. These sensors are used to locate and track the ball and the ball catching sensor is used to confirm the ball has been caught.

Includes:

  • (1) 18" Wire Set (2 Blk, 2 Red, 1 Yellow)
  • (2) Cable Tie
  • (4) Crimp Terminals
  • (1) Heat Shrink, 1/4" X 1"
  • (3) Heat Shrink, 1/8" X 3/4"
  • (1) Infrared IC @ 38.0 KHZ
  • (1) IR LED
  • (1) Heat Shrink, 3/32" X 2"
  • (1) Receptacle, 4 Circuit Terminal Housing
  • (2) Aluminum, Bracket - Soccer
  • (1) Hardware Package

Item Options - Customize
Select an option by clicking on its button. To see more details about the option select the option name, selecting 'more details' in the pop-up will take you to that options product page. Default selections (if any) are pre- selected for you. Click on the update button below to see the price with your selected options.

Assembly of Trekker Ball Catching Sensor include soldering the wires to the sensors, crimping the wires, assembling sensors to the brackets, and testing the sensor.

Assy Trekker Soccer Ball Catching Sensor & Bracket (Add $15.50)
Item Price
Adjusted Price
$14.95




This kit includes two brackets that mount to the Trekker Bumper and act as a catcher for balls. It includes a sensor and the connectors to determine if the Trekker has caught the ball. This kit will only plug into V2.x OOPic II Expansion Boards.
