Video Switch Multiplexer PCB

Category

Breakout Boards and Accessories

These items can be used with your Arduino, mBed, Basic Micro, or any other microcontroller platform.

Camera Accessories

Category List

Specials

Item Details

Item Name:

Video Switch Multiplexer PCB - 4 Camera

Item #:

WC-066-004

Manufacturer:

SuperDroid Robots

Your Price:

$78.90

Availability:

5 Ready to Ship!

Quantity:

Product Image Gallery:

Description

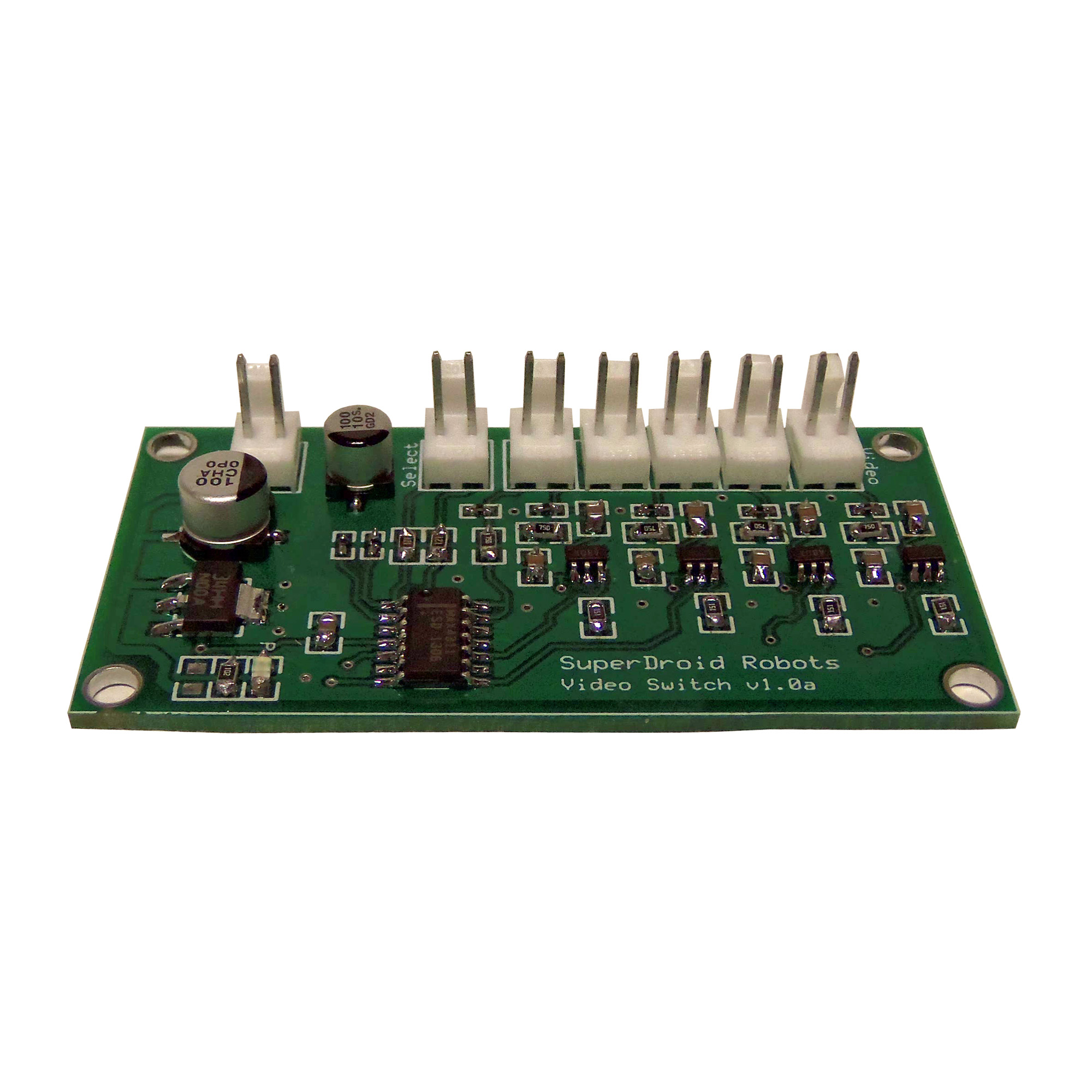

This video mux PCB module is based on Maxim Integrated's MAX4311 video mux. The module accepts up to four video inputs and can toggle between them using two 5V TTL signals.

Features and Specifications

Input Voltage: 7.5V - 20V*
Channels: 4 inputs to 1 output
Communication: TTL

NOTE: A shorting resistor can be attached to power the module from a 5V source.
