Wide View Color Infra Red Camera with 7 IR LEDs - DISCONTINUED

  • Wide View Color Infra Red Camera with 7 IR LEDs - DISCONTINUED

Overview

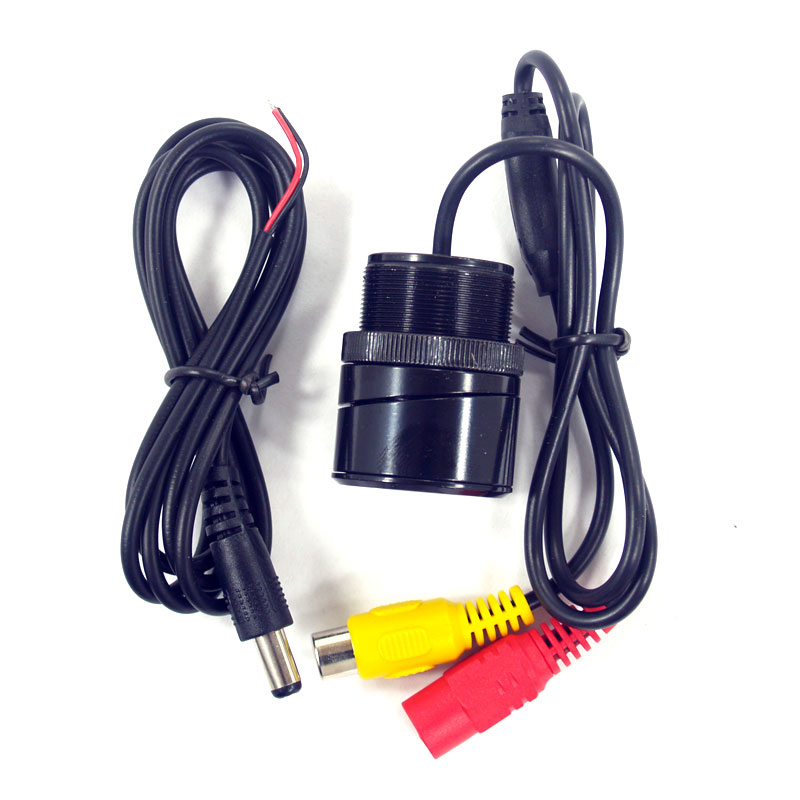

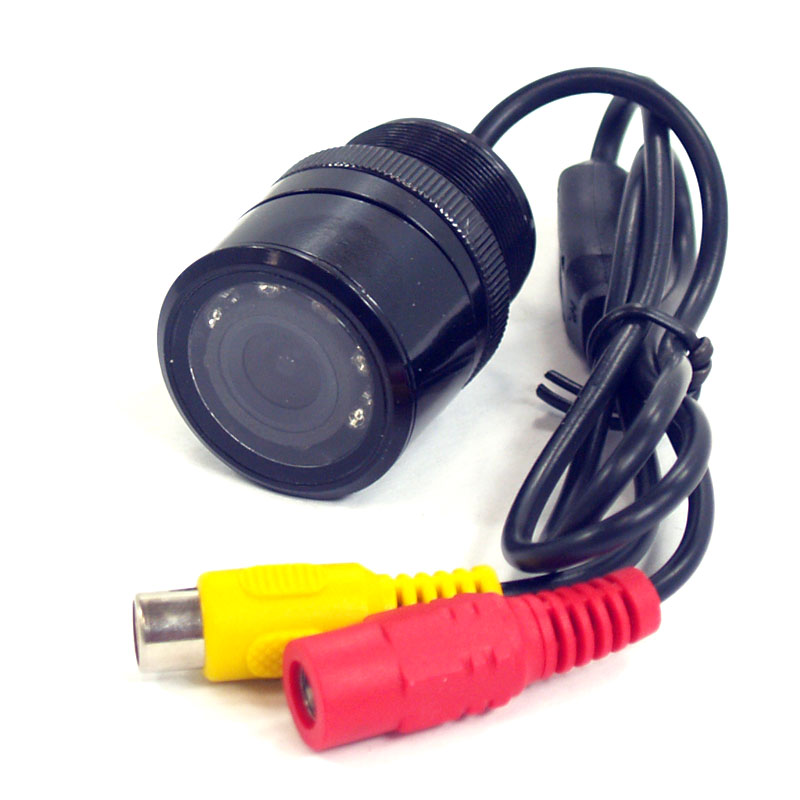

This is a 7 IR Color Camera.  This is the camera only, it does not include the power supply or a stand.  It is 25mm in diameter.

Specifications

  • Image Device: 1/4 Inch Color CMOS OV7950
  • Effective Pixels: 628 x 582 Pixels/ 510 x 492 Pixels
  • Resolution: 420 TV Lines
  • Lens Angle: 105 deg
  • Minimum Illumination: 3Lux/F1.2 (0 Lux when infrared LED on)
  • S/N Ratio: More than 48db
  • Night Vision range: 6m
  • Electronic Shutter: 1/60-1/15,000 Seconds
  • Video Output: RCA Connector, 1.0Vp-p, 75ohm
  • Current Consumption: 130mA
  • Power Required: DC 12V, center positive 2.1x5.5mm plug
  • Temperature: -10 ° ~ + 50 °, RH 95% Max

Overview

This is a 7 IR Color Camera.  This is the camera only, it does not include the power supply or a stand.  It is 25mm in diameter.

Specifications

  • Image Device: 1/4 Inch Color CMOS OV7950
  • Effective Pixels: 628 x 582 Pixels/ 510 x 492 Pixels
  • Resolution: 420 TV Lines
  • Lens Angle: 105 deg
  • Minimum Illumination: 3Lux/F1.2 (0 Lux when infrared LED on)
  • S/N Ratio: More than 48db
  • Night Vision range: 6m
  • Electronic Shutter: 1/60-1/15,000 Seconds
  • Video Output: RCA Connector, 1.0Vp-p, 75ohm
  • Current Consumption: 130mA
  • Power Required: DC 12V, center positive 2.1x5.5mm plug
  • Temperature: -10 ° ~ + 50 °, RH 95% Max

Wide View Color Infra Red Camera with 7 IR LEDs - DISCONTINUED

  • Product Code: WC-053-007
  • Availability: Discontinued

This product is unavailable.

Contact us if you have any questions.
