WiFi Custom Control Interface Package
Item Details
WiFi Custom Control Interface Package
Item Name:
WiFi Custom Control Interface Package
Item #:
TE-900-002
Manufacturer:
SuperDroid Robots
Adjusted Price:
Availability:
We're sorry, this item is currently out of stock. Please contact us for availability.

Product Image Gallery:

Description:

After building many custom WiFi control packages for robots, we have combined the most common control requests and come up with this standard package. This package is intended to be placed on any SuperDroid Robot chassis. We tailor it to fit your selected motor controllers and robot. This package is also intended for robot kits that we are assembling (i.e. you selected the assembly option when purchasing your robot).

For help with WiFi Robots and controllers, please follow this link. If you would like to have a programmable Custom Wfi Control Package, click here.

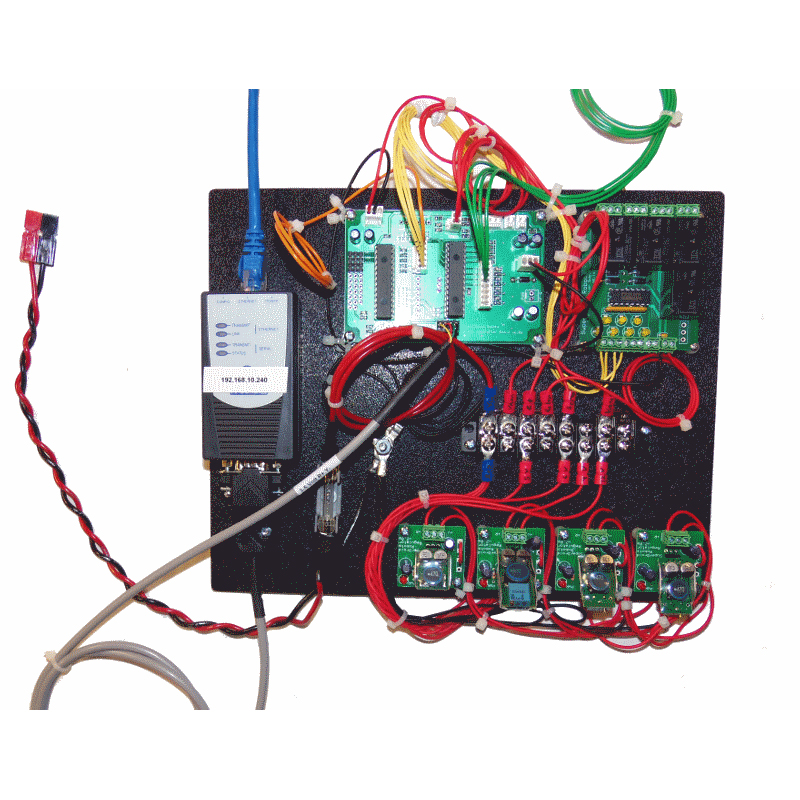

Note: This package comes with all of the necessary cables and accessories and is fully configured, wired, and tested.



Features and Specifications:

  • Choose between the TP-Link 300Mbps Wireless Router, or the ASUS 3-In-1 Wireless Router. For help deciding on the ethernet bridge or router, see our support page.

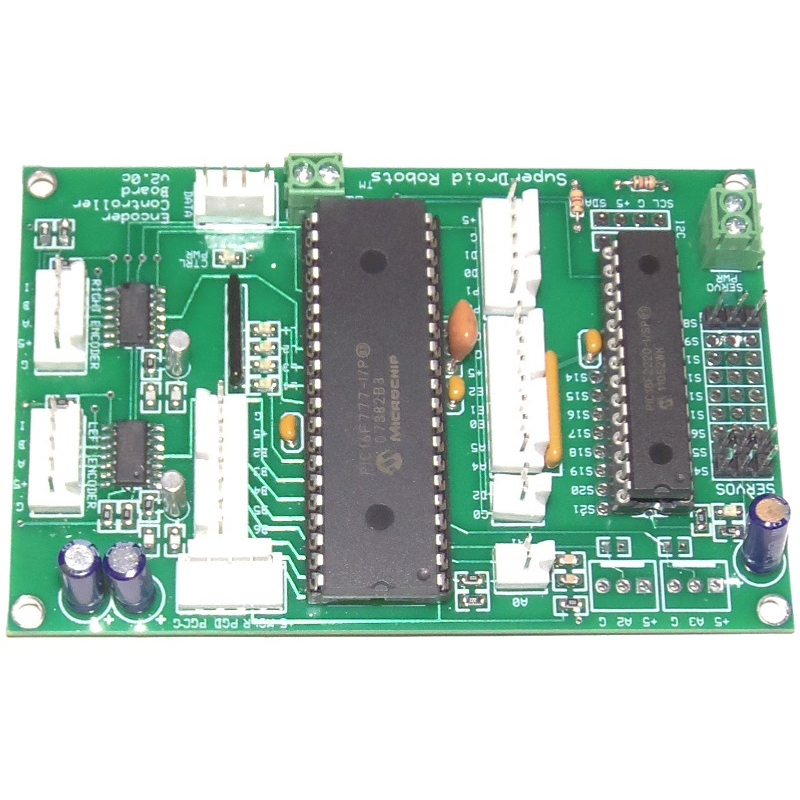

  • Custom Control Board. This is a microcontroller board that we have designed. We have made a bunch of these boards and are continuously improving on them. With each revision we keep making improvements and adding features. The board controls any of our motor controllers. It also controls a pan and tilt servo to very precise positioning, additional servos can be controller for a small additional cost if needed. The board monitors the robots voltages, reads up to 9 TTL inputs and controls 4 relays via our relay board (included), has RS485 to control a PTZ camera, RS485 to Serial Comunication, 2 UARTS, Video Mux to switch between 4 cameras, up to 8 Analogs, Ethernet communication, 4 HCD Outputs, SPI communication for encoder reading.

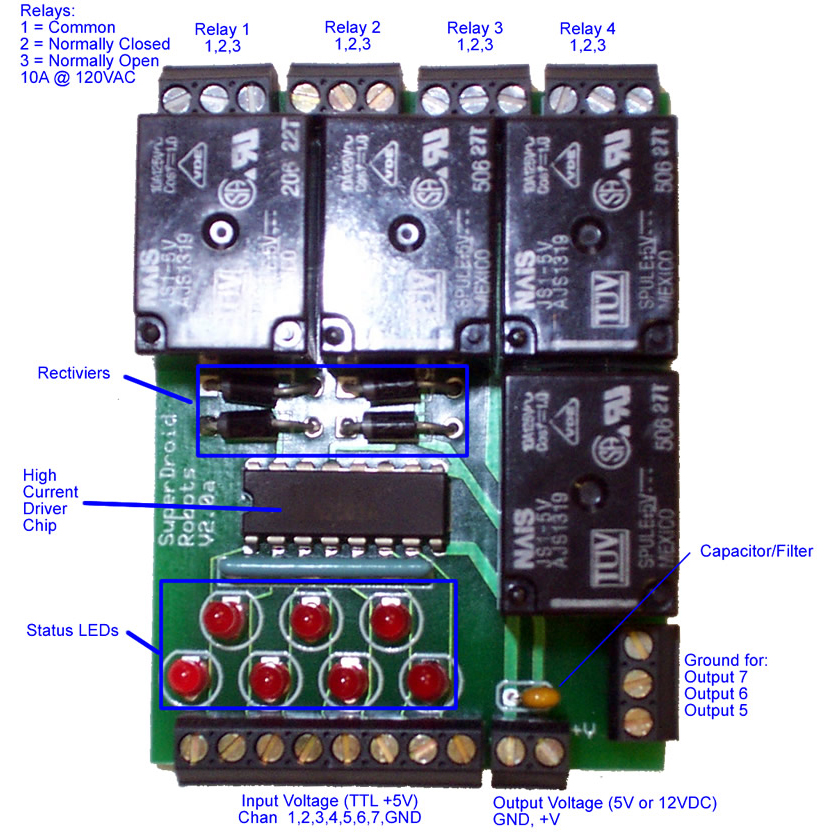

  • 4 Relay, 7 Channel High Current TTL Driver Module (Qty 1)
  • Voltage Regulators (Qty 3). This provides power to:
    • Control Board and 4x TTL Relay Board - 5V
    • Router or Bridge (adjusted to networking device ordered)
    • Additional configured regulator for use with servos or motors
  • Logitech USB Gamepad Controller (Qty 1)
  • Customized VB.NET 4.0 program. This program is used to control and monitor the robot. The robot can be controlled with the mouse or via the supplied USB gamepad controller. We provide the source code if you desire to make any changes. The code is customized to your robot and controllers.
  • All the necessary network cables, antenna cables/extensions, terminal blocks, fuses, wiring, mounting hardware, etc.
  • Fully configured, wired and tested.

Delivery:

  • This is a custom built item. Please allow 2-3 weeks for shipping.
  • Need expedited shipping? Please contact us today.
  • We will contact you to review the details of your order.
Item Options - Customize
Select an option by clicking on its button. To see more details about the option select the option name, selecting 'more details' in the pop-up will take you to that options product page. Default selections (if any) are pre- selected for you. Click on the update button below to see the price with your selected options.

Required Items

Please select the Ethernet bridge or router. The 3-in-1 router can be configured either way.

This upgrade includes the upgrade to read encoders and display the data on the control program. The upgrade is intended to be used with our IG42 and IG52 encoder gear motors.

No Encoder Interface
Upgraded Wi-Fi Control Package to read Encoders (Add $360.00)

If you want video feed in your package select one.

We can configure the output of the control board to match your motor controller. Please select the type of input your motor controller requires. All outputs will be proportional. There will be control for a left and right motor.

RC (Rev=1mS, Off=1.5mS, Fwd=2mS)
PWM (0=off, 255=full Speed) with Direction Bit I/O
PWM (0=Rev, 127=Off, 255=Fwd) no Direction I/O
Analog (0V=Off, 5V=Full) with Direction Bit I/O
Analog (0V=Rev, 2.5V=Off, 5V=Fwd) no Direction I/O
Serial Mode for use with a Sabertooth/RoboteQ
Other (specify below)

List any special instruction for setting up the Package.

Special Instructions
An Asterisk '*' indicates that one or more options is Out of Stock!
Item Price
Adjusted Price
$1,017.89

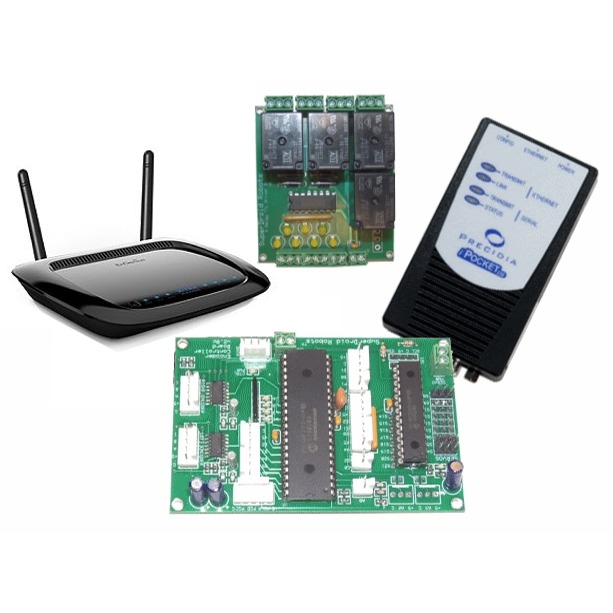

Fully configured, tested and supported. This package comes with a network device, Switching Power Supplies, Custom Controller Board, USB Gamepad, Custom VB.NET 4.0 PC program.
