Heavy Duty Support & Tactical Robot
Low Profile Design
Weatherproof chassis designed to go where other robots can't i.e., under most vehicles, beds, or other hiding areas etc.
Overcome Stairs & Obstacles
The tracked design allows this robot to climb over most obstacles and go up and down most stairs.
Remote Surveillance
The tilting 30X optical zoom camera with lights allows the viewer to see everything even in the total darkness.
Hostage + Hazardous Patrol
Survey hostile/hazardous situations staying out of harm's way.
Clearing Rooms Remotely
Clear rooms and buildings remotely with audio and video surveillance.
Robot Specifications
Operation Time
Up to 8 hours
Speed
4 feet per second (~250 feet per minute / 2.85mph / 4.6kmph)

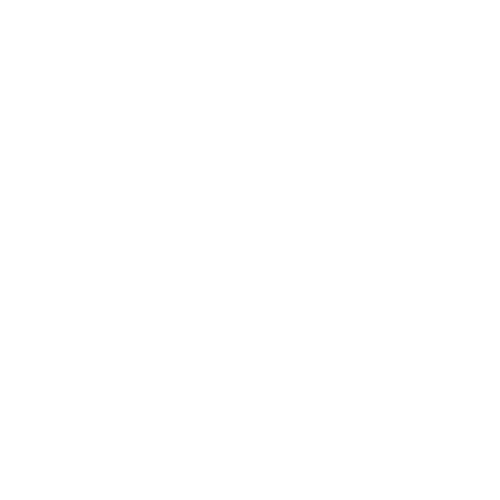

Dimensions
Height: 10.5in / 26.7cm (19in / 48.5cm with roll cage)
Width: 20in / 50.8cm (22in / 56cm with nose camera system)
Length: 38in / 96.5cm
Weight
Avg 100lbs / 45.4kgs
(depending on configuration)
Ground Clearance
~2in / 5cm
Controls
Control your tactical robot with an Operator Control Unit (OCU). Our digital radio systems provide encrypted long-range control of your robot.
Standard Enclosed Remote: This remote is contained in a pelican style case. It features built in industrial joysticks. It is easy to hold and has a 12" tablet display.
Repeaters and Secondary Monitoring Stations are available for all our digital control systems.
HD2-S Doberman Media Gallery
- These robots are built to order and can have a lead time of up to 14-16 weeks.
- Contact us if you need expedited delivery.
- SuperDroid Robots provides a 90-day warranty after shipment. See datasheet for full details.
- Extended multi-year warranties, spare parts, and maintenance training are available, contact us with specific needs. Service agreements are also available.
Explore Your Options
Select the plan the best meets your needs below and we will provide a detailed quotation. All the plans can be customized by selecting different options. The quote form provides you with the ability to comment and add any additional features such as HAZMAT sensors, secondary monitoring stations/repeaters, tethered control, etc.
Basic
- Weatherproof Threaded Chassis
- Digital Radio Control System in Enclosed Case
- Automatic Battery Charging System
- 30x Optical Zoom Pan Tilt Camera
- Video and Image Recording
- Splitscreen Quad-view Camera Display
- Powerful LED Lights
- Heavy-Duty Roll Cage
- 2-Way Audio System
- Front-Facing IR Camera
- Rearview IR Camera
- Ethernet Port for Wired Connection
- Remote Actuated Stabilizer Bars
- Foam Lined Transportation Case
Standard
- Weatherproof Threaded Chassis
- Digital Radio Control System in Enclosed Case
- Automatic Battery Charging System
- 30x Optical Zoom Pan Tilt Camera
- Video and Image Recording
- Splitscreen Quad-view Camera Display
- Powerful LED Lights
- Heavy-Duty Roll Cage
- 2-Way Audio System
- Front-Facing IR Camera
- Rearview IR Camera
- Ethernet Port for Wired Connection
- Remote Actuated Stabilizer Bars
- Foam Lined Transportation Case
Advanced
- Weatherproof Threaded Chassis
- Digital Radio Control System in Enclosed Case
- Automatic Battery Charging System
- 30x Optical Zoom Pan Tilt Camera
- Video and Image Recording
- Splitscreen Quad-view Camera Display
- Powerful LED Lights
- Heavy-Duty Roll Cage
- 2-Way Audio System
- Front-Facing IR Camera
- Rearview IR Camera
- Ethernet Port for Wired Connection
- Remote Actuated Stabilizer Bars
- Foam Lined Transportation Case
