Heavy Duty Support Tactical Robot with a Multi-Axis Arm
The HD2 features a tracked design that allows it to climb over most obstacles including stairs. It features a 20x zoom camera with 360° pan and -15°/+90° tilt. It also has IR capability so you can see in any lighting condition. With all the features of the HD2-S Doberman, the addition of a multi-axis arm makes this robot even more versatile.
The multi-axis arm allows the operator to open doors, and provides assistance in scaling obstacles, moving debris, inspecting suspicious items, and Explosive Ordnance Disposal (EOD) at a safe distance. The strong arm is capable of lifting 20 pounds fully extended. The Mastiff can be equipped with an available 5th axis allowing the base to rotate 400°, and the optional 6th axis allows the wrist to tilt 160°. With this very agile and strong arm, this robot makes a very versatile tool.
HAZMAT
Survey hostile/hazardous situations staying out of harm's way. Can be equipped with sensors to remotely monitor the environment. Contact us to discuss this option.
Manipulate Objects
With the Multi-axis arm, things like doors will no longer stop you from surveying potentially dangerous locations. Pick up or move suspicious objects without putting anyone in harms way.
Bomb Disposal
Our UGV (Unmanned Ground Vehicle) is an excellent choice to keep people out of harm's way when it comes to Explosive Ordnance Disposal (EOD), bomb diffusing, and removal of Improvised Explosive Device (IED), pipe bombs, pressure cookers, etc.
Overcome Stairs & Obstacles
The tracked design allows this robot to climb over most obstacles and go up and down most stairs.
Hostage + Hazardous Patrol
Survey hostile/hazardous situations staying out of harm's way.
Clearing Rooms Remotely
Clear rooms and buildings remotely with audio and video surveillance.
Overcome Stairs & Obstacles
The tracked design allows this robot to climb over most obstacles and go up and down most stairs.
Hostage + Hazardous Patrol
Survey hostile/hazardous situations staying out of harm's way.
Clearing Rooms Remotely
Clear rooms and buildings remotely with audio and video surveillance.
Robot Specifications
Operation Time
Up to 8 hours
Speed
2 feet per second (~110 feet per minute / 1.25mph)

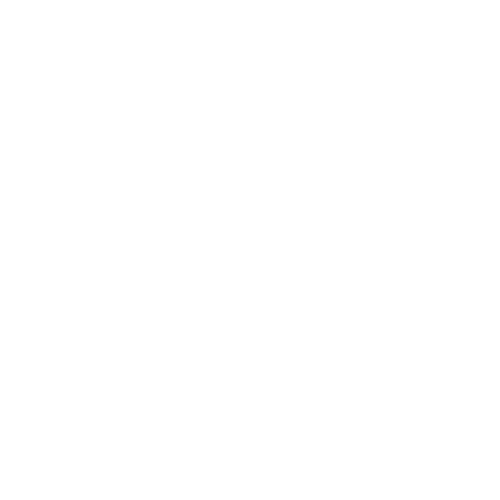

Dimensions
Total Width: ~20in / 51cm
Total Length: ~38in / 97cm
Height (Parked): ~26in / 66cm
Weight
110-150lbs / 50-68kg depending on configuration
Multi-Axis Arm
6-Axis Arm
- Shoulder rotation: 180 degrees
- Elbow rotation: 270 degrees
- Wrist rotation: Continuous
- Parallel Finger Gripper: 4.5in / 11.5cm opening with 65lb / 29.5kg squeeze force
- Arm payload: 20+ pounds fully extended
- Optional 5th axis: 400 degree rotating base
- Optional 6th axis: 160 degree wrist tilt
Controls
Control your tactical robot with an Operator Control Unit (OCU). Our digital radio systems provide encrypted long-range control of your robot.
Standard Enclosed Remote: This remote is contained in a pelican style case. It features built in industrial joysticks. It is easy to hold and has a 12" tablet display.
Repeaters and Secondary Monitoring Stations are available for all our digital control systems.
HD2-S Mastiff Media Gallery
- These robots are built to order and can have a lead time of up to 14-16 weeks.
- Contact us if you need expedited delivery.
- SuperDroid Robots provides a 90-day warranty after shipment.
- Extended multi-year warranties, spare parts, and maintenance training are available, contact us with specific needs. Service agreements are also available.
Explore Your Options
Select the plan the best meets your needs below and we will provide a detailed quotation. All the plans can be customized by selecting different options. The quote form provides you with the ability to comment and add any additional features such as HAZMAT sensors, secondary monitoring stations/repeaters, tethered control, etc.
Basic
- 6-Axis Arm
- 5 Inch Gripper
- 180° Shoulder
- 270° Elbow
- Continuous Wrist Rotation
- 160° Wrist Tilt
- 400° Rotating Base
- Weatherproof Treaded Chassis
- Digital Radio Control System in Enclosed Case
- Video and Image Recording
- Splitscreen Quad-view Camera Display
- Automatic Battery Charging System
- Easy to Remove and Swap Batteries
- Front Facing IR Camera
- 20x Optical Zoom 360º Pan Tilt Camera
- Powerful LED Lights
- Forearm IR Camera
- 2-Way Audio System
- Kinematic Display of Robot and Multi-Axis Arm
- Remote Actuated Rear Stabilizer Bars
- Rearmast IR Camera
- EOD Ready with Carbon Fire 10 Disruptor Mount
- External Ethernet Jack for Tether Operation
- Foam Lined Transportation Case
Standard
- 6-Axis Arm
- 5 Inch Gripper
- 180° Shoulder
- 270° Elbow
- Continuous Wrist Rotation
- 160° Wrist Tilt
- 400° Rotating Base
- Weatherproof Treaded Chassis
- Digital Radio Control System in Enclosed Case
- Video and Image Recording
- Splitscreen Quad-view Camera Display
- Automatic Battery Charging System
- Easy to Remove and Swap Batteries
- Front Facing IR Camera
- 20x Optical Zoom 360º Pan Tilt Camera
- Powerful LED Lights
- Forearm IR Camera
- 2-Way Audio System
- Kinematic Display of Robot and Multi-Axis Arm
- Remote Actuated Rear Stabilizer Bars
- Rearmast IR Camera
- EOD Ready with Carbon Fire 10 Disruptor Mount
- External Ethernet Jack for Tether Operation
- Foam Lined Transportation Case
Advanced
- 6-Axis Arm
- 5 Inch Gripper
- 180° Shoulder
- 270° Elbow
- Continuous Wrist Rotation
- 160° Wrist Tilt
- 400° Rotating Base
- Weatherproof Treaded Chassis
- Digital Radio Control System in Enclosed Case
- Video and Image Recording
- Splitscreen Quad-view Camera Display
- Automatic Battery Charging System
- Easy to Remove and Swap Batteries
- Front Facing IR Camera
- 20x Optical Zoom 360º Pan Tilt Camera
- Powerful LED Lights
- Forearm IR Camera
- 2-Way Audio System
- Kinematic Display of Robot and Multi-Axis Arm
- Remote Actuated Rear Stabilizer Bars
- Rearmast IR Camera
- EOD Ready with Carbon Fire 10 Disruptor Mount
- External Ethernet Jack for Tether Operation
- Foam Lined Transportation Case
