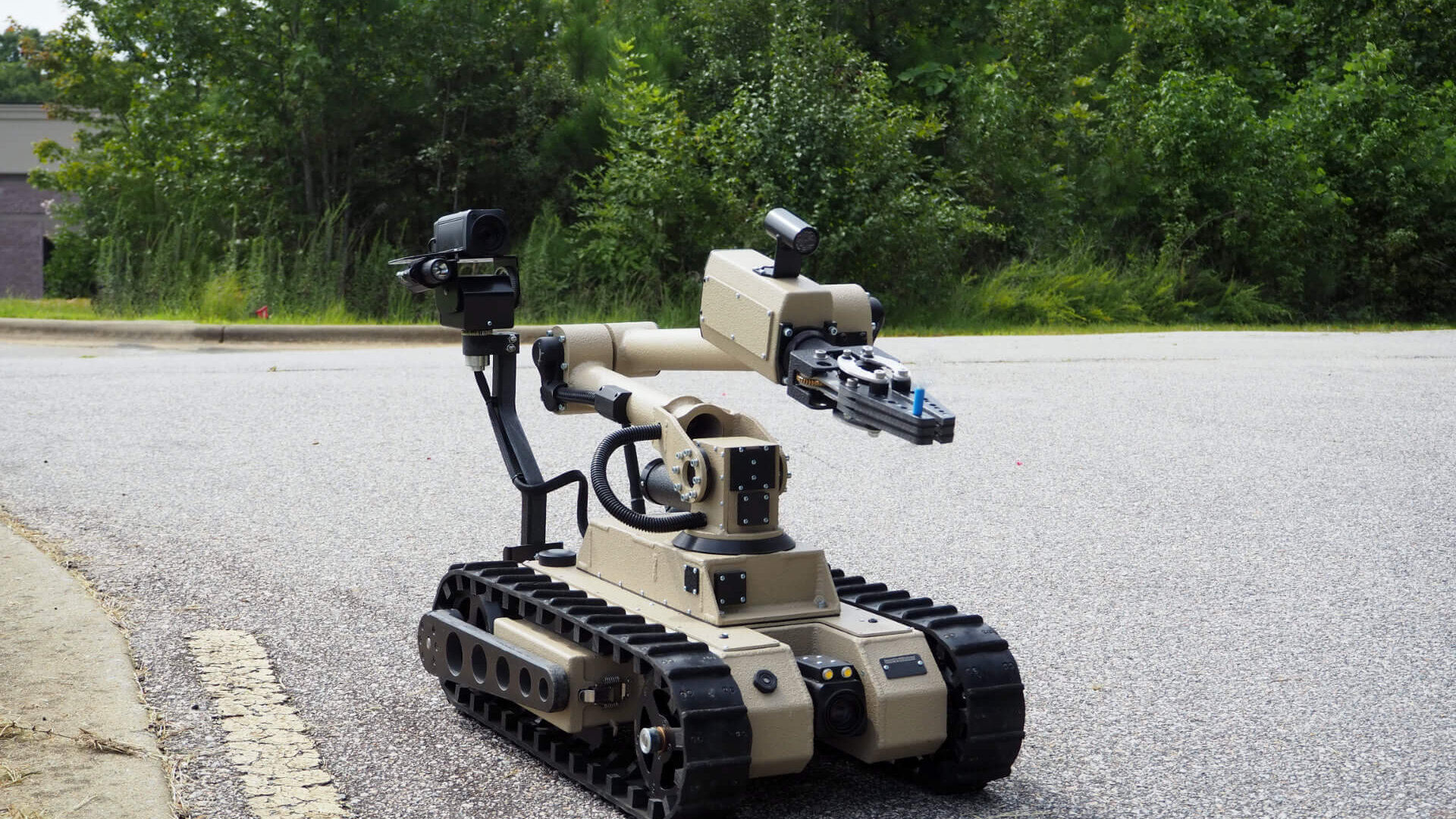

LT2-F "Bulldog"
Light Tracked Support Robot with a Multi-Axis Robotic Arm

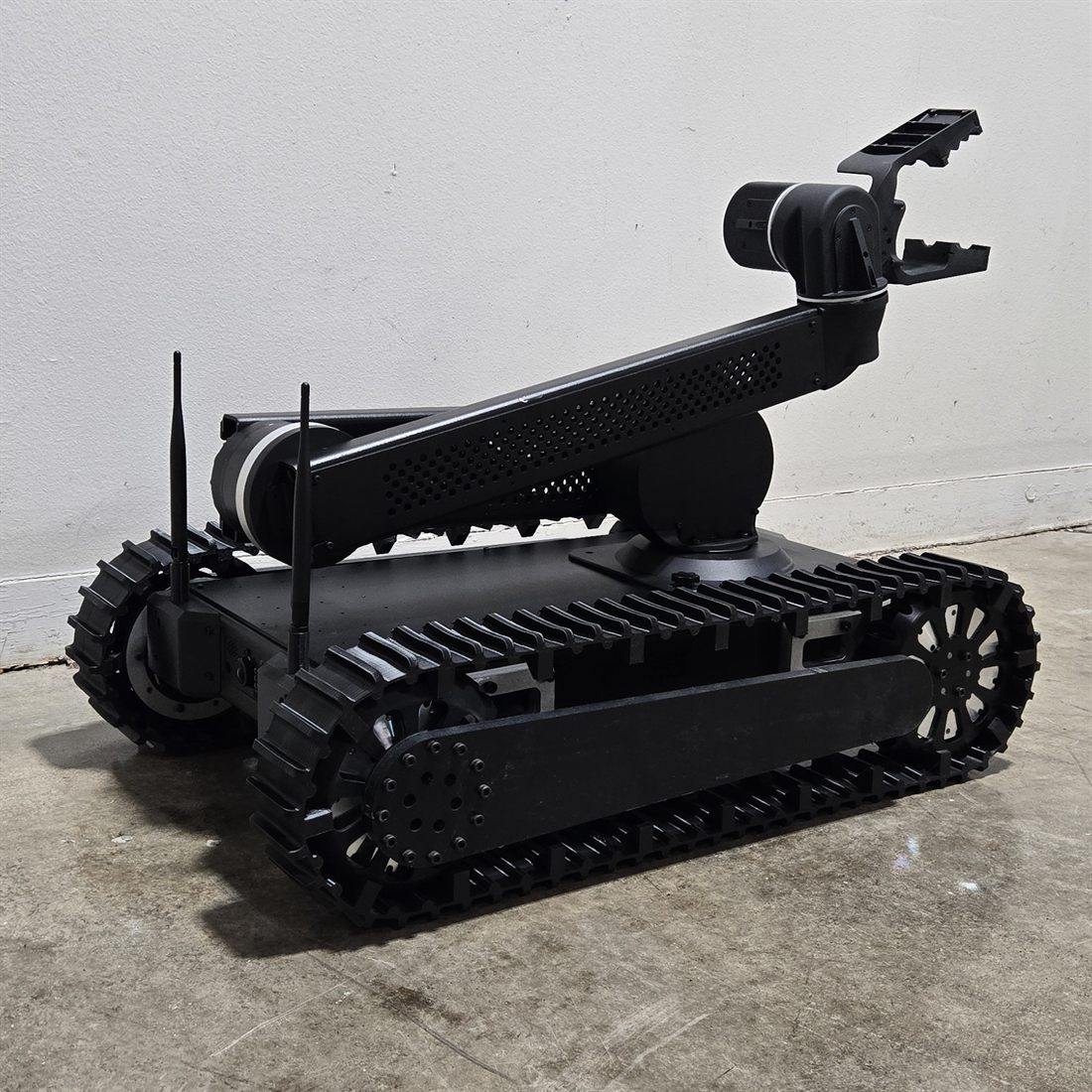

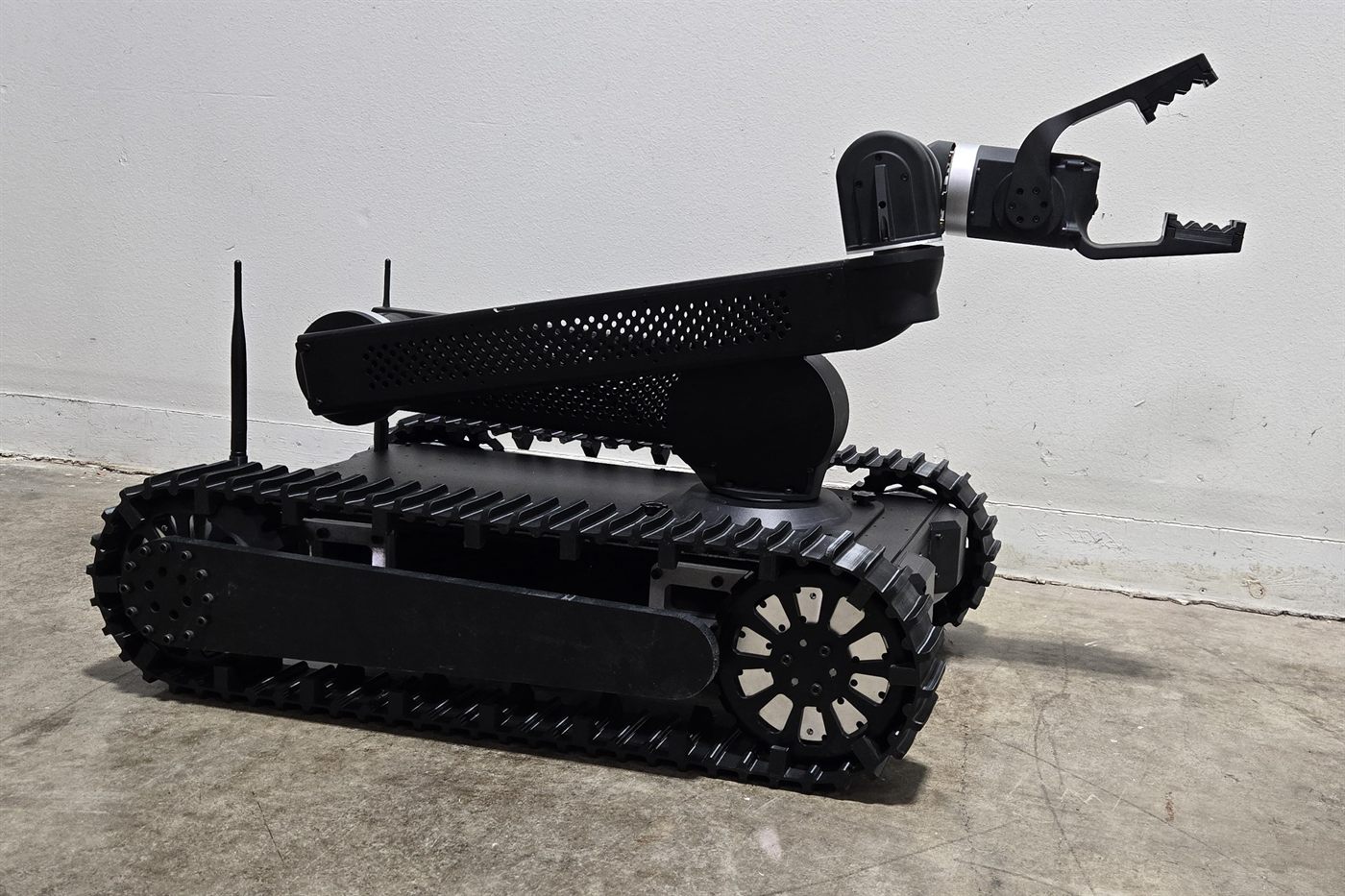

The LT2-F “Bulldog” Tactical Support Robot is our best-selling tactical robot. Qualified in a grueling series of NIST tests, this tracked robot is a perfect balance of speed, power, size, weight, and mobility. The LT2-F Bulldog has all the features of our Bloodhound with the addition of a removable multi-axis arm!

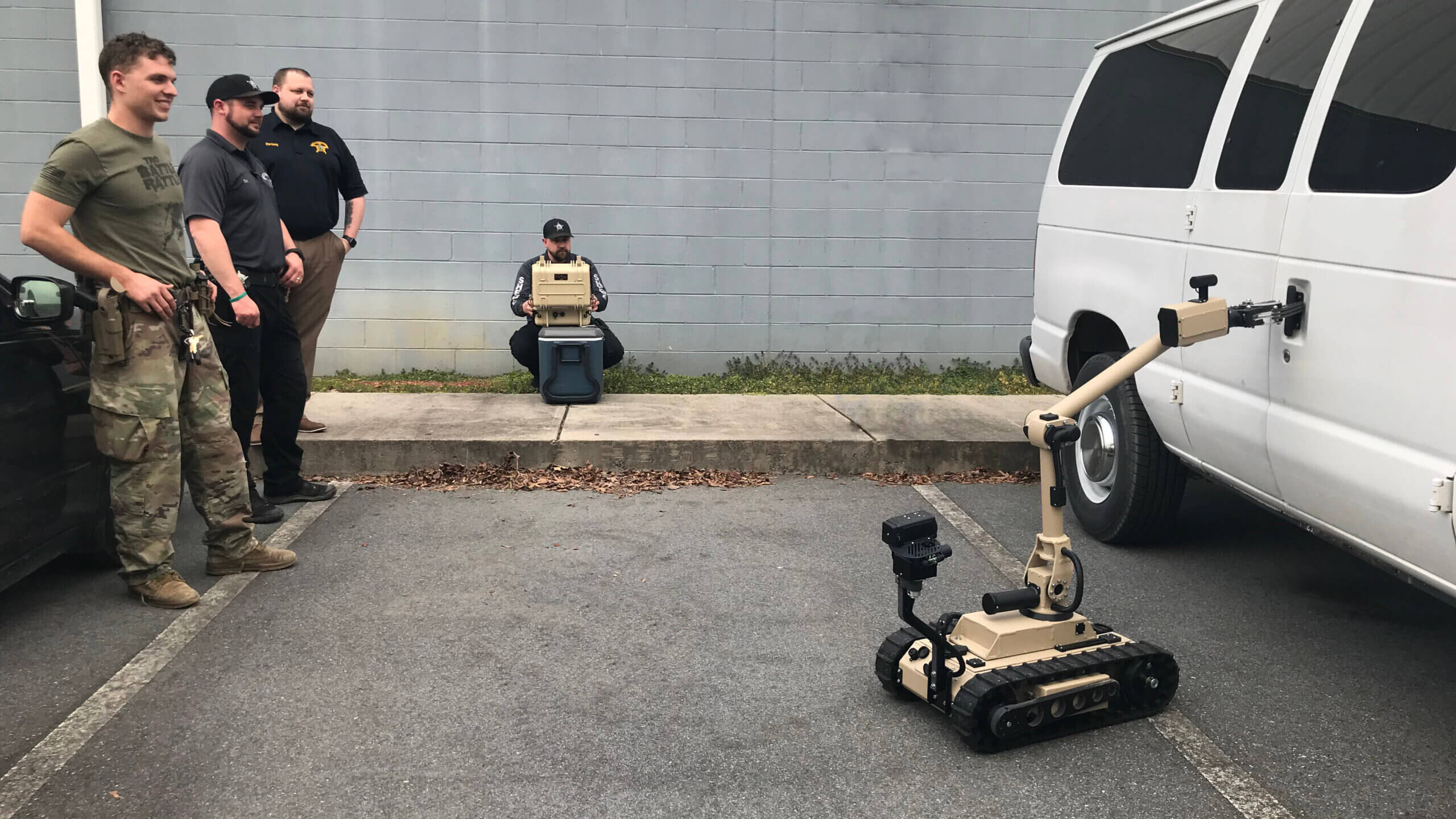

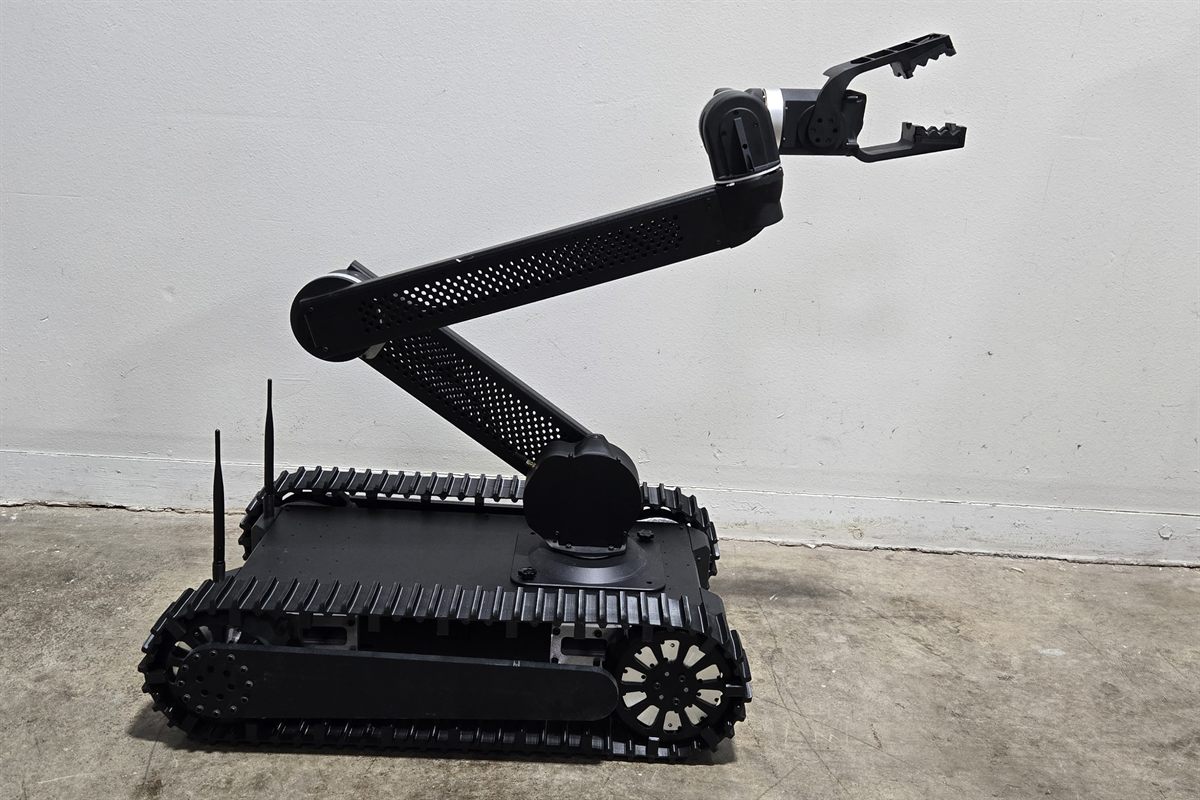

The Bulldog can climb household stairs and obstacles. For more aggressive terrain and obstacles, the LT2-F has a set of rear flipper arms to lift the robot up and over. They also act as a stabilizer to prevent rollover on steep inclines. The removable multi-axis arm makes the Bulldog a versatile tool. It’s ideal for clearing rooms, removing suspicious packages, remote observation, and more! The arm is easy to remove for different missions and clearance requirements. Without the arm, the Bulldog can fit under cars, beds, and into tight spaces. With the arm installed, the robot can open doors, move and inspect objects, and look over furniture.
Our standard LT2-F package includes the robot, removable multi-axis arm, and control system. Other options are available, including powerful lights, travel case, advanced cameras, and more!
![](https://www.superdroidrobots.com/wp-content/uploads/2022/07/1411565_SimpleProductIllustrationBulldog_071522-e1659733841837.png)
![Bulldog-Size-Chart-white Bulldog-Size-Chart-white](https://www.superdroidrobots.com/wp-content/uploads/elementor/thumbs/Bulldog-Size-Chart-white-psmv1730kpk611xw3i3uyiqok711y4tsf4a71nmeww.png)
Robot Specifications
Operation Time
Up to 8 hours
Speed
2 feet per second (~110 feet per minute / 1.25mph / 2 kmph)
Dimensions
Total width: ~19in / 49cm
Total Length: ~30in / 76.5cm

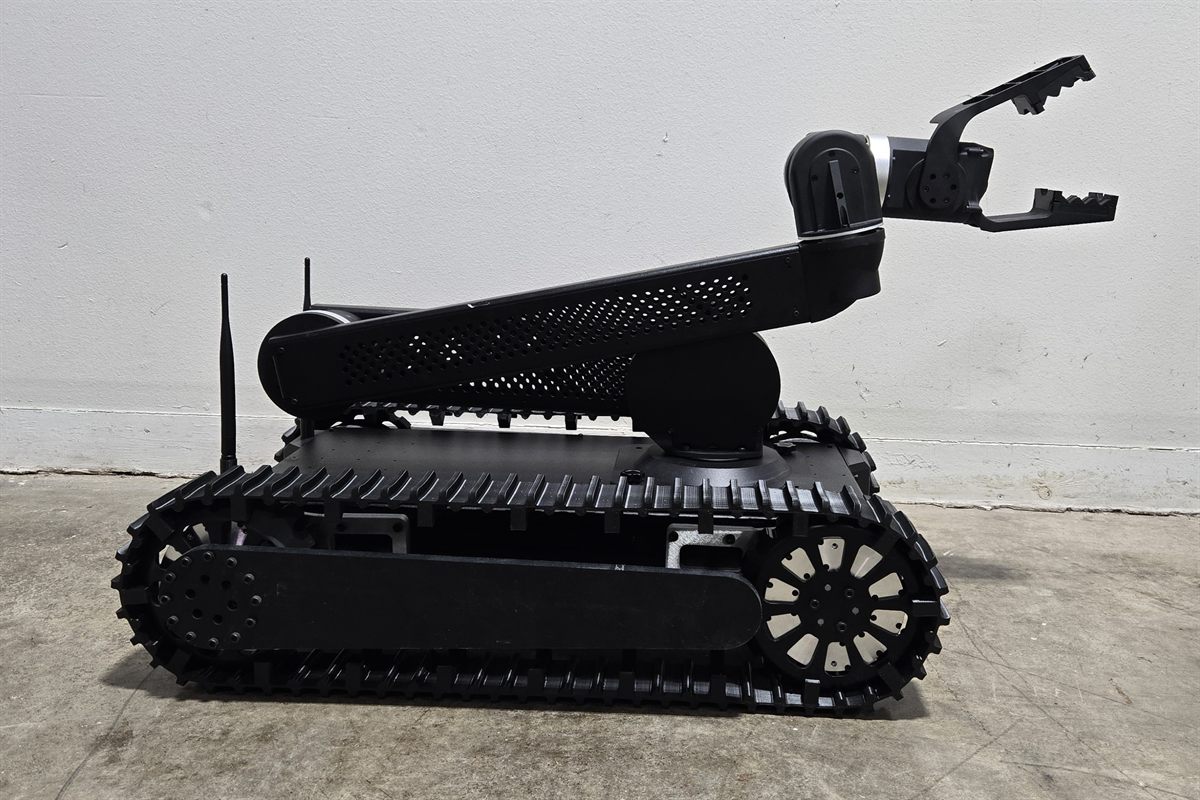

Height with Arm Installed (Parked): ~18in / 45.75cm
(~22in/ 56cm with forearm camera)
Weight
~85lbs / 38.6kgs

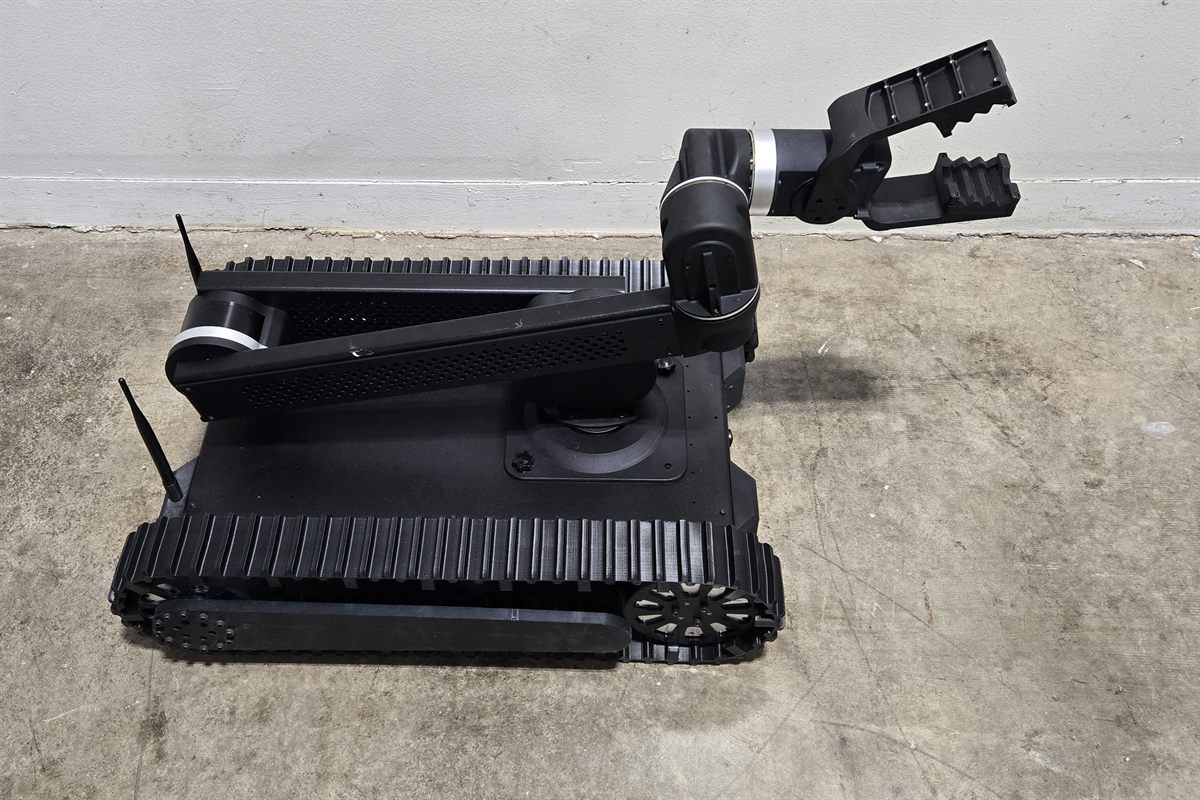

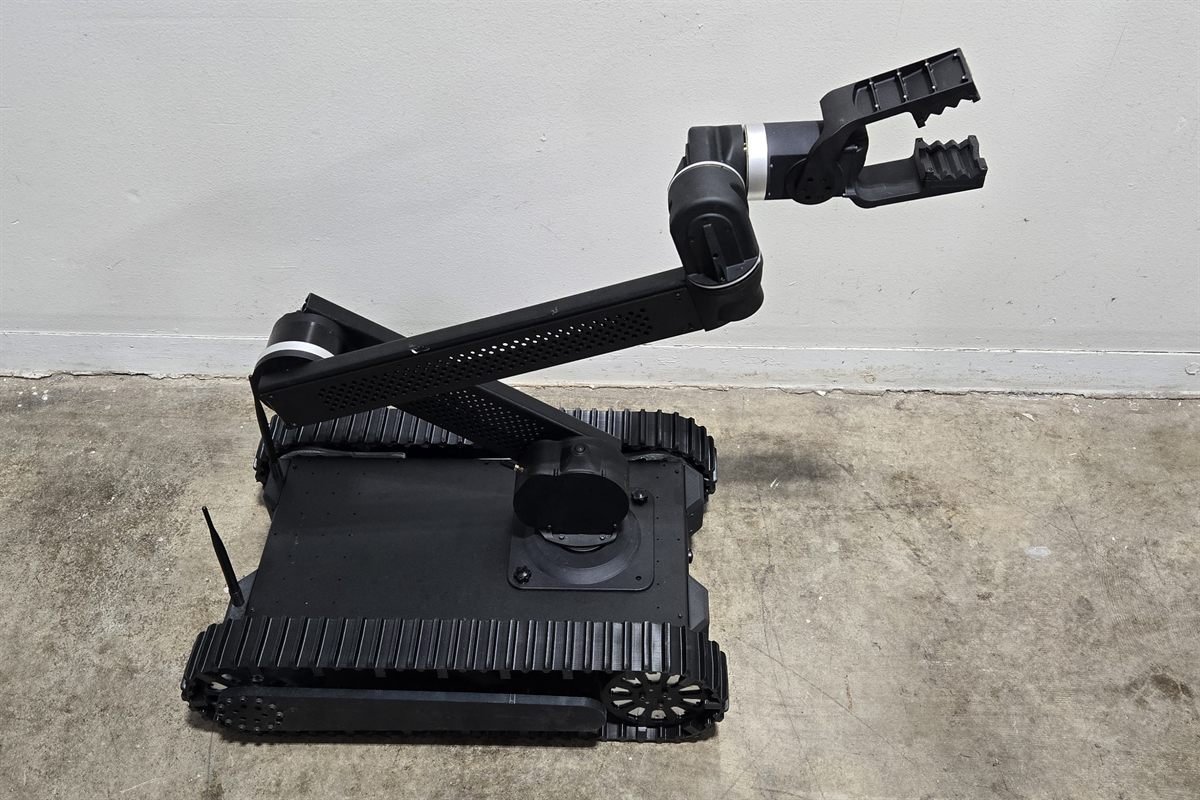

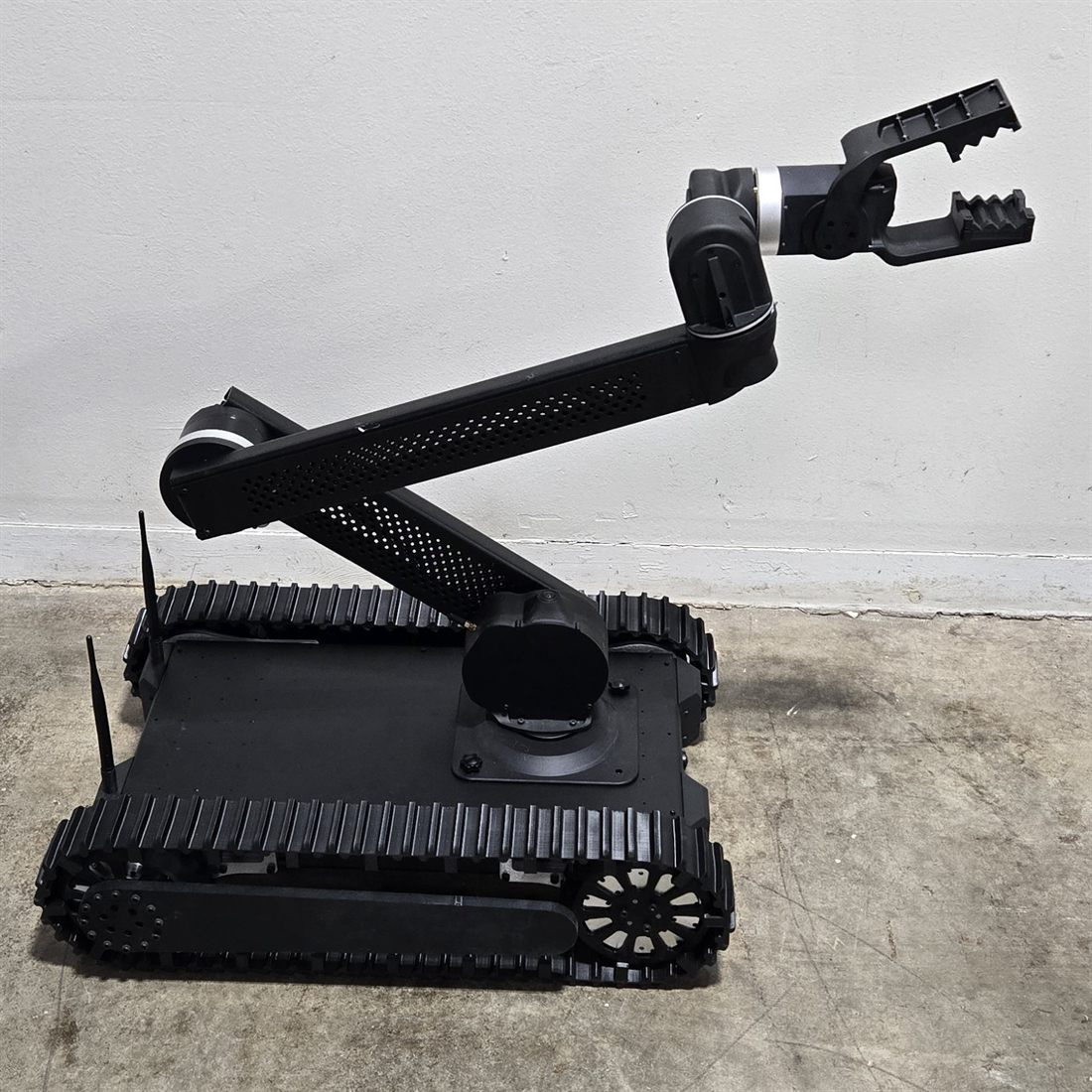

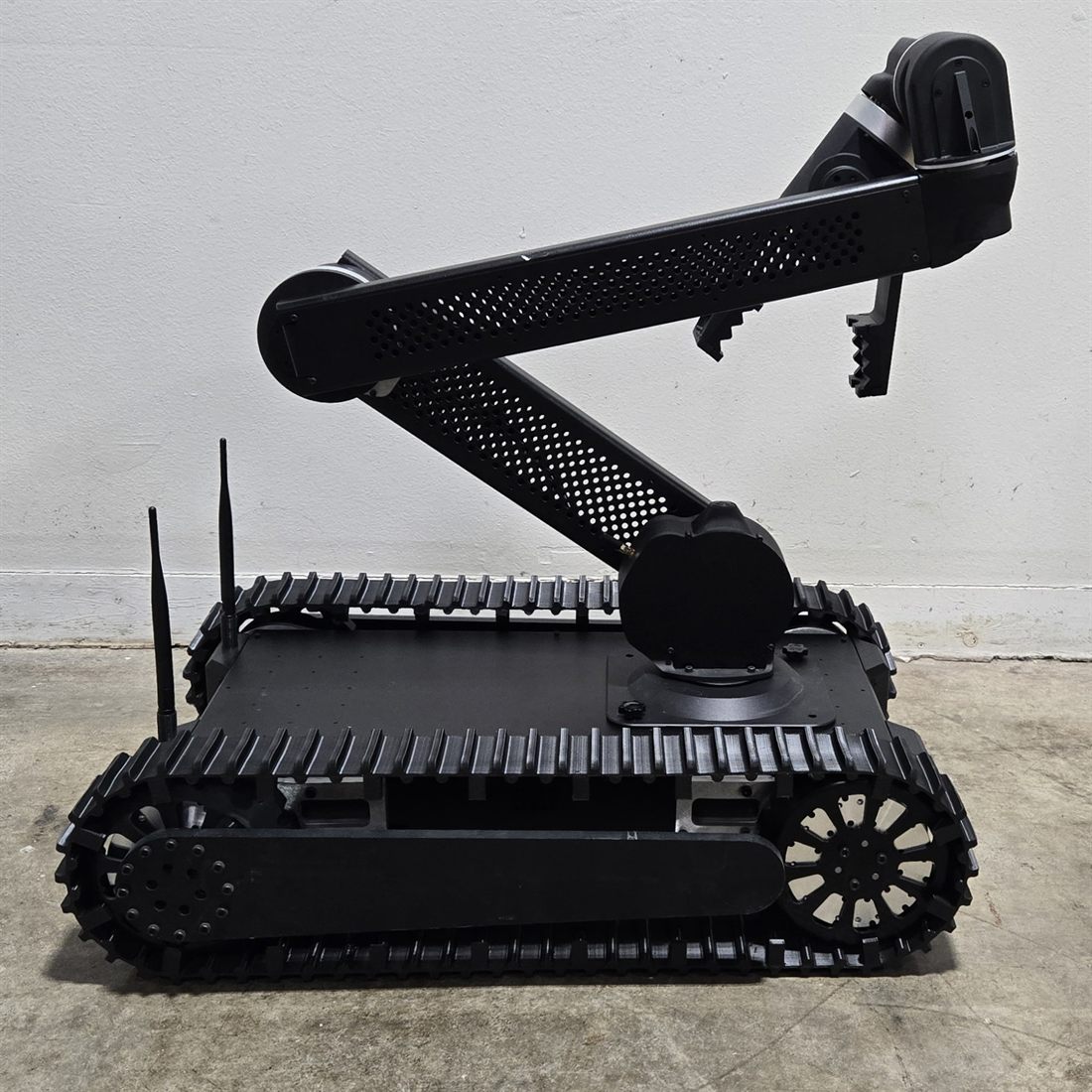

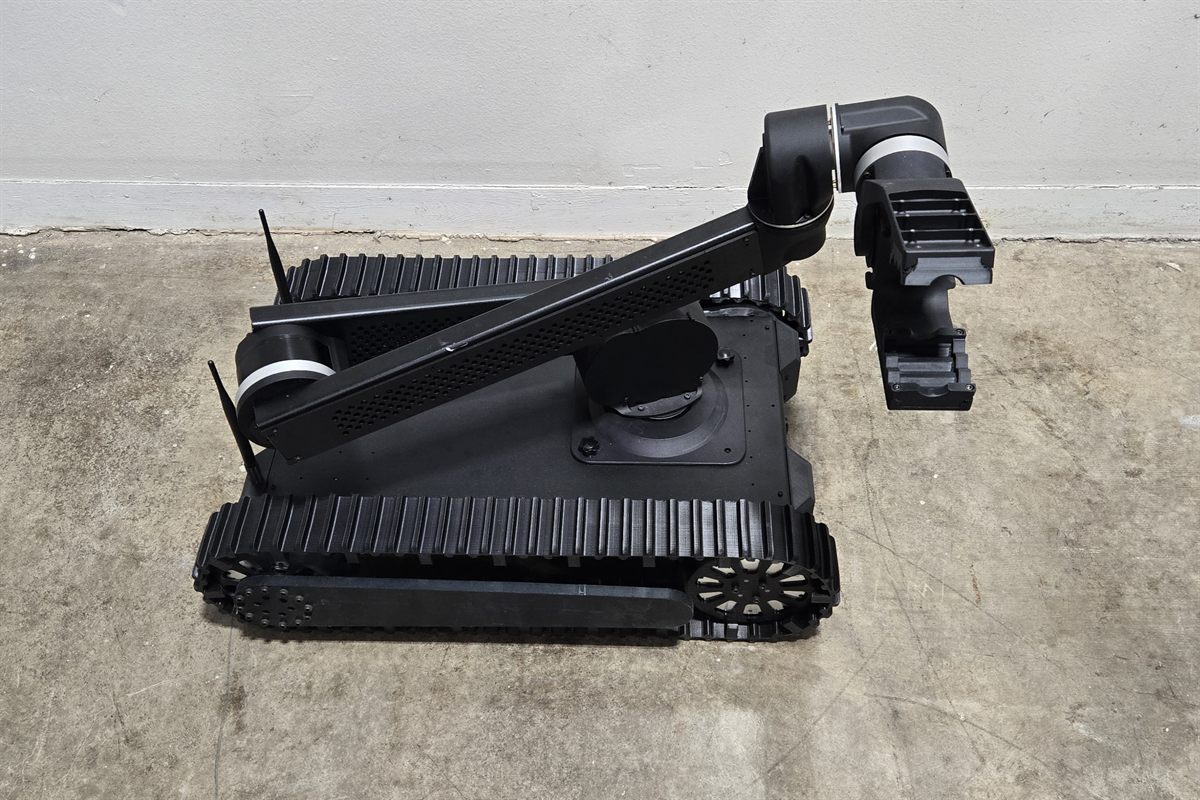

Multi-Axis Arm
6-Axis Removable Arm
- Shoulder rotation: 180 degrees
- Elbow rotation: 270 degrees
- Wrist rotation: Continuous

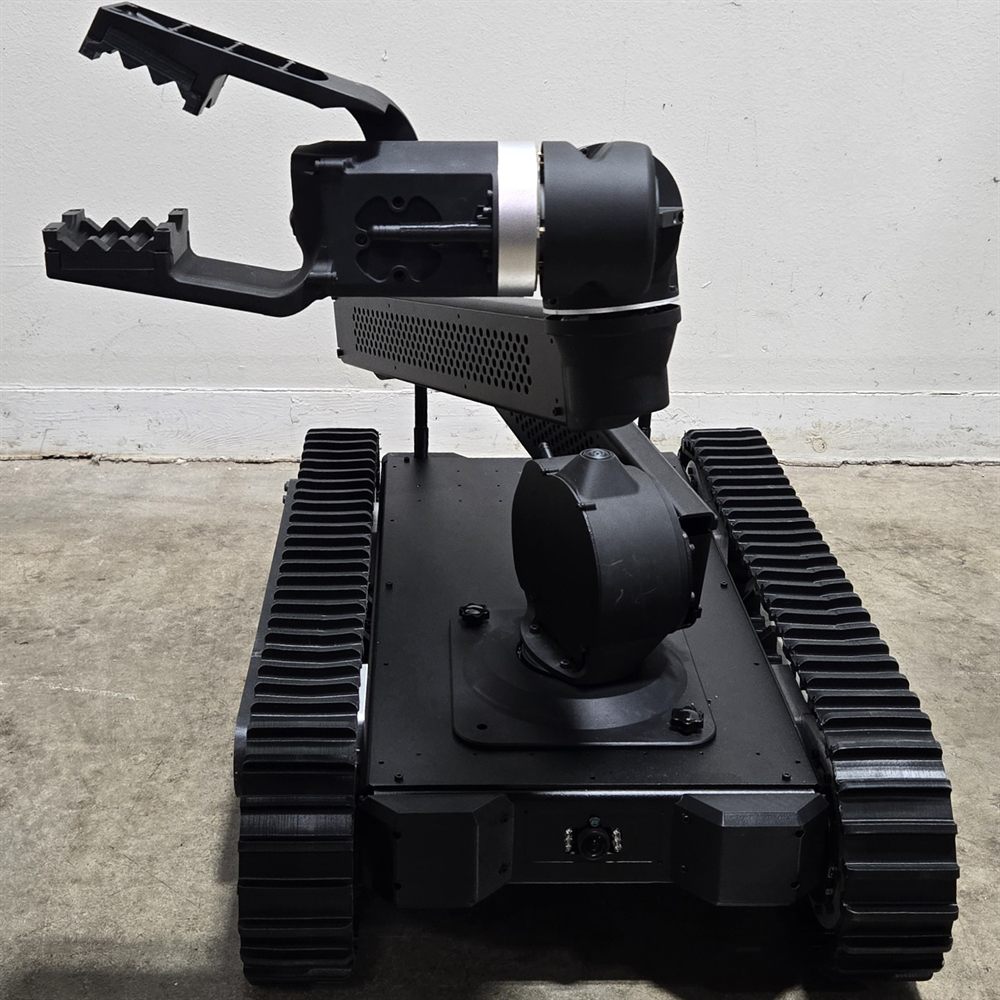

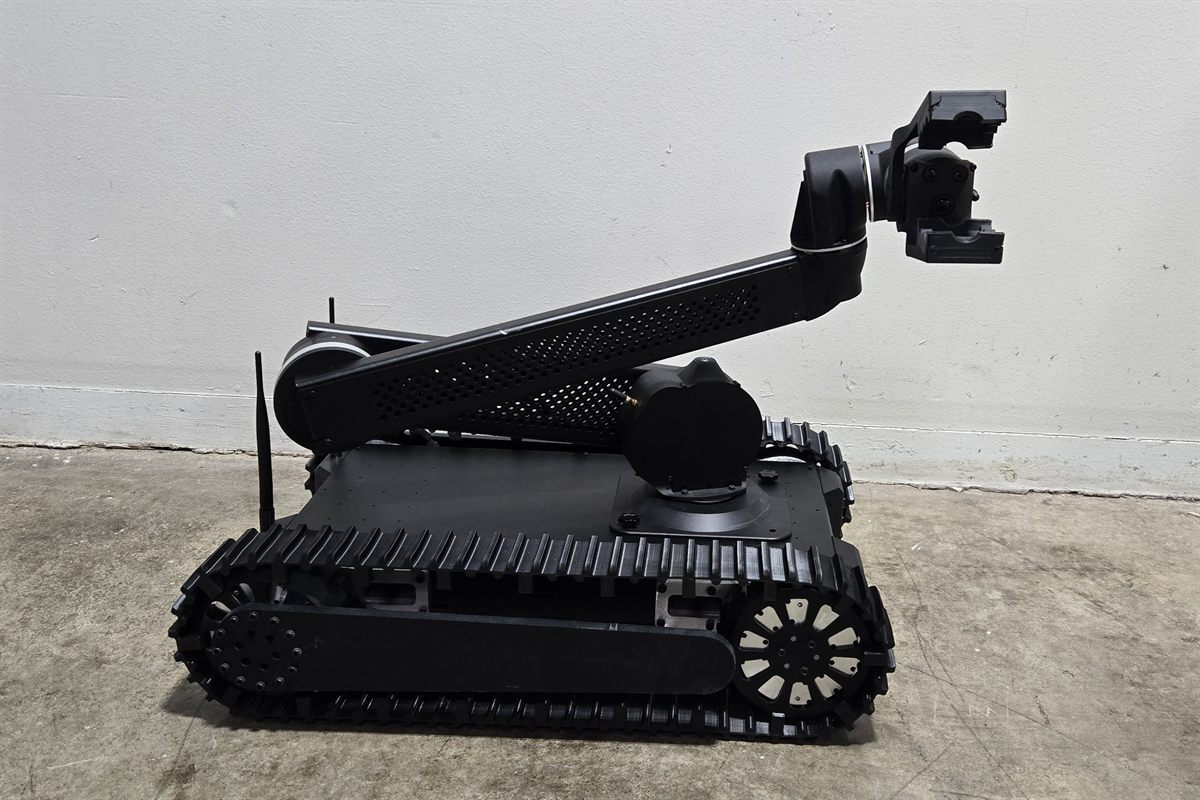

- Parallel Finger Gripper: 4.5in / 11.5cm opening with 65lb / 29.5kg squeeze force
- Arm Payload: 15lbs / 6.8kgs fully extended
- Easily removed and installed. Remove the arm to navigate low clearance areas, etc. Add or remove the arm as needed.
- Optional 5th axis: 315 degree rotating base
- Optional 6th axis: 160 degree wrist tilt
- Upgradeable to include clutches and/or feedback/position control.

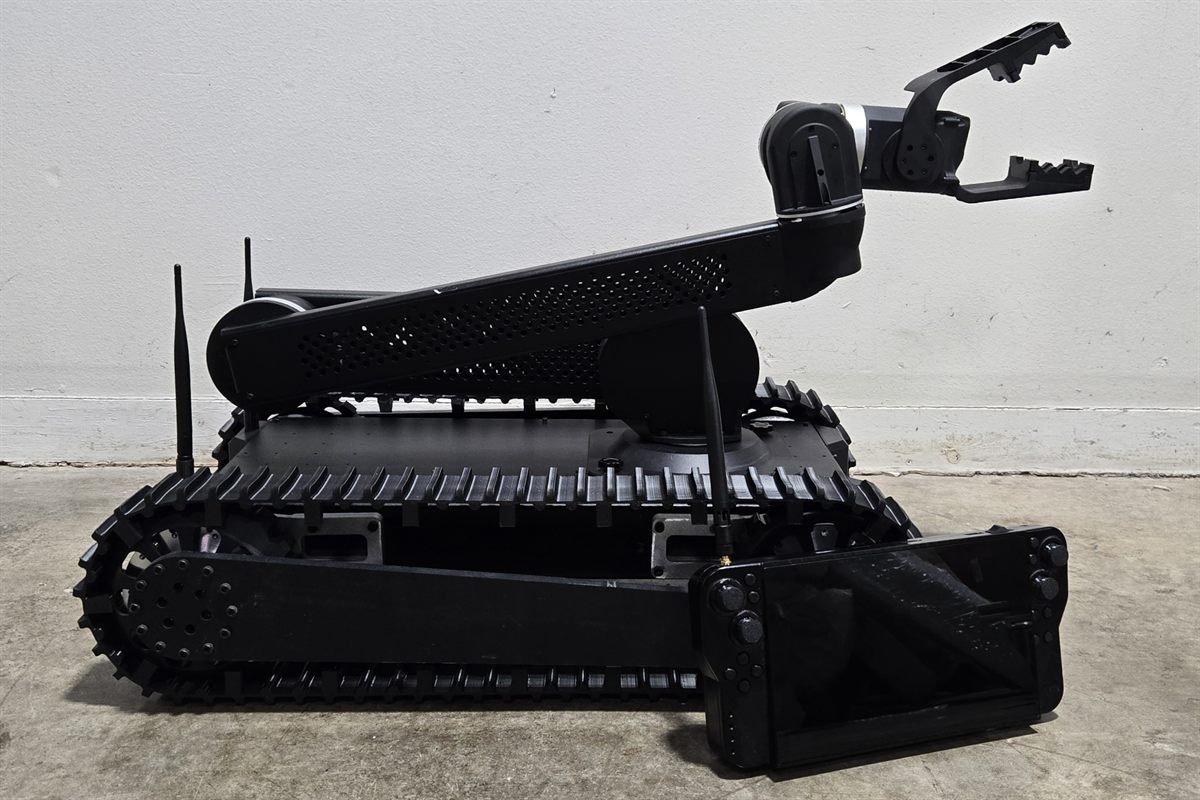

Controls

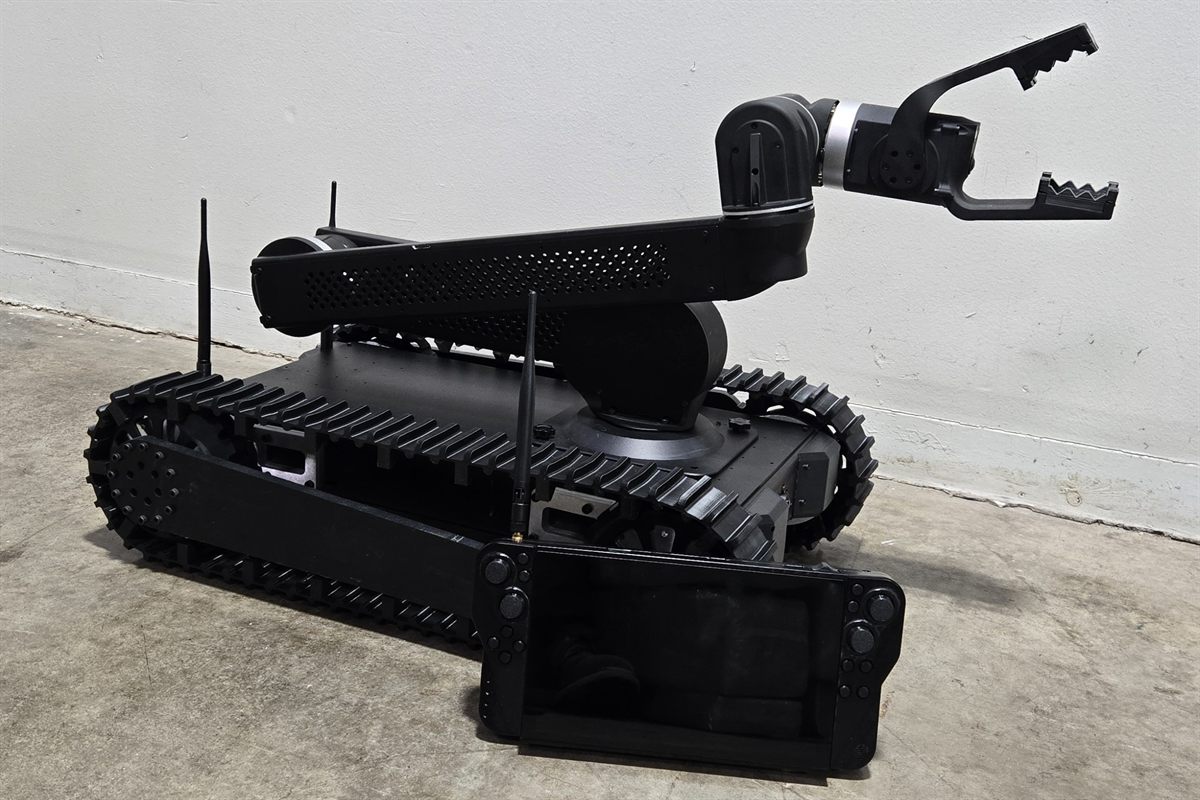

Control your tactical robot with an Operator Control Unit (OCU). Our digital radio systems provide encrypted long-range control of your robot.
Standard Enclosed Remote: This remote is contained in a pelican style case. It features built in industrial joysticks. It is easy to hold and has a 12" tablet display.
Repeaters and Secondary Monitoring Stations are available for all our digital control systems.
Applications

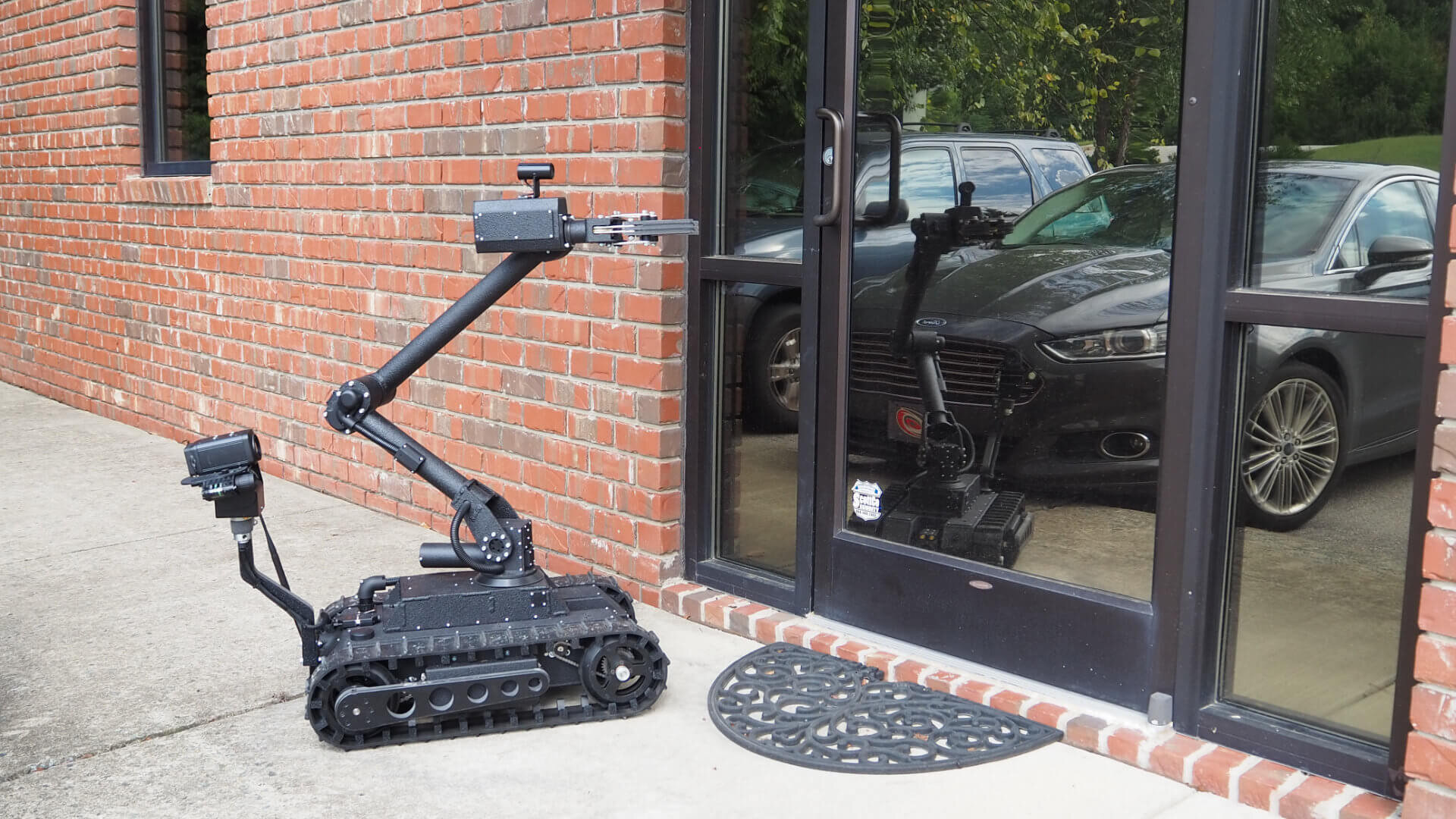

Manipulate Objects
With the Multi-axis arm, things like doors will no longer stop you from surveying potentially dangerous locations. Pick up or move suspicious objects without putting anyone in harm's way.
Remote Surveillance

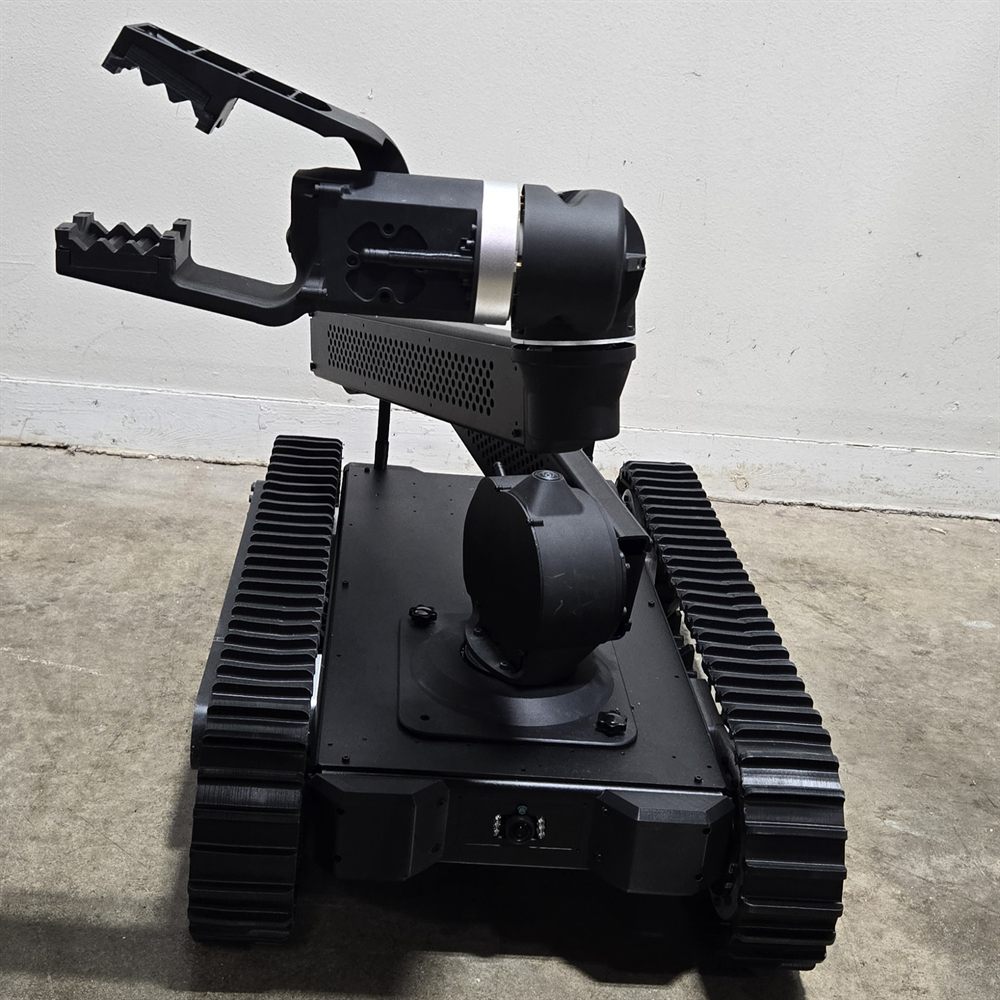

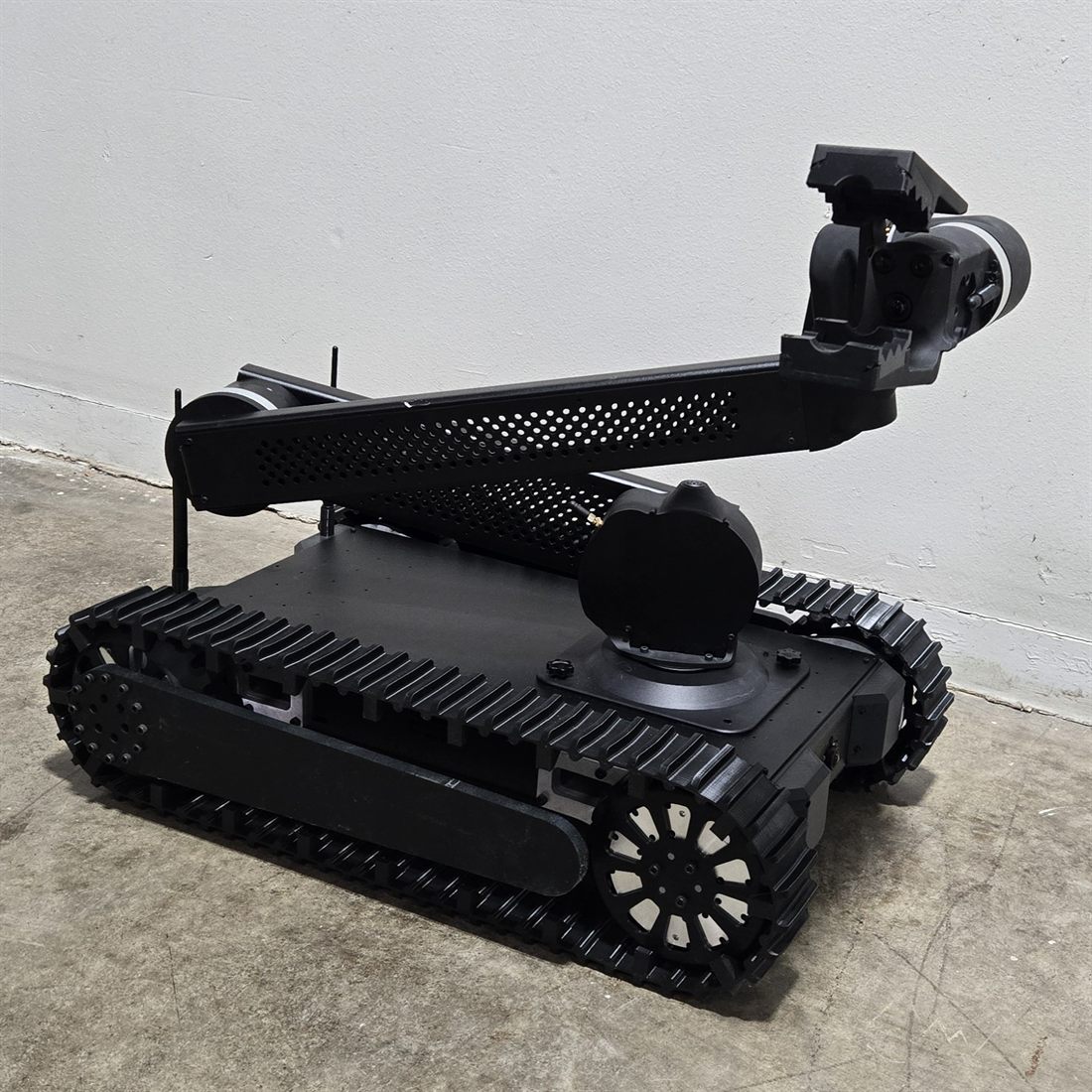

The 30X zoom tilt camera in the nose of the LT enables the user to view from a safe distance even in low light. The additional arm-mounted camera provides the perfect angle for operating the robot's grip.

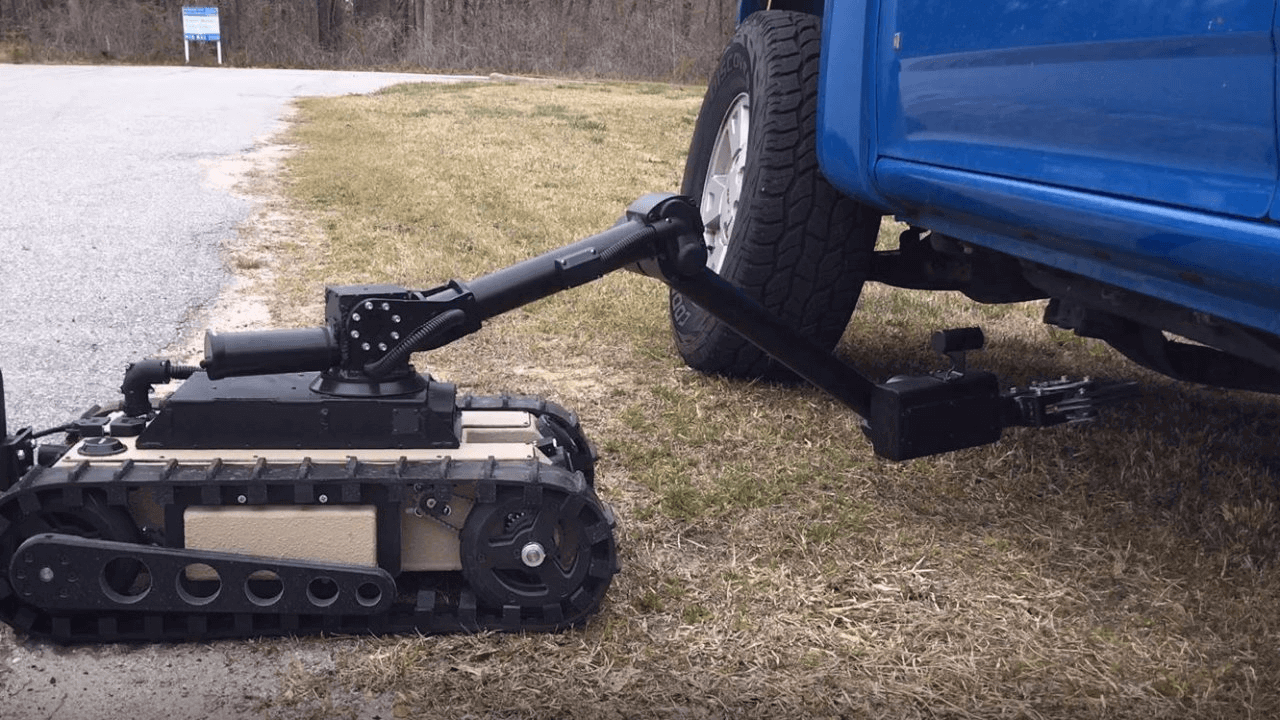

Bomb Disposal
Our UGV (Unmanned Ground Vehicle) is an excellent choice to keep people out of harm's way when it comes to Explosive Ordnance Disposal (EOD), bomb diffusing, and removal of Improvised Explosive Device (IED), pipe bombs, pressure cookers, etc.
Hostage + Hazardous Patrol
Survey hostile/hazardous situations staying out of harm's way.
Clearing Rooms Remotely
Clear rooms and buildings remotely with audio and video surveillance.

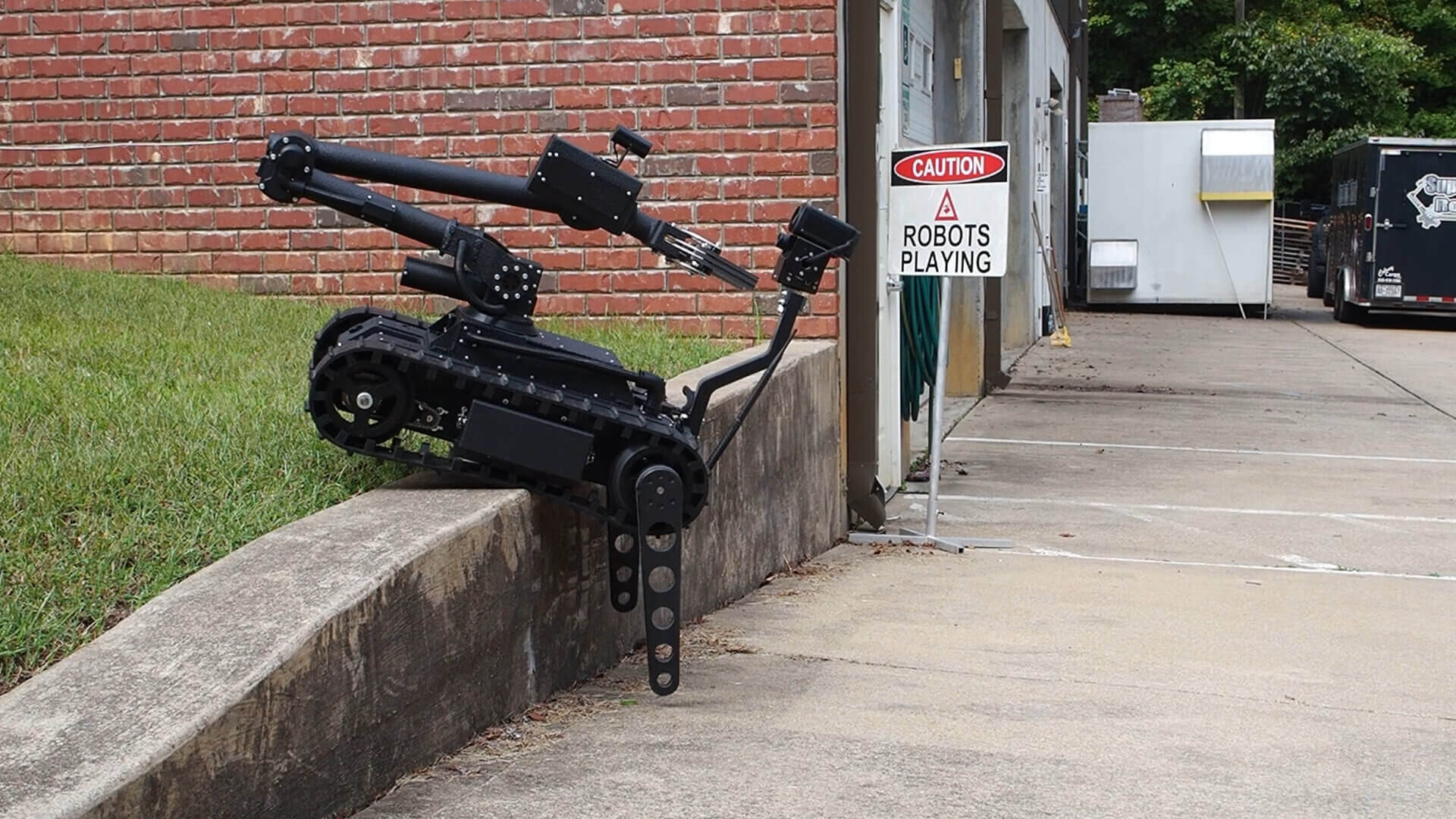

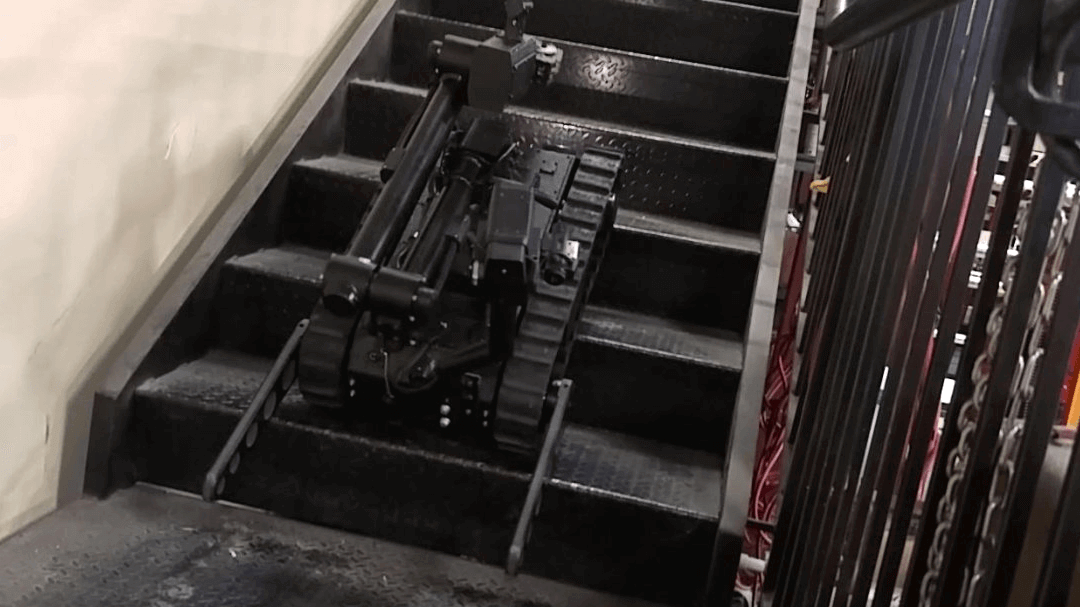

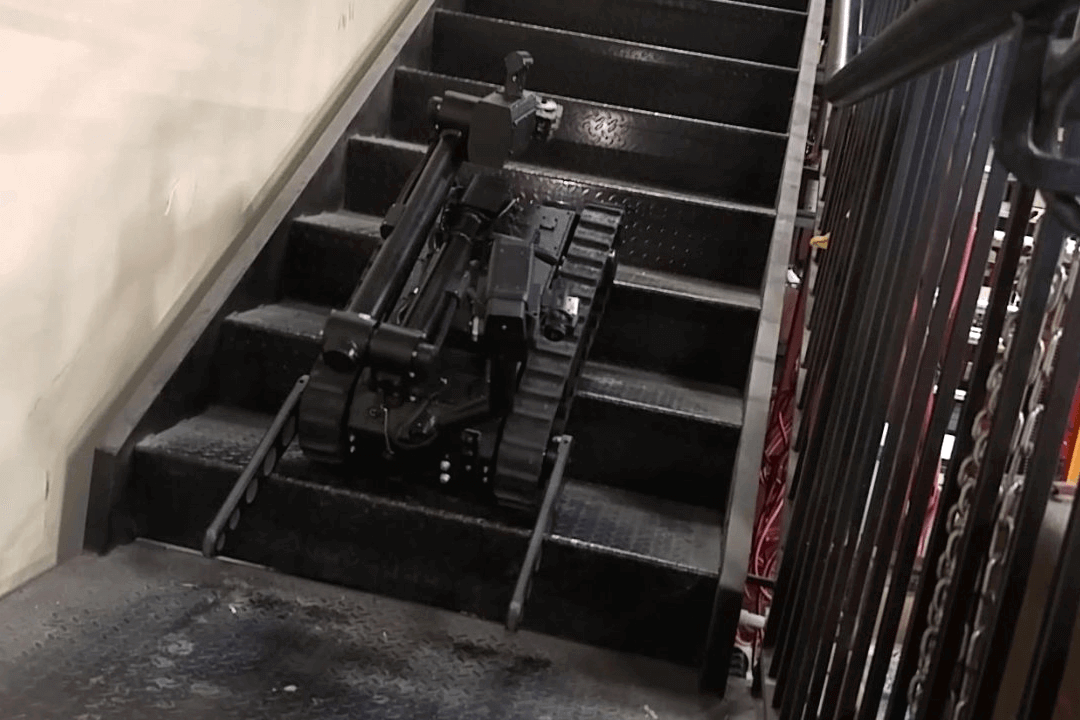

Overcome Stairs & Obstacles
Robot Features
Click or hover over the hotspots to discover the unique features our robot has to offer.

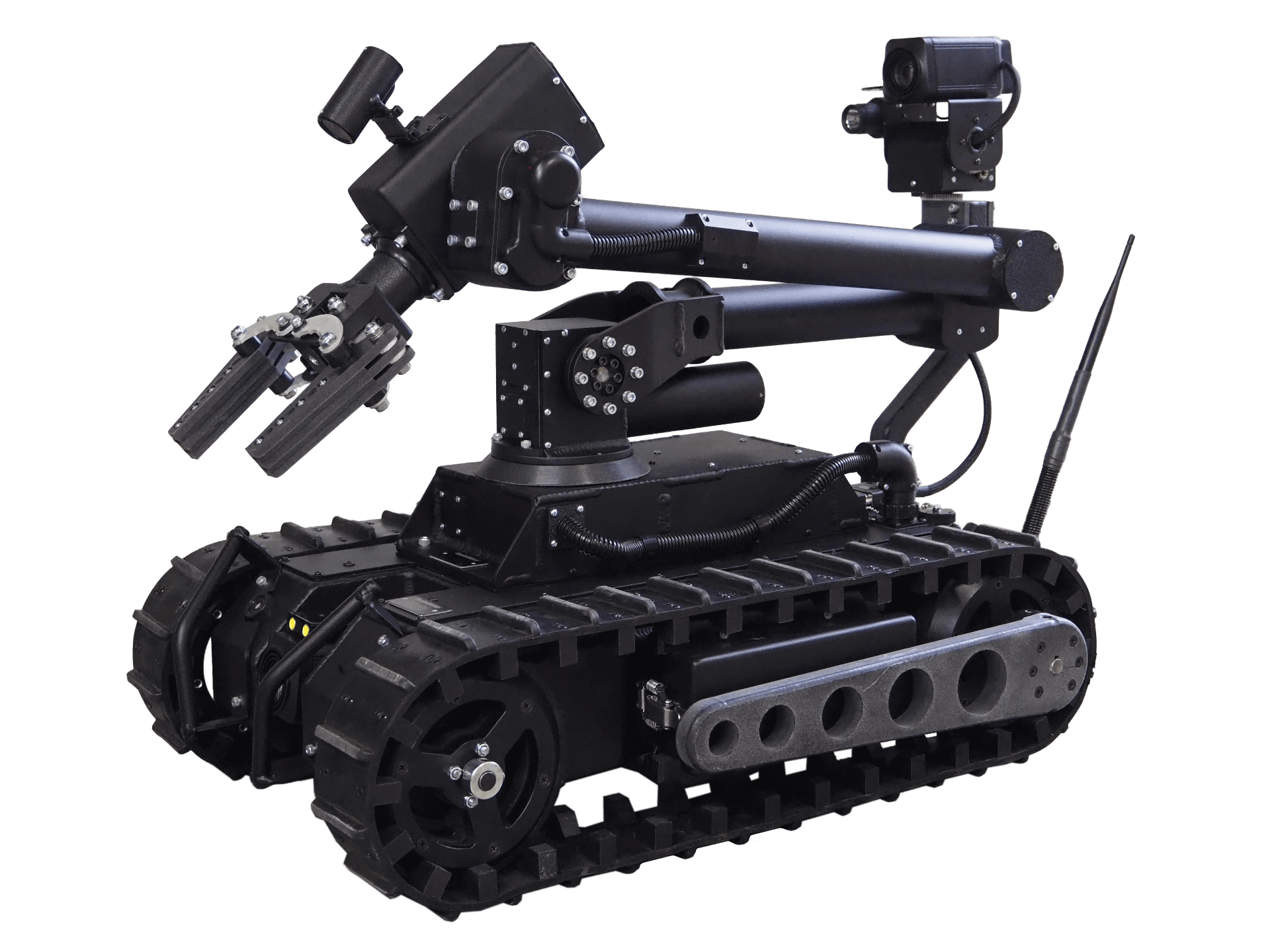

![Bulldog in parked mode](https://www.superdroidrobots.com/wp-content/uploads/2024/01/Bulldog-e1705951703125.png)
Adaptive IR Camera
Powder Coated Chassis
Resists Wear and Tear
Tracks for Outdoor Terrain

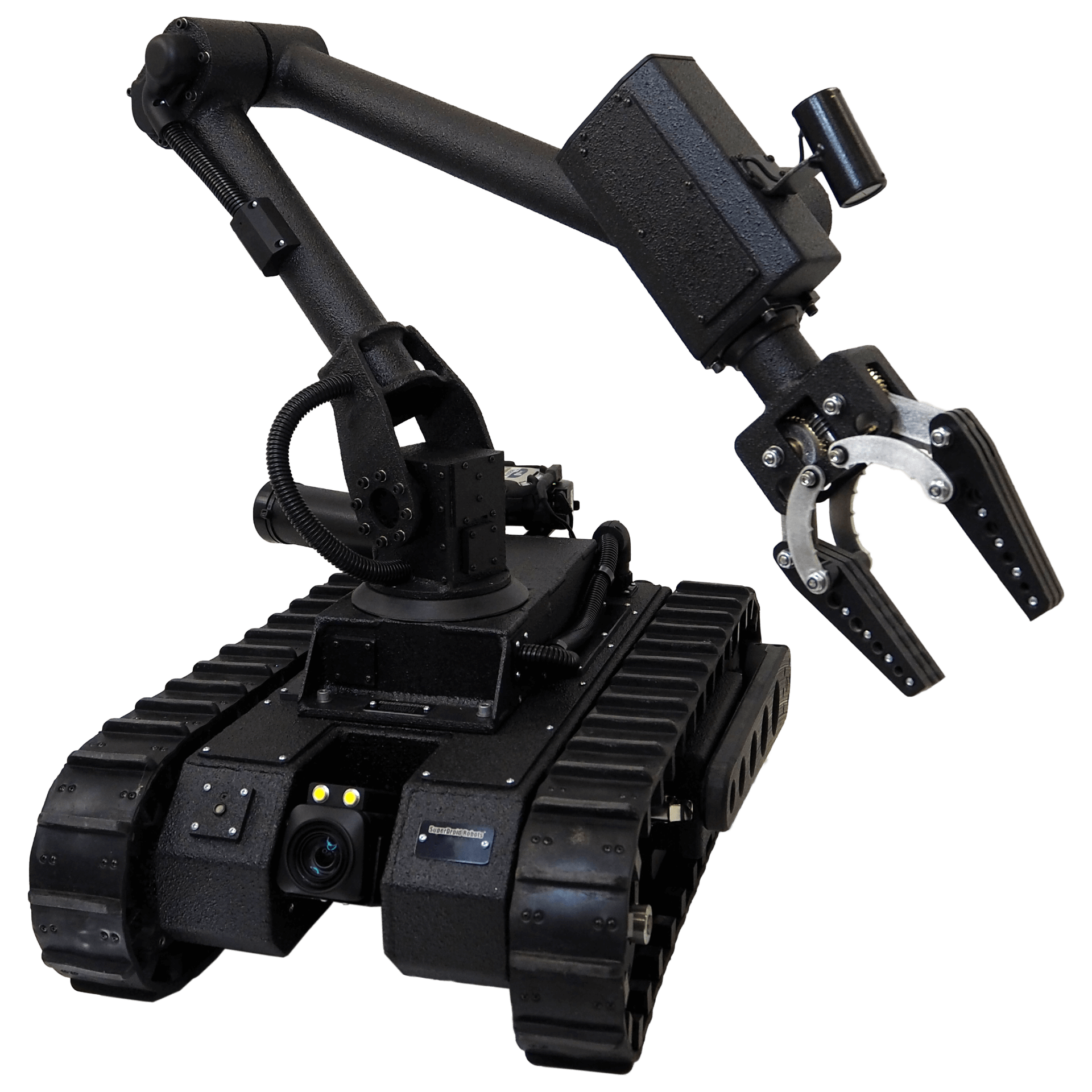

Multi-axis Arm

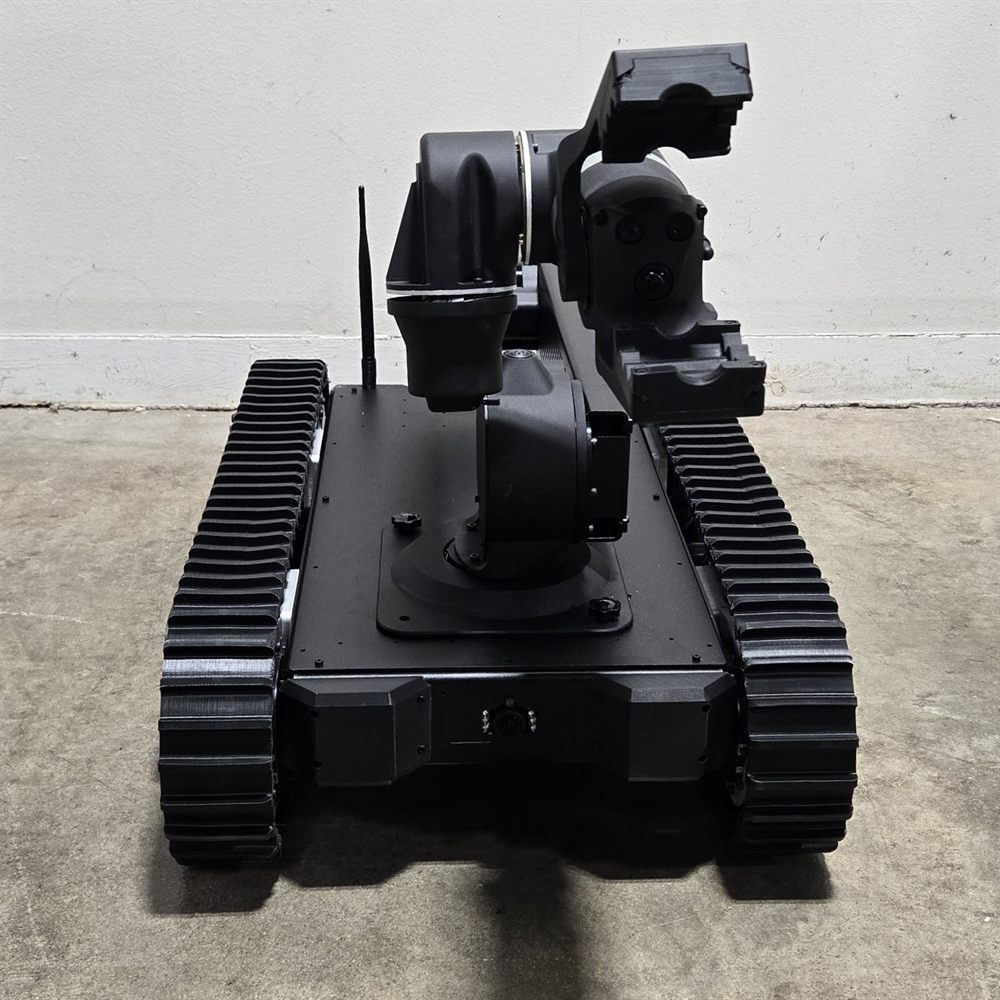

20x Zoom/Pan/Tilt IR Camera
Flipper Arms
2-Way Audio Communication

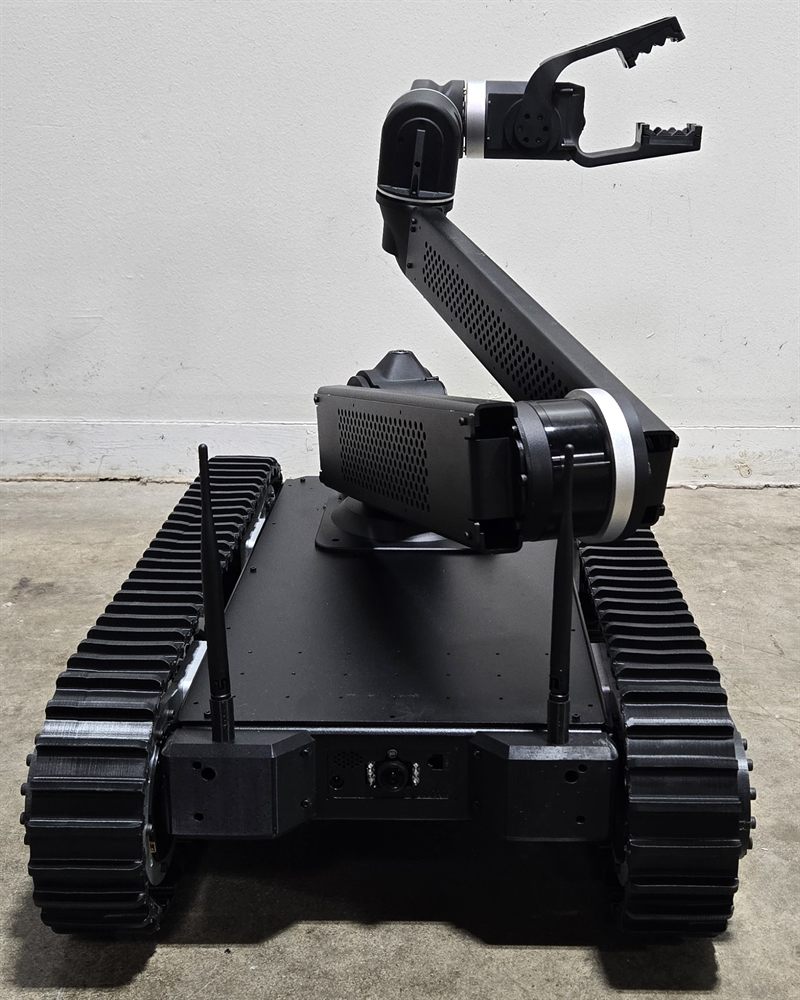

Rear Drive Camera
LT2-F Bulldog Media Gallery
Documentation + Support
- These robots are built to order and can have a lead time of up to 14-16 weeks.
- Contact us if you need expedited delivery.
- SuperDroid Robots provides a 90-day warranty after shipment.
- Extended multi-year warranties, spare parts, and maintenance training are available, contact us with specific needs. Service agreements are also available.
Explore Your Options
Select the plan the best meets your needs below and we will provide a detailed quotation. All the plans can be customized by selecting different options. The quote form provides you with the ability to comment and add any additional features such as HAZMAT sensors, secondary monitoring stations/repeaters, tethered control, etc.
Basic
- 6-Axis Arm
- 4.5 Inch Gripper
- 180° Shoulder
- 270° Elbow
- Continuous Wrist Rotation
- 160° Wrist Tilt
- 315° Rotating Base
- Weatherproof Treaded Chassis
- Flipper Arms
- Digital Radio in Standard Enclosed Case
- Video and Image Recording
- Splitscreen Quad-view Camera Display
- Automatic Battery Charging System
- Easy to Remove and Swap Batteries
- 30x Optical Zoom Camera
- Powerful LED Lights
- Forearm IR Camera
- Rearview IR Camera
- 2-Way Audio System
- Kinematic Display of Robot and Multi-Axis Arm
- Removable Rear Mast Mounted 30x PTZ Camera
- EOD Ready with Carbon Fire 10 Disruptor Mount
- External Ethernet Jack for Tether Operation
- Foam Lined Transportation Case
Standard
- 6-Axis Arm
- 4.5 Inch Gripper
- 180° Shoulder
- 270° Elbow
- Continuous Wrist Rotation
- 160° Wrist Tilt
- 315° Rotating Base
- Weatherproof Treaded Chassis
- Flipper Arms
- Digital Radio in Standard Enclosed Case
- Video and Image Recording
- Splitscreen Quad-view Camera Display
- Automatic Battery Charging System
- Easy to Remove and Swap Batteries
- 30x Optical Zoom Tilt Camera
- Powerful LED Lights
- Forearm IR Camera
- Rearview IR Camera
- 2-Way Audio System
- Kinematic Display of Robot and Multi-Axis Arm
- Removable Rear Mast Mounted 30x PTZ Camera
- EOD Ready with Carbon Fire 10 Disruptor Mount
- External Ethernet Jack for Tether Operation
- Foam Lined Transportation Case
Advanced
- 6-Axis Arm
- 4.5 Inch Gripper
- 180° Shoulder
- 270° Elbow
- Continuous Wrist Rotation
- 160° Wrist Tilt
- 315° Rotating Base
- Weatherproof Treaded Chassis
- Flipper Arms
- Digital Radio in Standard Enclosed Case
- Video and Image Recording
- Splitscreen Quad-view Camera Display
- Automatic Battery Charging System
- Easy to Remove and Swap Batteries
- 30x Optical Zoom Tilt Camera
- Powerful LED Lights
- Forearm IR Camera
- Rearview IR Camera
- 2-Way Audio System
- Kinematic Display of Robot and Multi-Axis Arm
- Removable Rear Mast Mounted 30x PTZ Camera
- EOD Ready with Carbon Fire 10 Disruptor Mount
- External Ethernet Jack for Tether Operation
- Foam Lined Transportation Case
