Tech Thursday #019: A Fun Tracked Robot with a Arduino

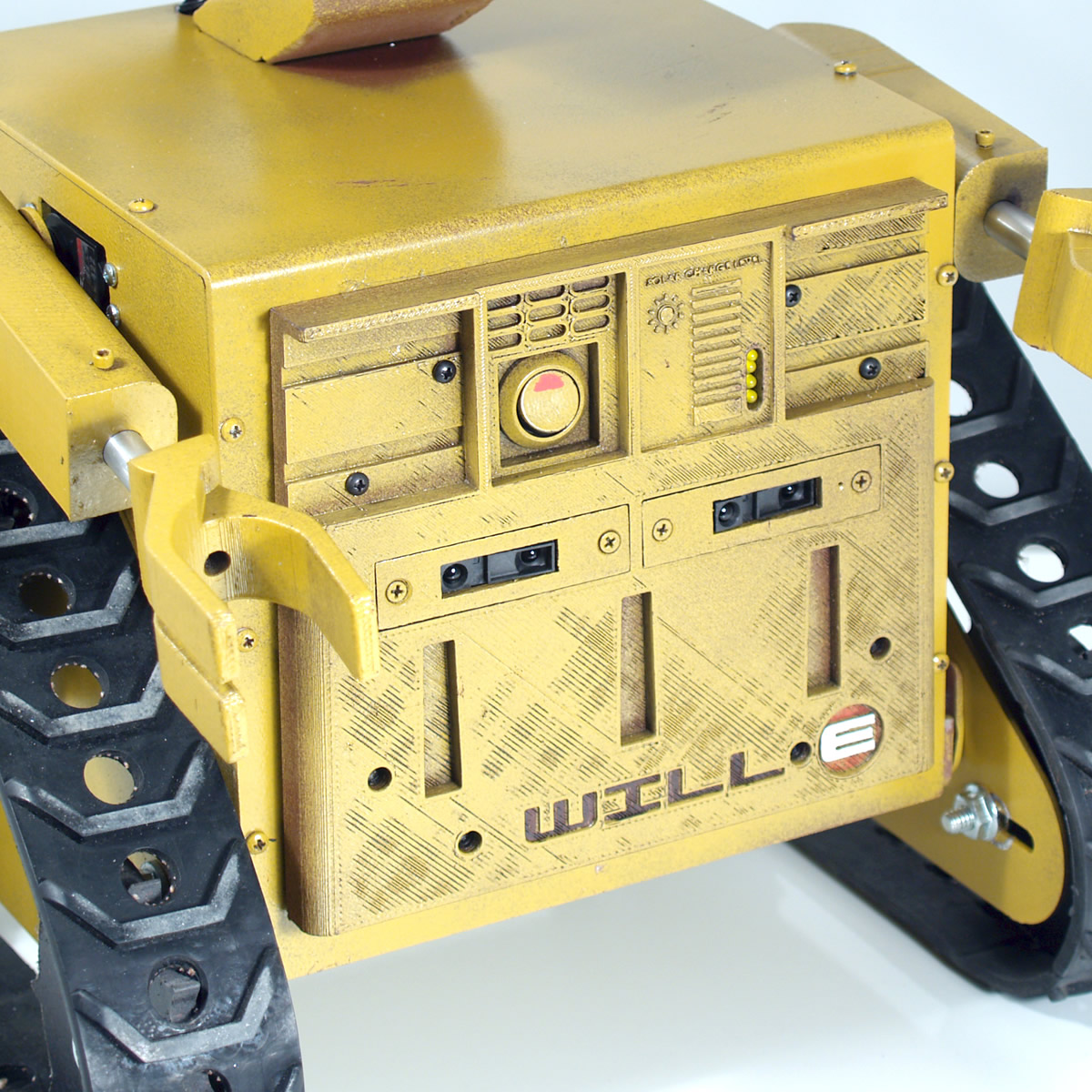

We had fun building this robot. He may look familiar… We started with MLT-JR custom length tracks and added a simple shell and head. The motors are driven with a Sabertooth 2×5 Motor Controller. All the parts (other than the drive train) were made with our 3D printers. Then we gave it a quick paint job. We embedded two IR sensors on the front and put a Arduino in the middle cavity to drive him around and a Pololu 12 channel Maestro to move the servos to control his head, eyes, and arms. Its powered by a 11.1V lithium battery.

Check out the video of Will-E driving around

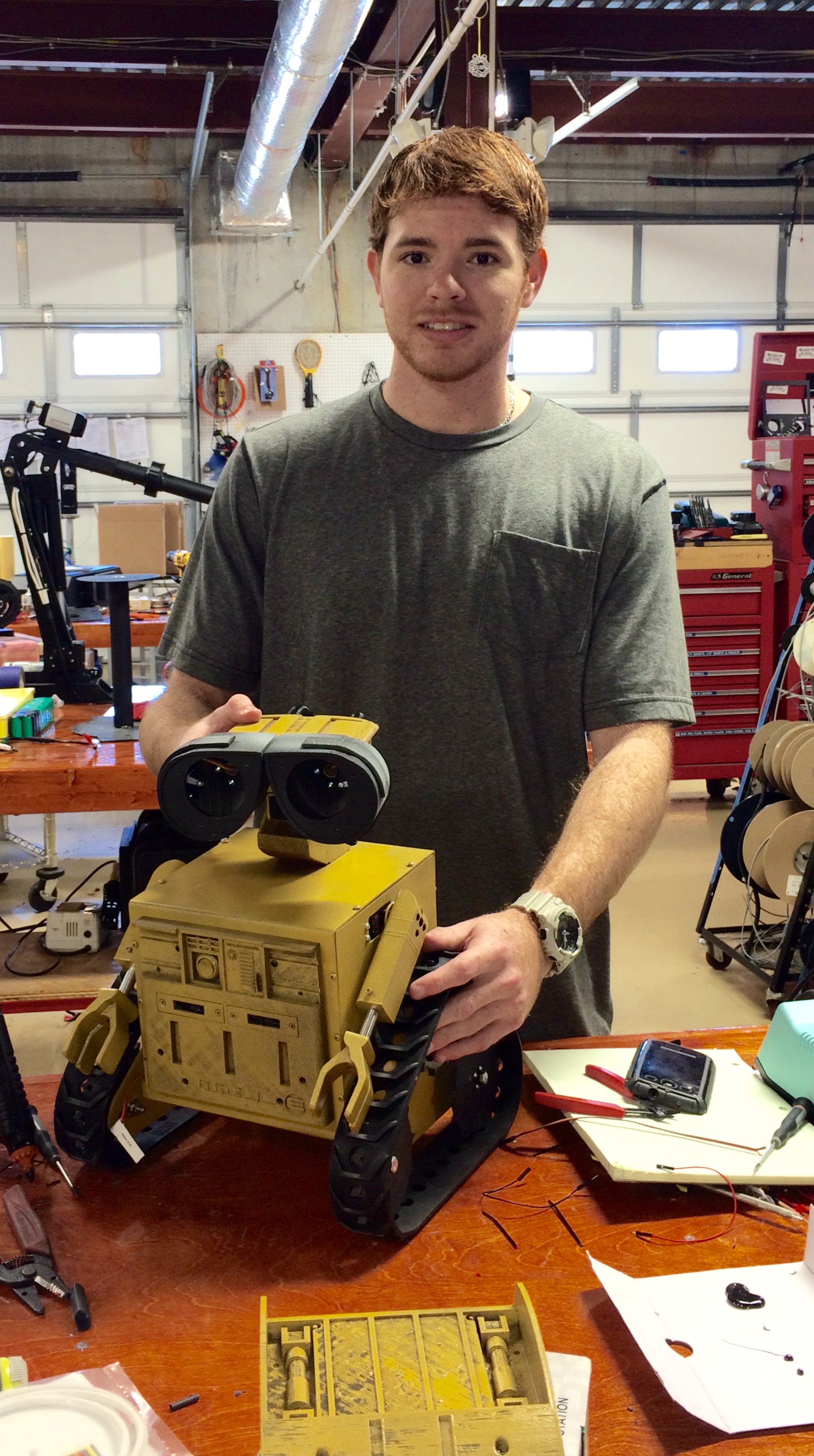

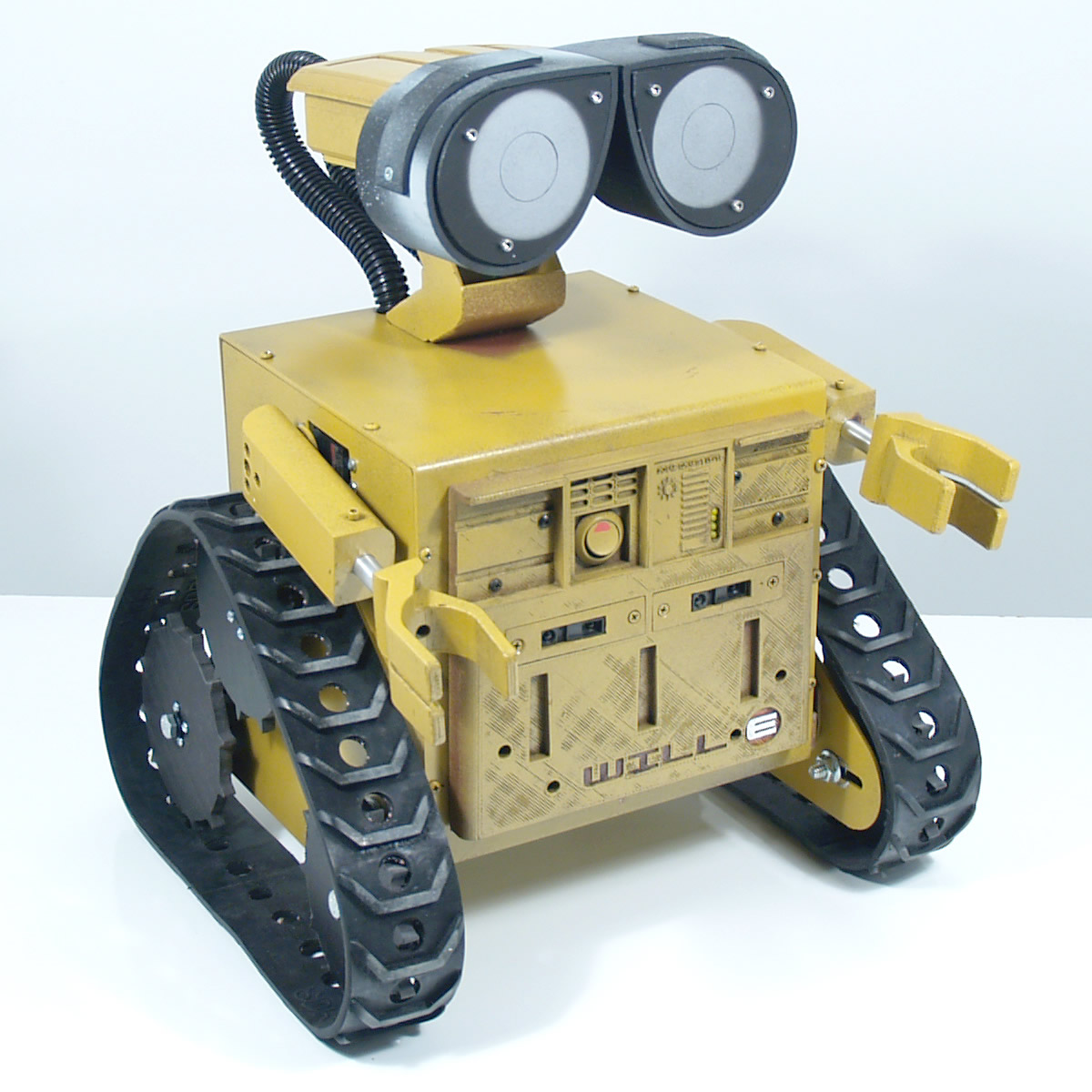

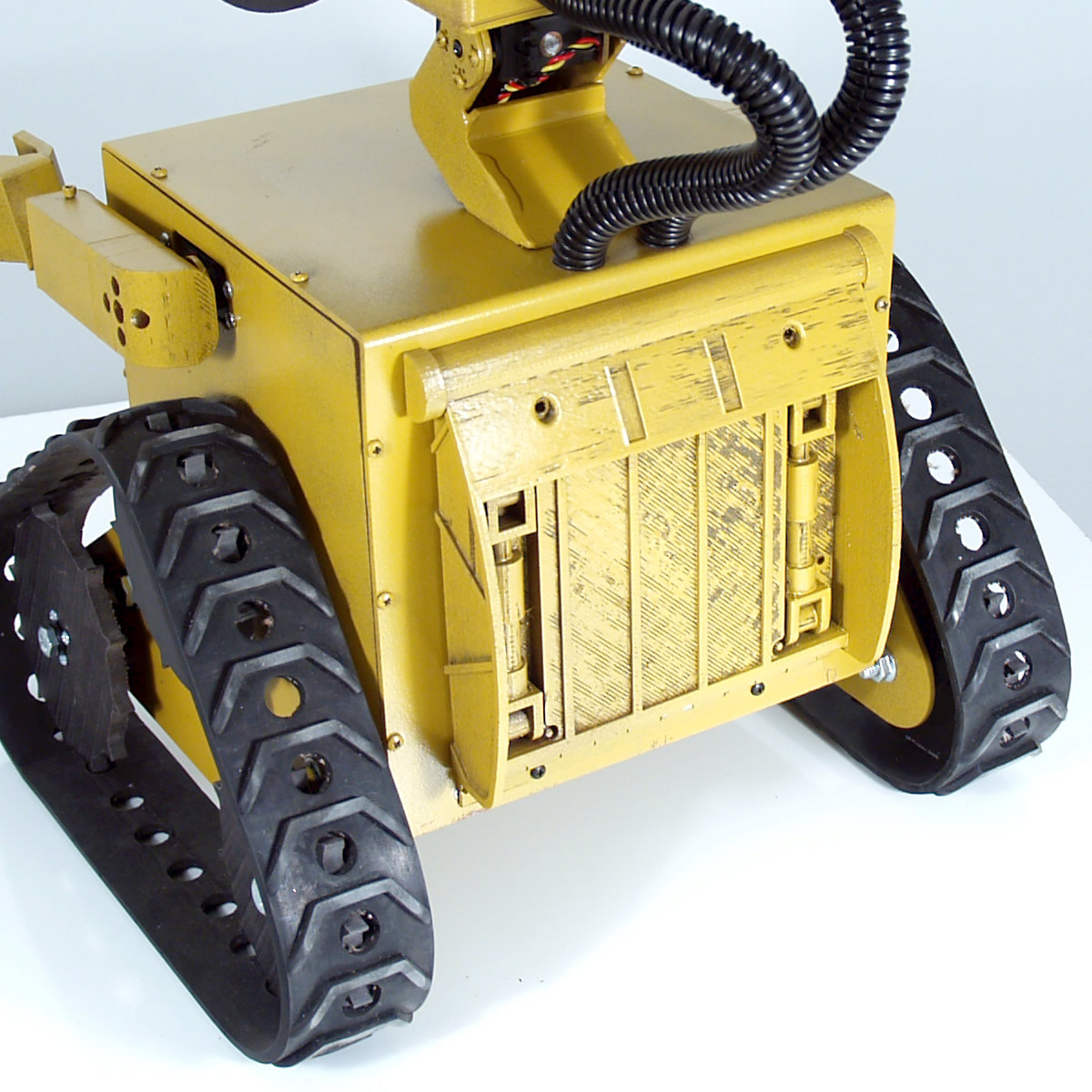

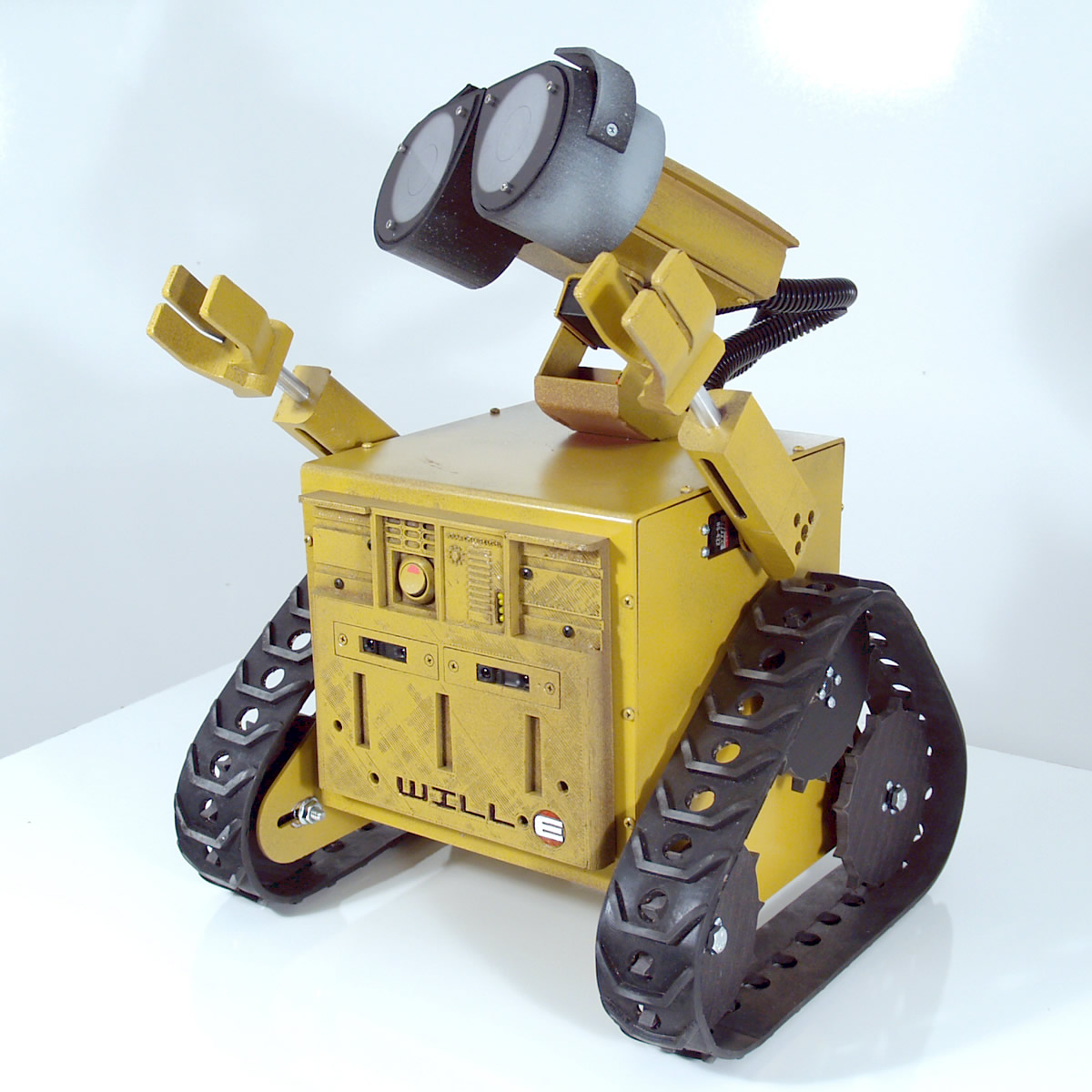

Some Pictures…

The Arduino Code

// **************************************************************************************
//  Name                : willie.ino
//  Author		: Jason Traud
//  Notice		: Copyright (c) 2015 SuperDroid Robots
//                      : All Rights Reserved
//  Date		: March 31, 2015
//
//  Arduino		: Arduino Uno R3
//	Shield(s)       : None
//	Sensors         : 2x Sharp IR Sensors (10cm-80cm)
//  Motor Controller    : Sabertooth 2x5
//
//  Notes               : This firmware runs an automated routine with the Will-E
//                        robot. After the robot wakes up it will demonstrate basic
//                        object avoidance by backing away from the detected object
//                        turning, and trying again.
//
// **************************************************************************************

// **************************************************************************************
// Pololu Maestro Connections
//   Servo # | Body Part
//      0    | Left Arm
//      1    | Right Arm
//      2    | Head Pan
//      3    | Head Tilt
//      4    | Left Eye
//      5    | Right Eye
//
//   WARNING: Do not command the left eye servo above 1500 or the right eye servo below
//            1500. This is below the closed point and may damage either the servo or
//            the eye peice.
//
// **************************************************************************************

// Libraries
#include         // Used for Maestro and Sabertooth COms
//#include           // Drive Motor Controller
#include   // Switched to Simplified Library due to issue with Sabertooth 2x5
#include          // Pololu Maestro Servo Controller

// Hardware Pins
#define SAB_ESTOP 3   // Emergency stop pin on the Sabertooth (not used in simplified mode)

#define LED_ONE 13    // LEDs on the robot's chest
#define LED_TWO 12
#define LED_THREE 11
#define LED_FOUR 10

// Servo IDs on the Pololu Maestro
#define LEFT_ARM 0
#define RIGHT_ARM 1
#define HEAD_PAN 2
#define HEAD_TILT 3
#define LEFT_EYE 4
#define RIGHT_EYE 5

// Servo positions (in quarter microseconds)
#define ARM_HORIZON 6000    // 1500 * 4 = 6000
#define LEFT_ARM_UP 8000    // 2000 * 4 = 8000
#define LEFT_ARM_DOWN 5120  // 1280 * 4 = 5120
#define RIGHT_ARM_UP 4000   // 1000 * 4 = 4000
#define RIGHT_ARM_DOWN 3880 // 1720 * 4 = 6880

#define HEAD_CENTER 6000    // 1500 * 4 = 6000
#define HEAD_LEFT 4000      // 1000 * 4 = 4000
#define HEAD_RIGHT 8000     // 2000 * 4 = 8000
#define HEAD_DOWN 6960      // 1740 * 4 = 6960
#define HEAD_UP 4880        // 1220 * 4 = 4880

#define LEFT_EYE_CLOSED 5600  // 1400 * 4 = 5600
#define LEFT_EYE_OPEN 4000    // 1000 * 4 = 4000
#define RIGHT_EYE_CLOSED 6400 // 1600 * 4 = 6000
#define RIGHT_EYE_OPEN 8000   // 2000 * 4 = 8000

// State Machine
#define SENSOR_THRESHOLD 200

// Sabertooth Motor Controller (Drive)
SoftwareSerial SabSerial = SoftwareSerial(NOT_A_PIN, 2); // Serial Tx is on pin 2, scrap the Rx pin
//Sabertooth ST(128, SabSerial);
SabertoothSimplified ST(SabSerial);

// Maestro
SoftwareSerial maestroSerial(5, 4);
MiniMaestro maestro(maestroSerial);

// **************************************************
// FUNCTION:    bootLEDs()
// DESCRIPTION: Show power levels coming online...
// RETURNS:     none
// **************************************************
void bootLEDs() {
  digitalWrite(LED_ONE, HIGH);
  delay(250);
  digitalWrite(LED_TWO, HIGH);
  delay(150);
  digitalWrite(LED_THREE, HIGH);
  delay(50);
  digitalWrite(LED_FOUR, HIGH);
}

// **************************************************
// FUNCTION:    initialPositionServos()
// DESCRIPTION: Positions the robot as if it were "asleep"
// RETURNS:     none
// **************************************************
void initialPositionServos() {
  delay(100);
  maestro.setTarget(LEFT_ARM, LEFT_ARM_DOWN); delay(100);
  maestro.setTarget(RIGHT_ARM, RIGHT_ARM_DOWN); delay(100);
  maestro.setTarget(HEAD_PAN, HEAD_CENTER); delay(100);
  maestro.setTarget(HEAD_TILT, HEAD_DOWN); delay(100);
  maestro.setTarget(LEFT_EYE, LEFT_EYE_CLOSED); delay(100);
  maestro.setTarget(RIGHT_EYE, RIGHT_EYE_CLOSED); delay(100);
}

// **************************************************
// FUNCTION:    homeServos()
// DESCRIPTION: Positions the robot to patrol
// RETURNS:     none
// **************************************************
void homeServos() {
  delay(100);
  maestro.setTarget(LEFT_ARM, ARM_HORIZON); delay(100);
  maestro.setTarget(RIGHT_ARM, ARM_HORIZON); delay(100);
  maestro.setTarget(HEAD_PAN, HEAD_CENTER); delay(100);
  maestro.setTarget(HEAD_TILT, HEAD_CENTER); delay(100);
  maestro.setTarget(LEFT_EYE, LEFT_EYE_CLOSED); delay(100);
  maestro.setTarget(RIGHT_EYE, RIGHT_EYE_CLOSED); delay(100);
}

// **************************************************
// FUNCTION:    flail()
// DESCRIPTION: Shows the robot "panicing"
// RETURNS:     none
// **************************************************
void flail() {
  maestro.setTarget(LEFT_ARM, LEFT_ARM_UP);        // Raise arms
  maestro.setTarget(RIGHT_ARM, RIGHT_ARM_UP);      //
  maestro.setTarget(HEAD_PAN, 7200);               // scew head to the right
  maestro.setTarget(HEAD_TILT, HEAD_UP);           //
  maestro.setTarget(LEFT_EYE, LEFT_EYE_OPEN);      // Raise eyebrows
  maestro.setTarget(RIGHT_EYE, RIGHT_EYE_OPEN);    //
}

// **************************************************
// FUNCTION:    bootServos()
// DESCRIPTION: Shows the robot "waking up"
// RETURNS:     none
// **************************************************
void bootServos() {

  // Position Arms
  maestro.setTarget(LEFT_ARM, ARM_HORIZON);
  delay(250);
  maestro.setTarget(RIGHT_ARM, ARM_HORIZON);
  delay(250);

  // Raise Head
  maestro.setTarget(HEAD_PAN, HEAD_CENTER);
  maestro.setTarget(HEAD_TILT, HEAD_CENTER);
  delay(350);

  // Wink
  maestro.setTarget(LEFT_EYE, LEFT_EYE_OPEN);
  delay(750);
  maestro.setTarget(RIGHT_EYE, RIGHT_EYE_OPEN);
  delay(500);

  maestro.setTarget(LEFT_EYE, LEFT_EYE_CLOSED);
  maestro.setTarget(RIGHT_EYE, RIGHT_EYE_CLOSED);
  delay(250);

  maestro.setTarget(LEFT_EYE, LEFT_EYE_OPEN);
  maestro.setTarget(RIGHT_EYE, RIGHT_EYE_OPEN);
  delay(250);

  maestro.setTarget(LEFT_EYE, LEFT_EYE_CLOSED);
  maestro.setTarget(RIGHT_EYE, RIGHT_EYE_CLOSED);
  delay(250);
}

// **************************************************
// FUNCTION:    setup()
// DESCRIPTION: Initial setup rountine. Sets our I/O, serial COMs, and modules
// RETURNS:     none
// **************************************************
void setup() {

  // Initialize our Serial coms
  Serial.begin(9600);
  maestroSerial.begin(9600);
  SabSerial.begin(2400);
  //delay(2000);     // Moved from packetized to simplified serial
  //ST.autobaud();   // the sabertooth 2x5 wasn't responding

  initialPositionServos();
  delay(2000);  // Let the sabertooth boot-up before we send data

  ST.drive(0);  // Send a stop command to the motor controller
  ST.turn(0);

  // Set our I/O pins
  pinMode(SAB_ESTOP, OUTPUT);
  pinMode(LED_ONE, OUTPUT);
  pinMode(LED_TWO, OUTPUT);
  pinMode(LED_THREE, OUTPUT);
  pinMode(LED_FOUR, OUTPUT);

  // Initialize our output pin states
  digitalWrite(SAB_ESTOP, HIGH);  // A high is a release, grounding it stops
  digitalWrite(LED_ONE, LOW);
  digitalWrite(LED_TWO, LOW);
  digitalWrite(LED_THREE, LOW);
  digitalWrite(LED_FOUR, LOW);

  bootLEDs();
  bootServos();
}

// **************************************************
// FUNCTION:    loop()
// DESCRIPTION: Main program loop
// RETURNS:     none
// **************************************************
void loop() {
  int power;
  int sensorValue1;
  int sensorValue2;
  int sensorMax;

  sensorValue1 = analogRead(A0);
  sensorValue2 = analogRead(A1);
  sensorMax = max(sensorValue1, sensorValue2);

  Serial.print("[AN0=");
  Serial.print(sensorValue1);
  Serial.print("][AN1=");
  Serial.print(sensorValue2);
  Serial.println("]");

  // If our reading is above the threshold, back up, flail, and turn
  if(sensorMax > SENSOR_THRESHOLD) {

    // Stop and wait
    ST.motor(1,0);
    ST.motor(2,0);
    flail();
    delay(500);

    // Backup
    ST.motor(1,-127);
    ST.motor(2,-127);
    delay(750);

    // Stop and wait
    ST.motor(1,0);
    ST.motor(2,0);
    delay(250);

    // Turn
    ST.motor(1,127);
    ST.motor(2,-127);
    delay(1250);

    // Stop and wait
    ST.motor(1,0);
    ST.motor(2,0);
    delay(250);

    homeServos();
    //delay(250);
  }

  // Continue roaming
  ST.motor(1,100);
  ST.motor(2,100);
  delay(500);

}
