 Compact ATR Aluminum Base
Item Details

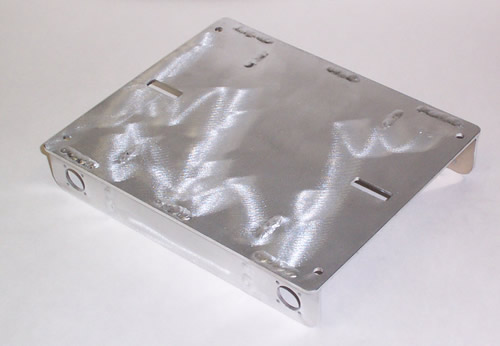

Compact ATR Aluminum Base
Item Name:
Compact ATR Aluminum Base
Item #:
TD-030-000
Your Price:
$45.00
Built to Order: 1-3 Days
Quantity:

Description:

These chassis' are designed and fabricated in North Carolina USA and fully supported by SuperDroid Robots, an industry leader in robotics. This is a CNC cut chassis and accepts our IG32 and IG32P gear motors. The chassis is made from 3/32" thick aluminum and is cut on our CNC plasma table and bent on our CNC break press.

Features and Specifications:

  • 4WD Chassis CNC cut and bent
  • (Qty 16) M3 screws for mounting any four IG32 gear motors (gear motors not included).
  • Base - 8.5" wide x 10" long
  • Sides - 1.75" high (bottom edge to top surface)
  • Weight: 1lb 3oz

The base is 10" x 8.5". The sides are 1.75" high (bottom edge to top surface). It weighs 1lb 3oz. The sides are stepped in 1/4". When used with the 4" Shaft and wheel sets it has a ground clearance of about 1 1/4". The width with the wheels is about 14.5" and the length is about 12.5". If the top platform is used the overall height works out to be about 5.75".


 This is a rugged aluminum chassis to accept our IG32 and IG32P gear motors. The aluminum is all CNC cut and CNC Beat for an exact fit-up.
